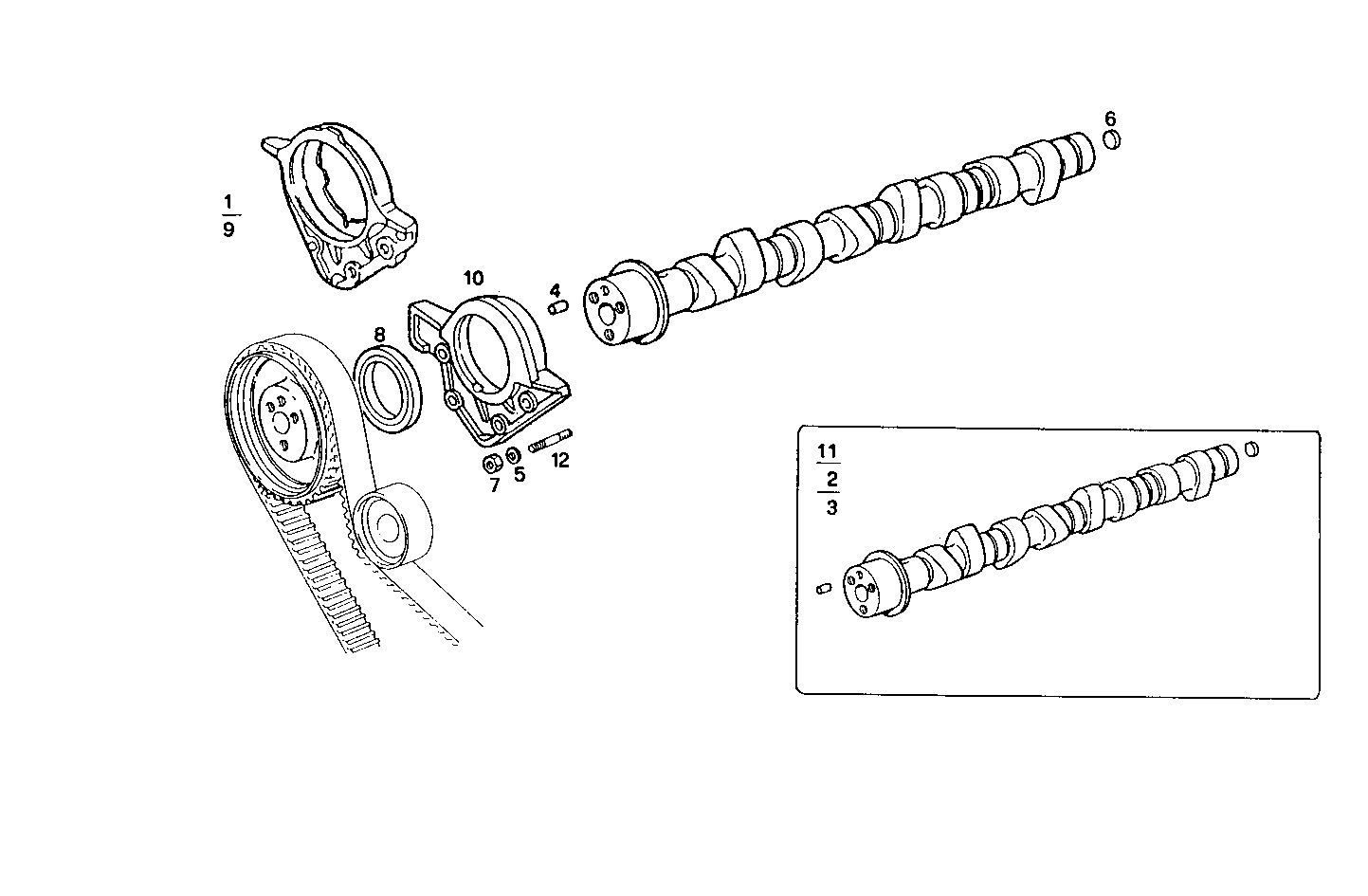

1250.043/01 TIMING PARTS

Iveco/FPT TIMING PARTS

Item Part number Description
1 7302970 COVER [up to 1614116]
2 98427672 CAMSHAFT ASSY [from 1359375]
3 98466481 CAMSHAFT ASSY +0,2 MM [from 1359375]
4 10839610 DOWEL PIN Ø8 MM
5 17088474 WASHER Ø6X12 MM
6 14328301 LOCK PLUG Ø12 MM
7 17037821 HEXAGON NUT M6X1
8 40100334 SHAFT SEAL Ø55X70 MM SP=8 MM
9 98453822 COVER [up to 1715309]
10 98472303 COVER [from 1815310]
11 4837140 CAMSHAFT ASSY [up to 1359374]
12 16745124 STUD M6X25 MM
