8141i07.01

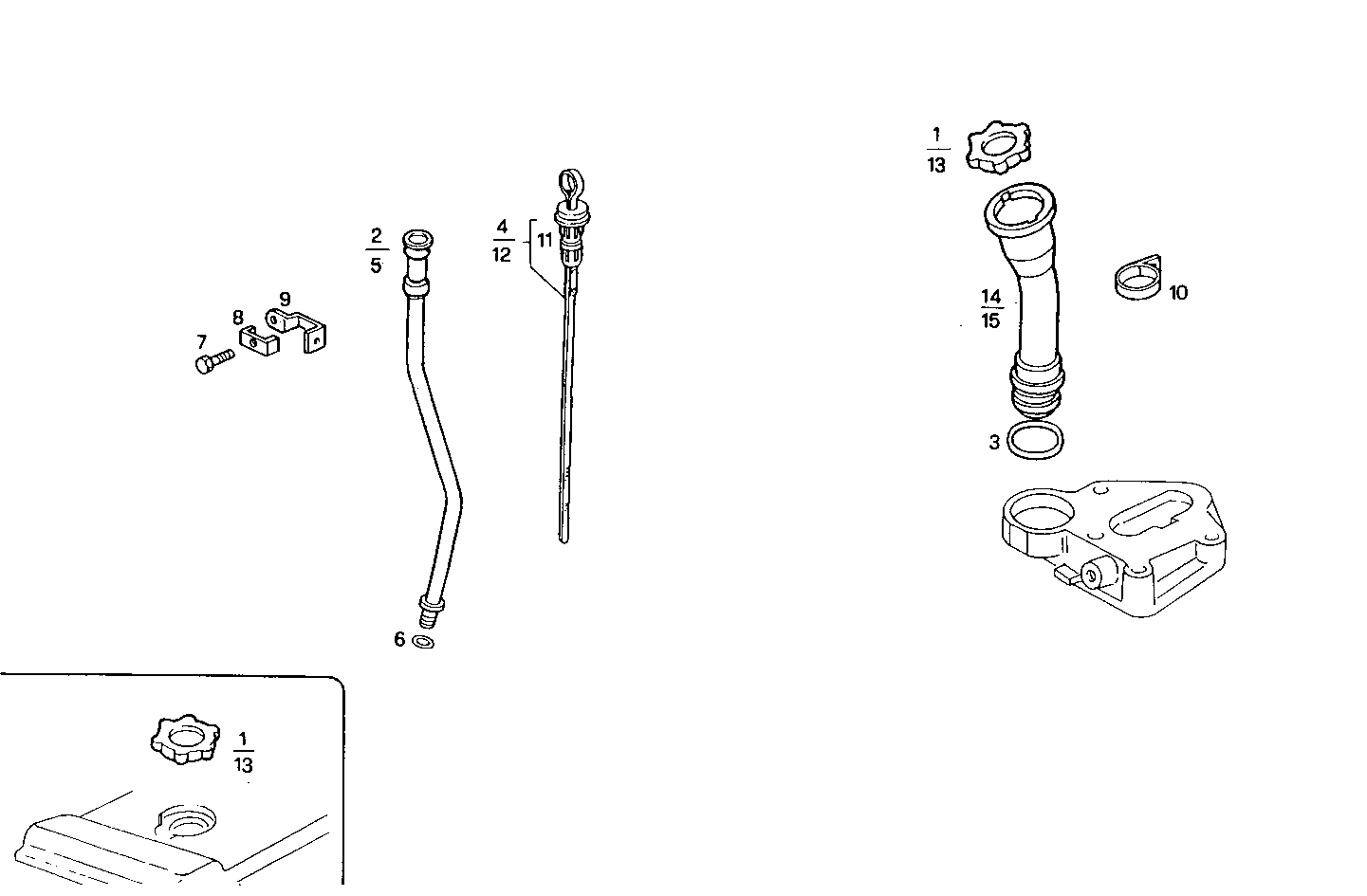

2710.049 OIL DIPSTICK

Iveco/FPT OIL DIPSTICK

Item Part number Description
1 500301568 OIL FILLER PLUG ASSY
2 4864682 OIL LEVEL TUBE [from 1134751]
3 14458181 O-RING Ø29,82 MM SP=2,62 MM
4 7303007 OIL DIPSTICK ASSY [up to 1134750]
5 7302234 OIL LEVEL TUBE [up to 1134750]
6 11452980 WASHER
7 16043421 HEXAGON BOLT M8X20 MM
8 4716870 RETAINER
9 7302237 RETAINER
10 4837154 RETAINER
11 4102056 RUBBER GASKET
12 4864683 OIL DIPSTICK [from 1134751]
13 98418980 OIL FILLER PLUG ASSY
14 4837150 OIL FILLER PIPE [up to 1820767]
15 98476185 OIL FILLER PIPE [from 1820268]
