8141i07.01

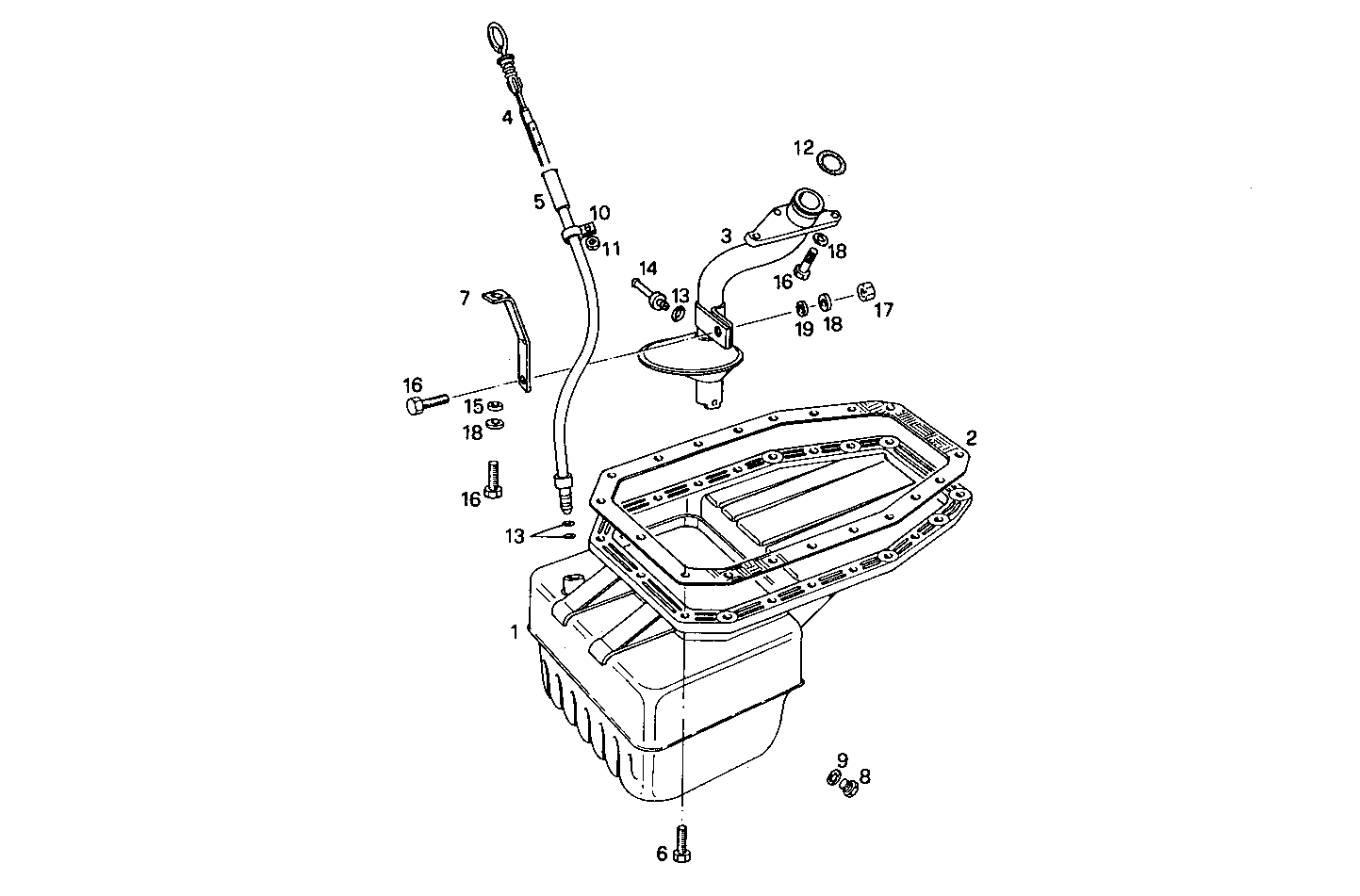

A01050009 OIL SUMP - max 45° with front weel

Iveco/FPT OIL SUMP

Item Part number Description
1 8007544 OIL SUMP ASSY
2 98427939 OIL SUMP GASKET
3 7300542 SUCTION STRAINER
4 7300433 OIL DIPSTICK ASSY
5 7300430 OIL LEVEL TUBE
6 16605624 HEXAGON BOLT M8X25 MM (8.8)
7 8019884 RETAINER
8 10305111 LOCK PLUG M22
9 10263460 WASHER Ø22X28X1,5 MM
10 17316690 FASTENING BRACKET Ø20,5 MM
11 16979431 NUT M8
12 17282221 O-RING
13 17277981 O-RING 1,78x9,25
14 8113956 OIL LINE
15 10519821 WASHER
16 16605524 HEXAGON BOLT M8X20 MM
17 17152821 NUT M8 [up to 555939]
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
