8141i67.01

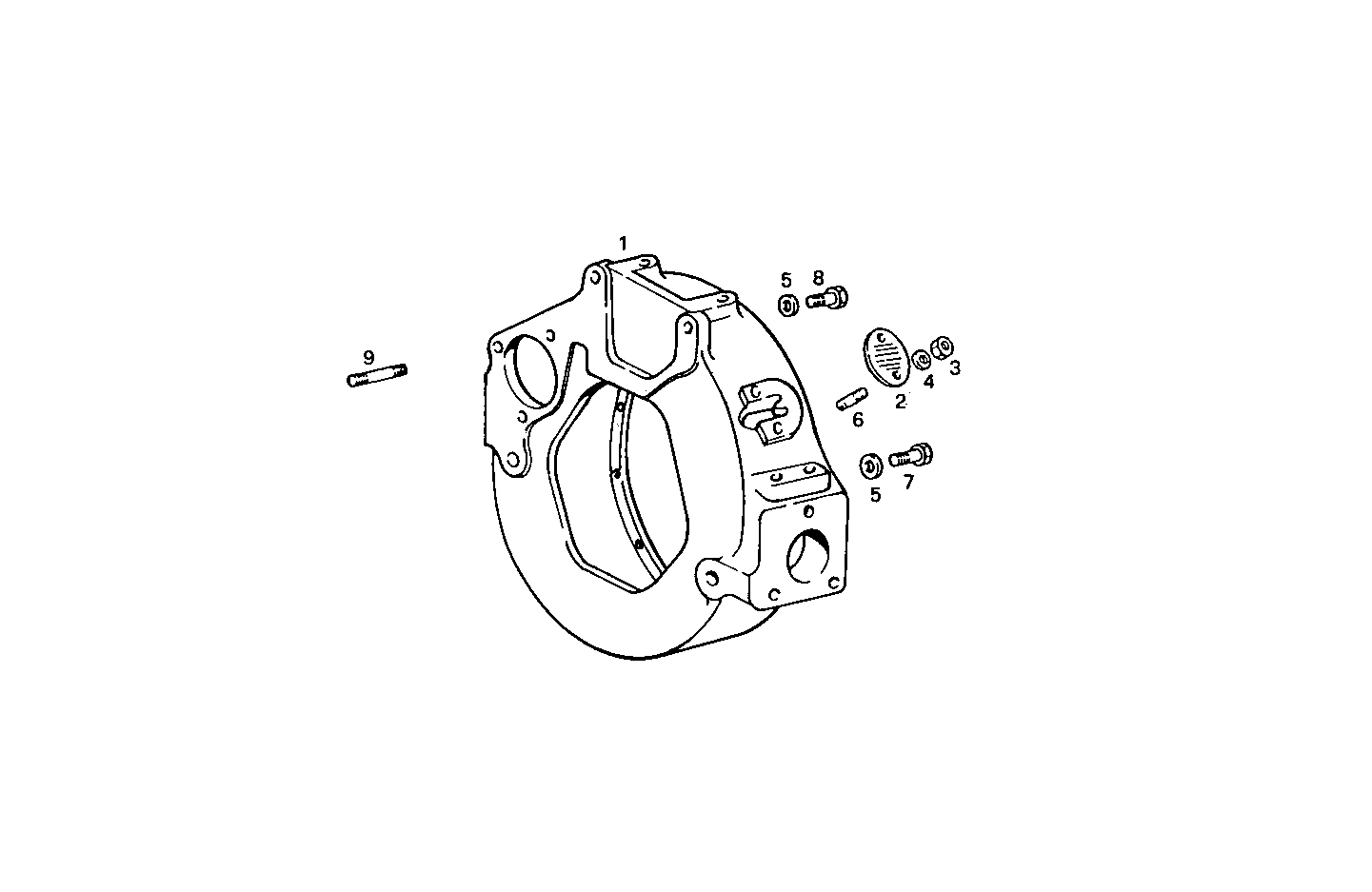

0430.114 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4934049 FLYWHEEL HOUSING
2 4540660 COVER
3 17037721 NUT M5X0,8
4 17094504 WASHER Ø5,3X10 MM
5 17091074 WASHER Ø12X24X2,8 MM
6 16743424 STUD M5X10X10
7 15540721 HEXAGON BOLT M12X45 MM
8 15541021 HEXAGON BOLT M12X1,25X60 MM
9 13546521 STUD M10X1,25X20X30 MM
