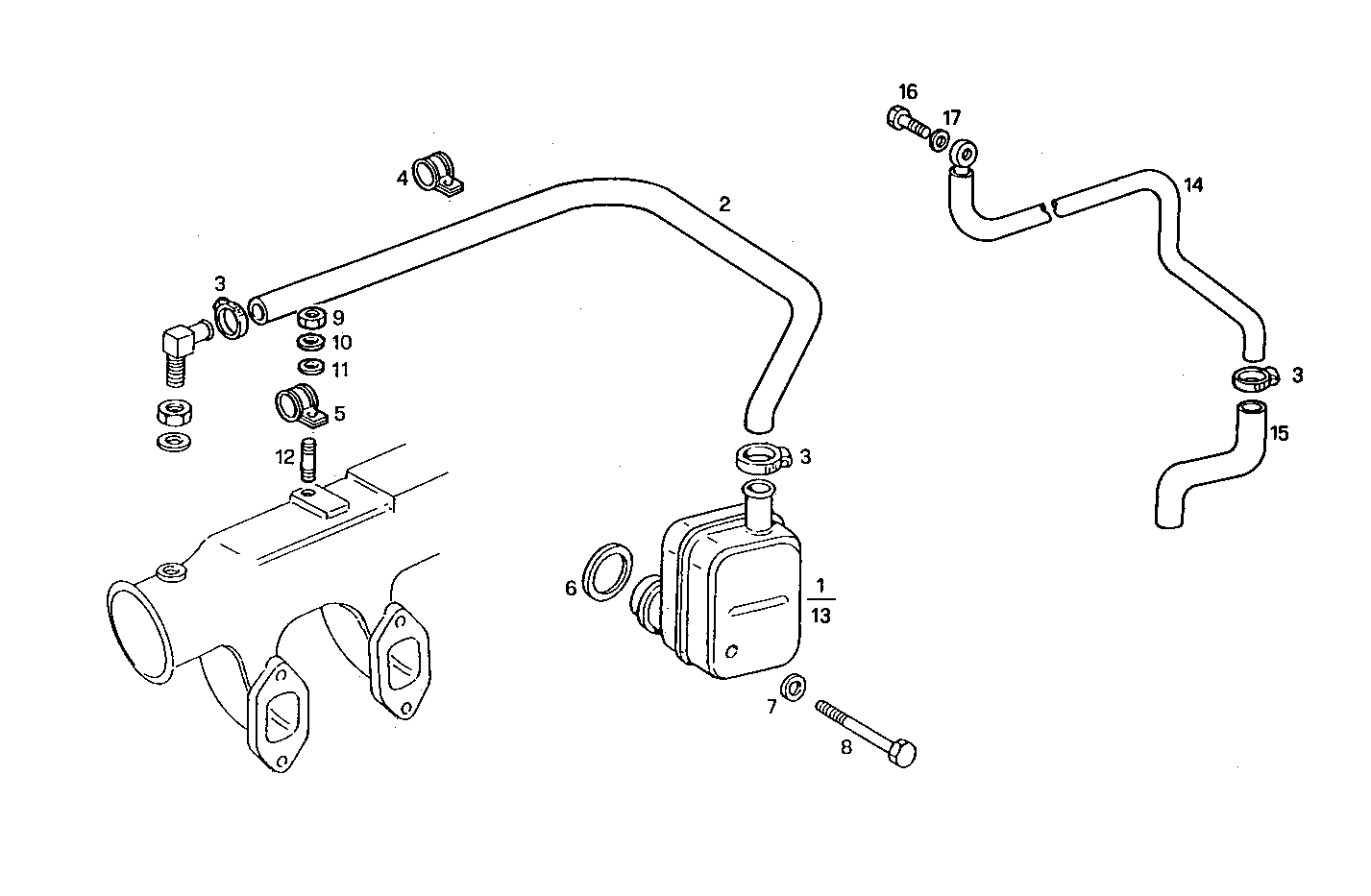

| Item |
Part number |
Description |
|
1 |
7301484 |
BREATHER |
|
2 |
8014770 |
OIL HOSE |
|
3 |
17764593 |
CLIP Ø20/32 MM |
|
4 |
7302252 |
FASTENING BRACKET |
|
5 |
7302256 |
RETAINER |
|
6 |
17289681 |
O-RING Ø44 MM SP=3,53 MM |
|
7 |
4760498 |
GASKET Ø8,65X14,35 MM |
|
8 |
16045324 |
SCREW |
|
9 |
15896221 |
HEXAGON NUT M6X1 |
|
10 |
11193874 |
WASHER Ø8X16 MM |
|
11 |
17798174 |
SPRING WASHER Ø6,1X11,8 MM |
|
12 |
11500221 |
STUD M6X9X16 MM |
|
13 |
99441839 |
BREATHER |
|
14 |
8105398 |
AIR HOSE [up to 1848055] |
|
15 |
8106654 |
RUBBER SLEEVE [up to 1848055] |
|
16 |
4864084 |
BANJO BOLT M16X1,5 |
|
17 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
