8141i67.01

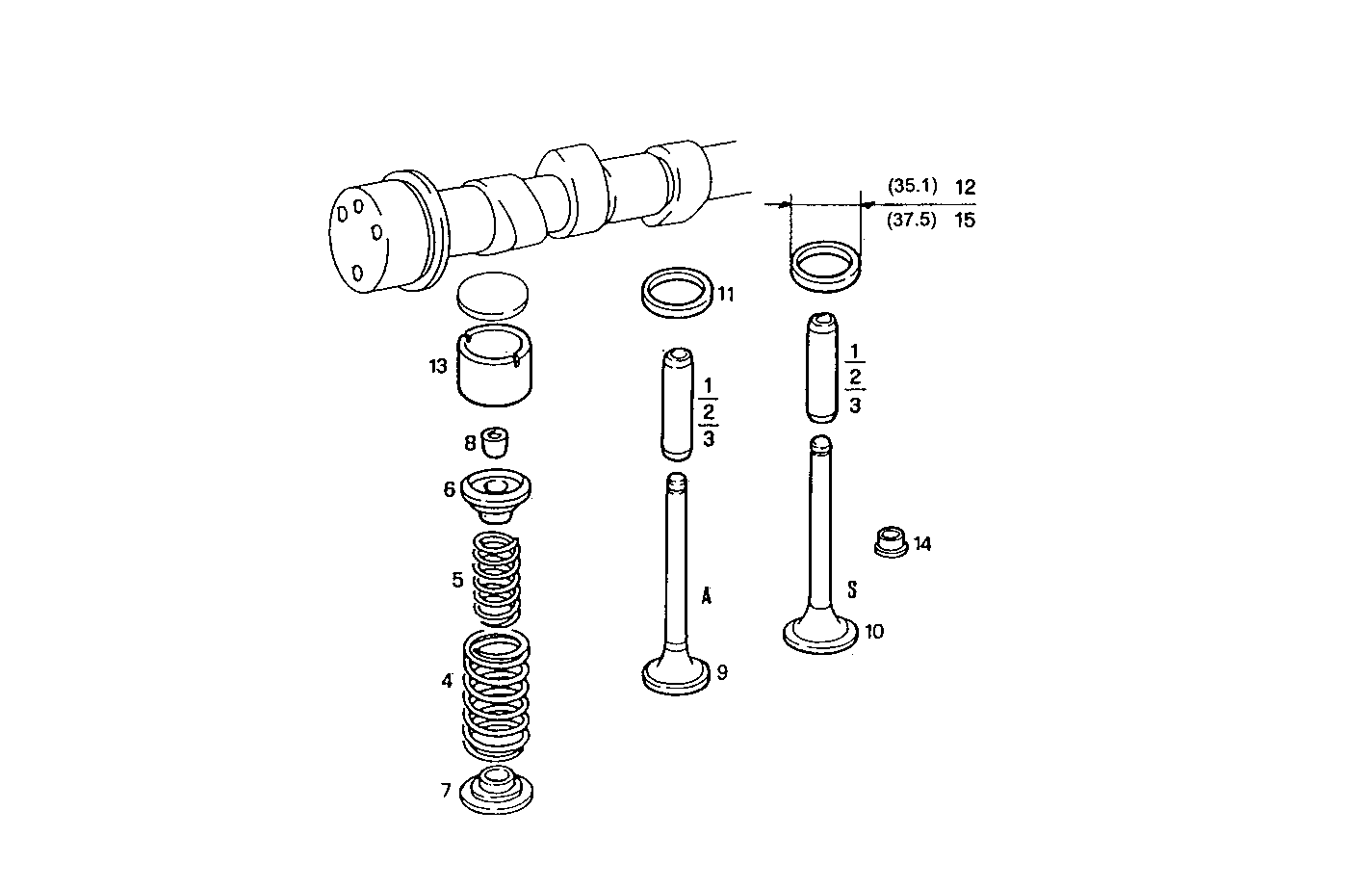

0600.090/02 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 4749397 VALVE GUIDE
2 4749398 VALVE GUIDE +0.10
3 4749399 VALVE GUIDE +0,2
4 4734533 ENGINE VALV.SPRING OUTER
5 4723186 ENGINE VALV.SPRING INNER
6 4734531 SPRING CAP TOP
7 4749396 SPRING CAP BOTTOM
8 4733465 VALVE CONE
9 7301820 INLET VALVE
10 4826033 EXHAUST VALVE
11 98450370 VALVE SEAT STD. INTAKE
12 98450371 VALVE SEAT STD. 45° [up to 19921213]
13 4733350 VALVE TAPPET
14 40101573 CAP
15 98466491 VALVE SEAT STD. EXHAUST
