8141i67.01

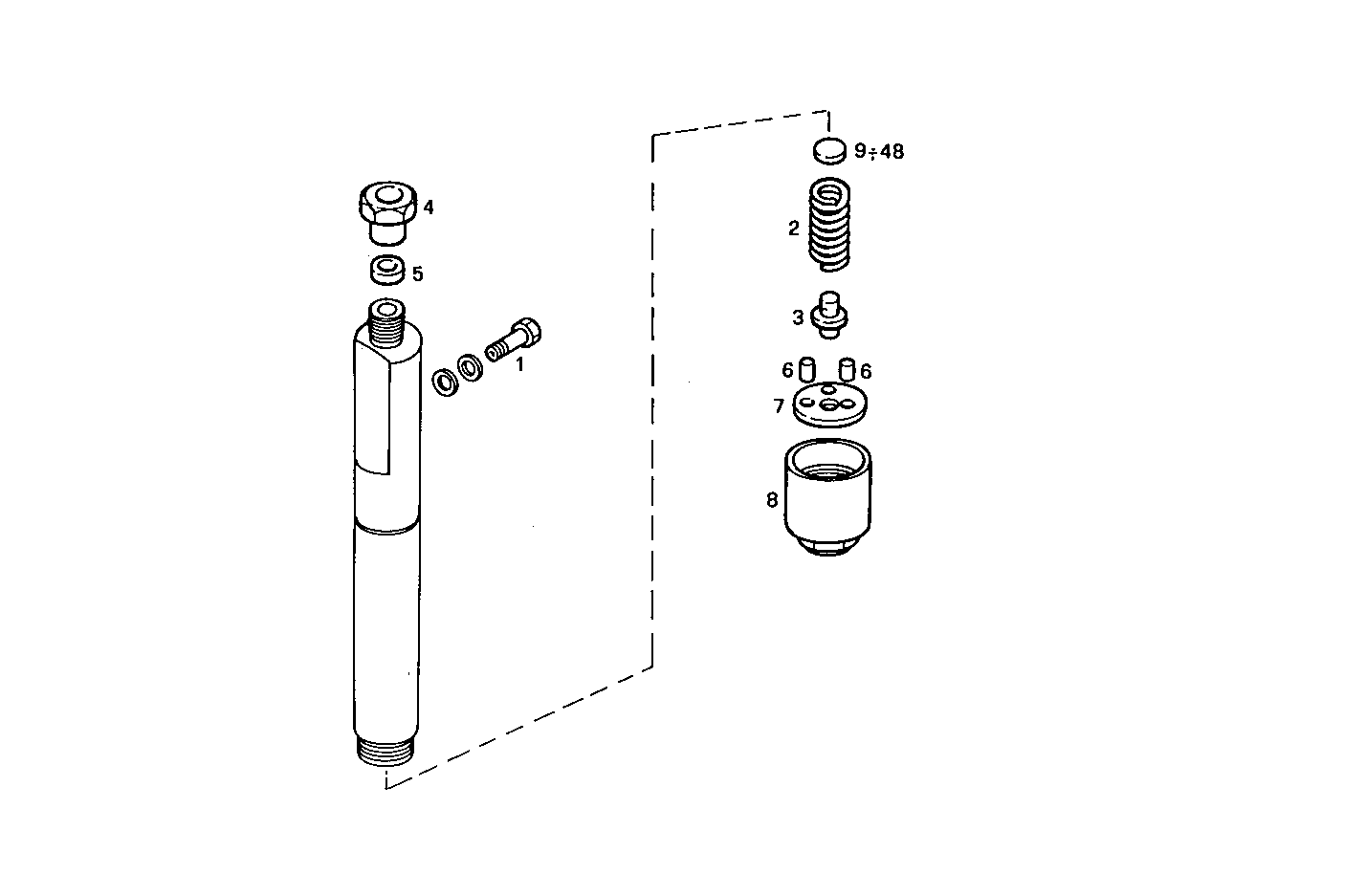

1430.015 NOZZLE HOLDER (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
93190600 |
SCREW CONNECTOR M6 |
|
2 |
9982965 |
SPRING |
|
3 |
9982961 |
WASHER/PLATE |
|
4 |
9982962 |
NUT |
|
5 |
1288011 |
RING |
|
6 |
9982960 |
PARALLEL PIN |
|
7 |
9982959 |
STOP PLATE |
|
8 |
9982963 |
FASTENING RING |
|
9 |
79067811 |
SHIM 1,10 MM |
|
10 |
79067813 |
SHIM 1,14 MM |
|
11 |
79067816 |
SHIM 1,20 MM |
|
12 |
79067818 |
SHIM 1,24 MM |
|
13 |
79067821 |
SHIM 1,30 MM |
|
14 |
9982926 |
SHIM SP=1,35 MM |
|
15 |
79067826 |
SHIM 1,40 MM |
|
16 |
9982928 |
SHIM SP=1,45 MM |
|
17 |
79067831 |
SHIM SP=1,5 MM |
|
18 |
9982930 |
SHIM SP=1,55 MM |
|
19 |
9982931 |
SHIM SP=1,6 MM |
|
20 |
9982932 |
SHIM SP=1,65 MM |
|
21 |
9982933 |
SHIM SP=1,7 MM |
|
22 |
9982934 |
SHIM SP=1,75 MM |
|
23 |
9982935 |
SHIM SP=1,8 MM |
|
24 |
9982937 |
SHIM SP=1,9 MM |
|
25 |
9982938 |
SHIM SP=1,95 MM |
|
26 |
9982939 |
SHIM SP=1,025 MM |
|
27 |
9982940 |
SHIM SP=1,075 MM |
|
28 |
9982941 |
SHIM SP=1,125 MM |
|
29 |
9982942 |
SHIM SP=1,175 MM |
|
30 |
9982943 |
SHIM SP=1,225 MM |
|
31 |
9982944 |
SHIM SP=1,275 MM |
|
32 |
9982945 |
SHIM SP=1,325 MM |
|
33 |
9982946 |
SHIM SP=1,375 MM |
|
34 |
9982947 |
SHIM SP=1,425 MM |
|
35 |
9982948 |
SHIM SP=1,475 MM |
|
36 |
9982949 |
SHIM SP=1,525 MM |
|
37 |
9982950 |
SHIM SP=1,575 MM |
|
38 |
9982951 |
SHIM SP=1,625 MM |
|
39 |
9982952 |
SHIM SP=1,675 MM |
|
40 |
9982953 |
SHIM SP=1,725 MM |
|
41 |
9982954 |
SHIM SP=1,775 MM |
|
42 |
9982955 |
SHIM SP=1,825 MM |
|
43 |
9982956 |
SHIM SP=1,875 MM |
|
44 |
9982957 |
SHIM SP=1,925 MM |
|
45 |
9982958 |
SHIM SP=1,975 MM |
|
46 |
79067806 |
SHIM SP=1 MM |
|
47 |
79067808 |
SHIM SP=1,04 MM |
|
48 |
79067848 |
SHIM 1,84 MM |
