8141i67.01

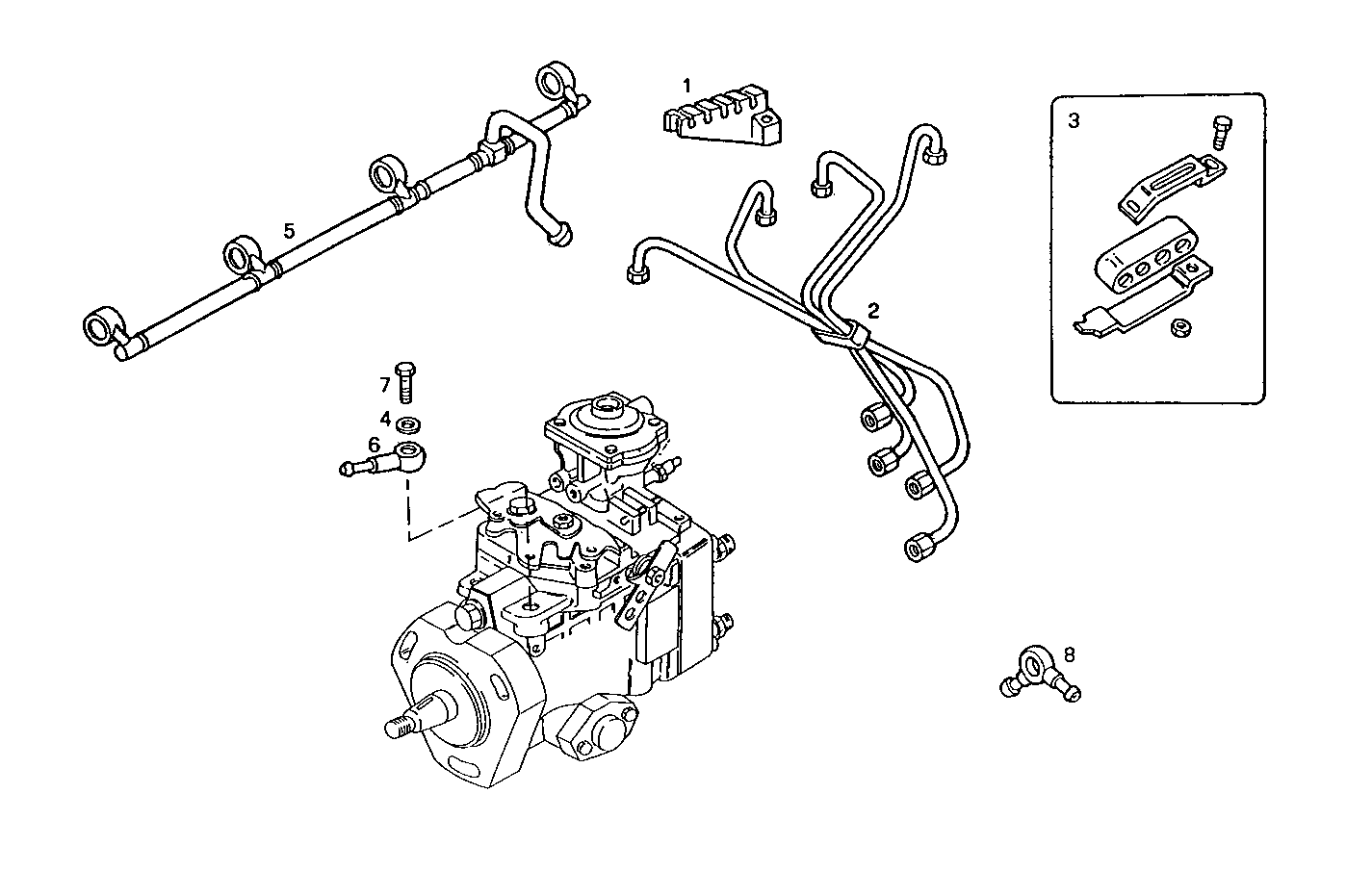

2020.066 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 4714424 | RUBBER PAD |
| 2 | 4747826 | INJECTION LINE SET |
| 3 | 99431258 | FASTENING BRACKET DAMPERS |
| 4 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
| 5 | 7302149 | FUEL LINE ASSY |
| 6 | 98434018 | THREADED UNION |
| 7 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 8 | 98433829 | BANJO COUPLING [up to 1555507] |
