8141i67.01

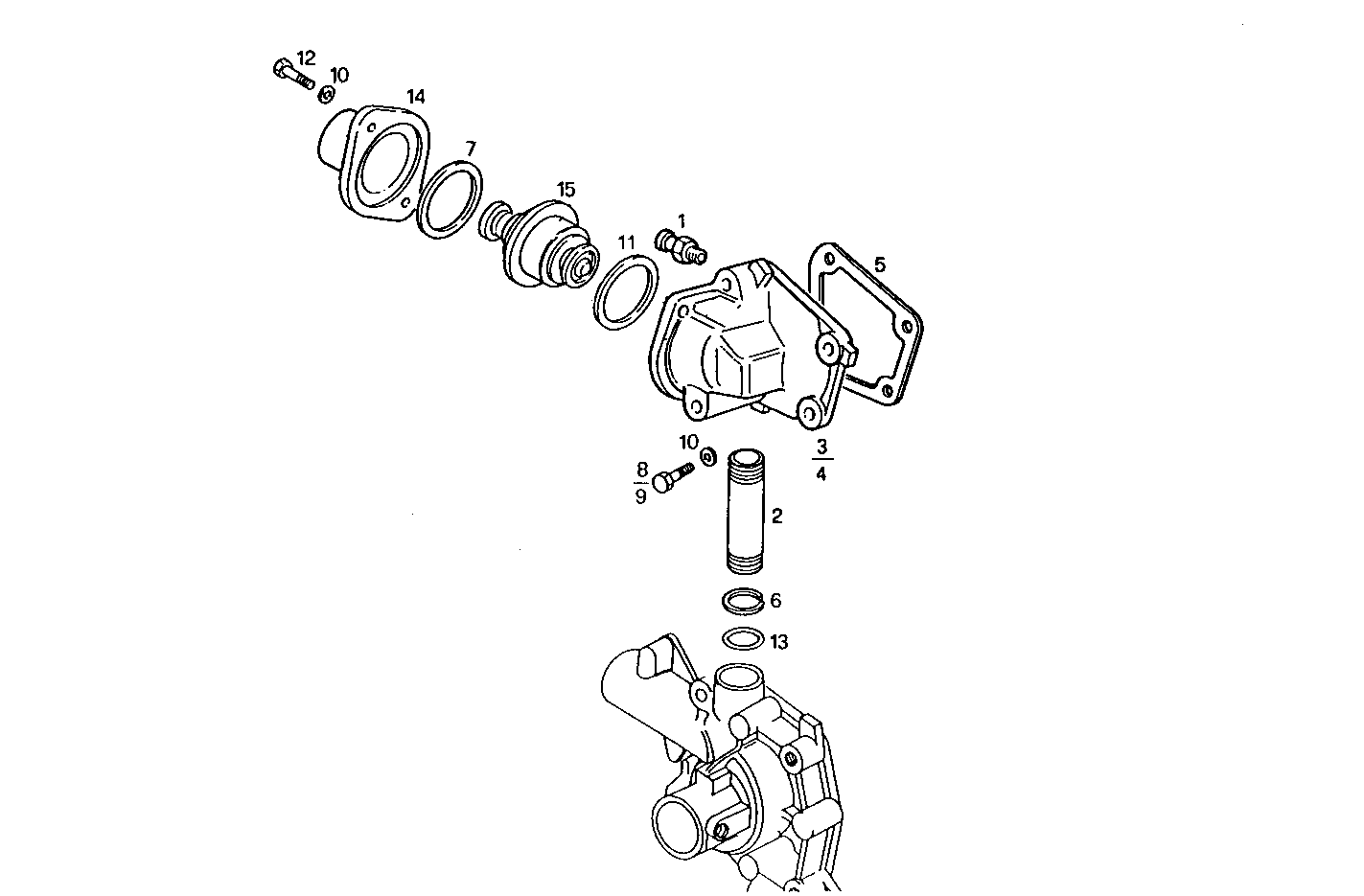

3220.065 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 4448131 | TEMP. TRANSMITTER TTA |
| 2 | 7302296 | PIPE |
| 3 | 99464389 | THERMOSTAT BODY [from 2207824] |
| 4 | 4836764 | THERMOSTAT BODY [up to 2207823] |
| 5 | 98421297 | FLAT ENGINE GASKET SP=0,8 MM |
| 6 | 11066976 | CIRCLIP Ø19,5 MM |
| 7 | 14455281 | O-RING SP=1,78 MM |
| 8 | 16605924 | SCREW M8X40 MM |
| 9 | 16605524 | HEXAGON BOLT M8X20 MM |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 7303173 | GASKET |
| 12 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 13 | 17278481 | O-RING Ø17,17 MM SP=1,78 MM |
| 14 | 7301254 | COVER |
| 15 | 7303615 | THERMOSTAT |
