8141i67.02A010

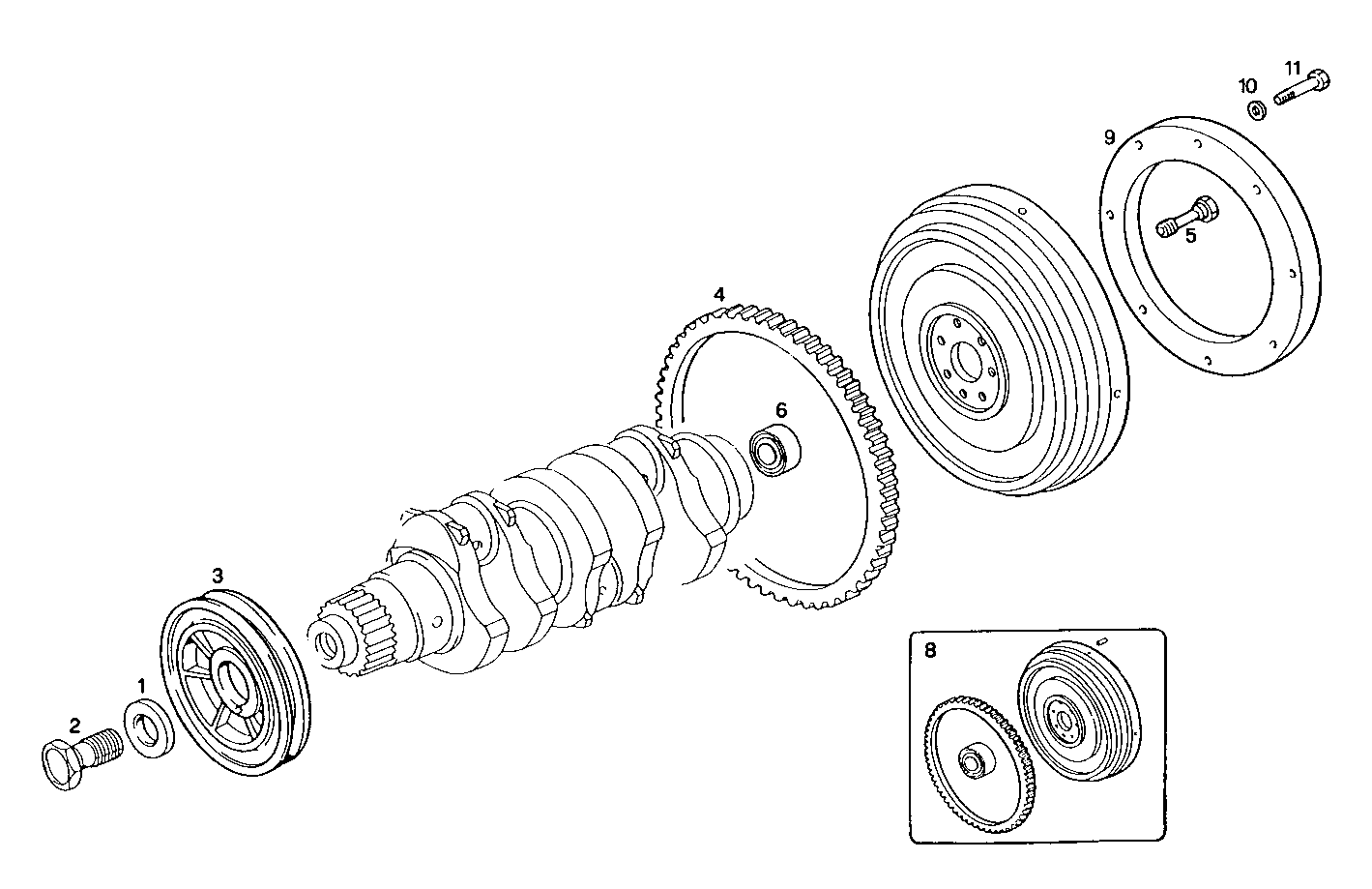

0830.132 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 98431967 | WASHER |
| 2 | 98419203 | SCREW M20X1,5X58 MM |
| 3 | 98420085 | CRANKSHAFT PULLEY |
| 4 | 4279804 | RING GEAR |
| 5 | 98430735 | SCREW |
| 6 | 98426210 | ENGINE BEARINGS Ø15X35 Sp=14 MM |
| 8 | 8019406 | FLYWHEEL ASSY |
| 9 | 8010747 | RING |
| 10 | 17090174 | SPRING WASHER Ø10X20 MM |
| 11 | 11288021 | HEXAGON BOLT M10X1,25X60 MM |
