8141i67.02A010

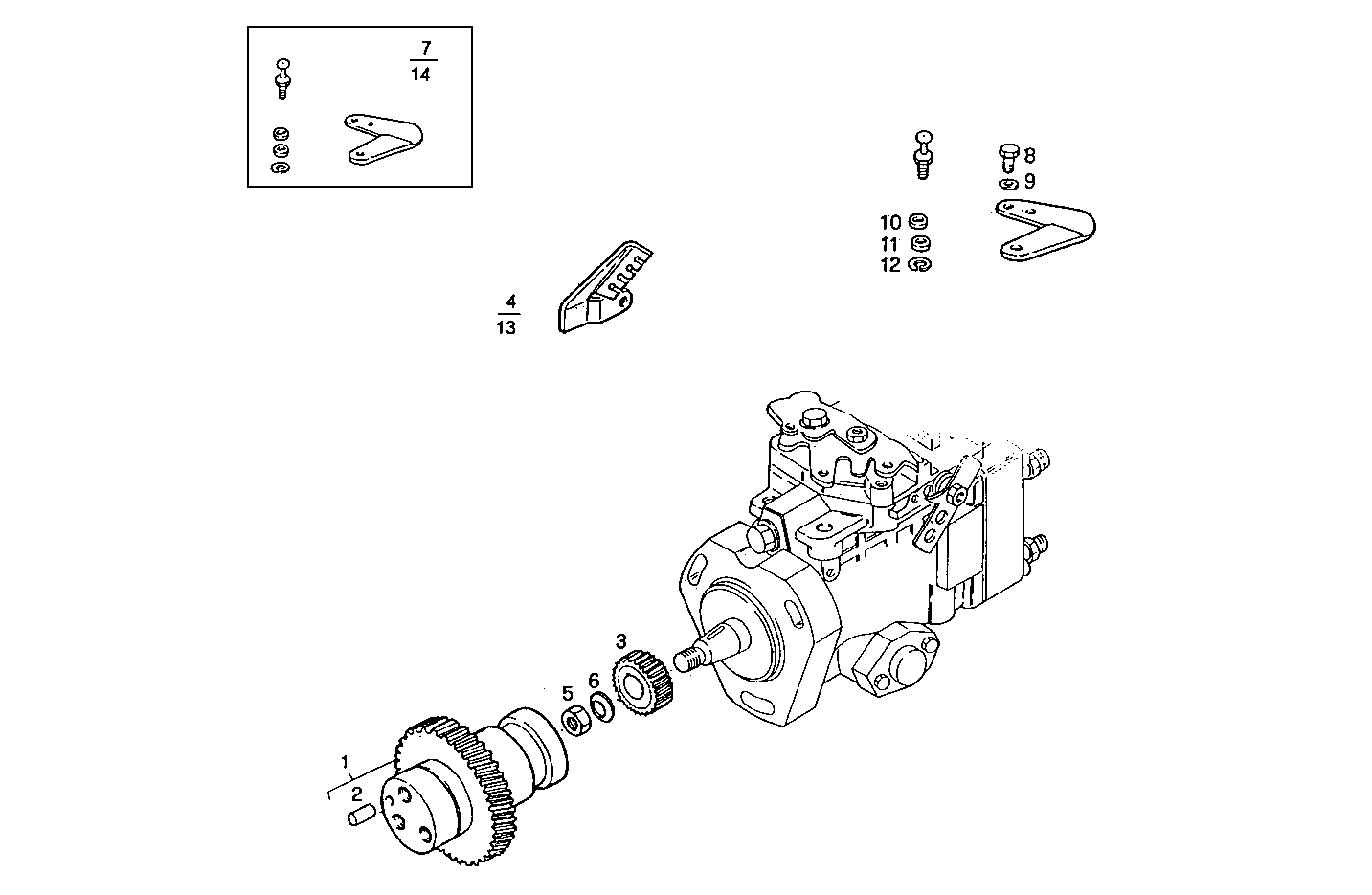

1410.051 INJECTION PUMP DRIVE
Item | Part number | Description |
---|---|---|
1 | 99483335 | INJECT.PUMP SPIND ASSY |
2 | 10335910 | PARALLEL PIN |
3 | 4715877 | GEAR |
4 | 98425990 | RETAINER [from 1394976] |
5 | 7300343 | NUT |
6 | 759275 | WASHER Ø12,2X17,9 SP=3,2 |
7 | 98425989 | LEVER ASSY [from 1394976] |
8 | 16603524 | SCREW M6X12 MM (8.8) |
9 | 17798174 | SPRING WASHER Ø6,1X11,8 MM |
10 | 12544271 | SPRING WASHER Ø6X11 MM |
11 | 14488601 | WASHER Ø6 MM |
12 | 11087776 | CIRCLIP Ø5 MM |
13 | 98415798 | RETAINER M6X20 MM [up to 1394975] |
14 | 8590976 | LEVER ASSY [up to 1394975] |
