8141i67.02A010

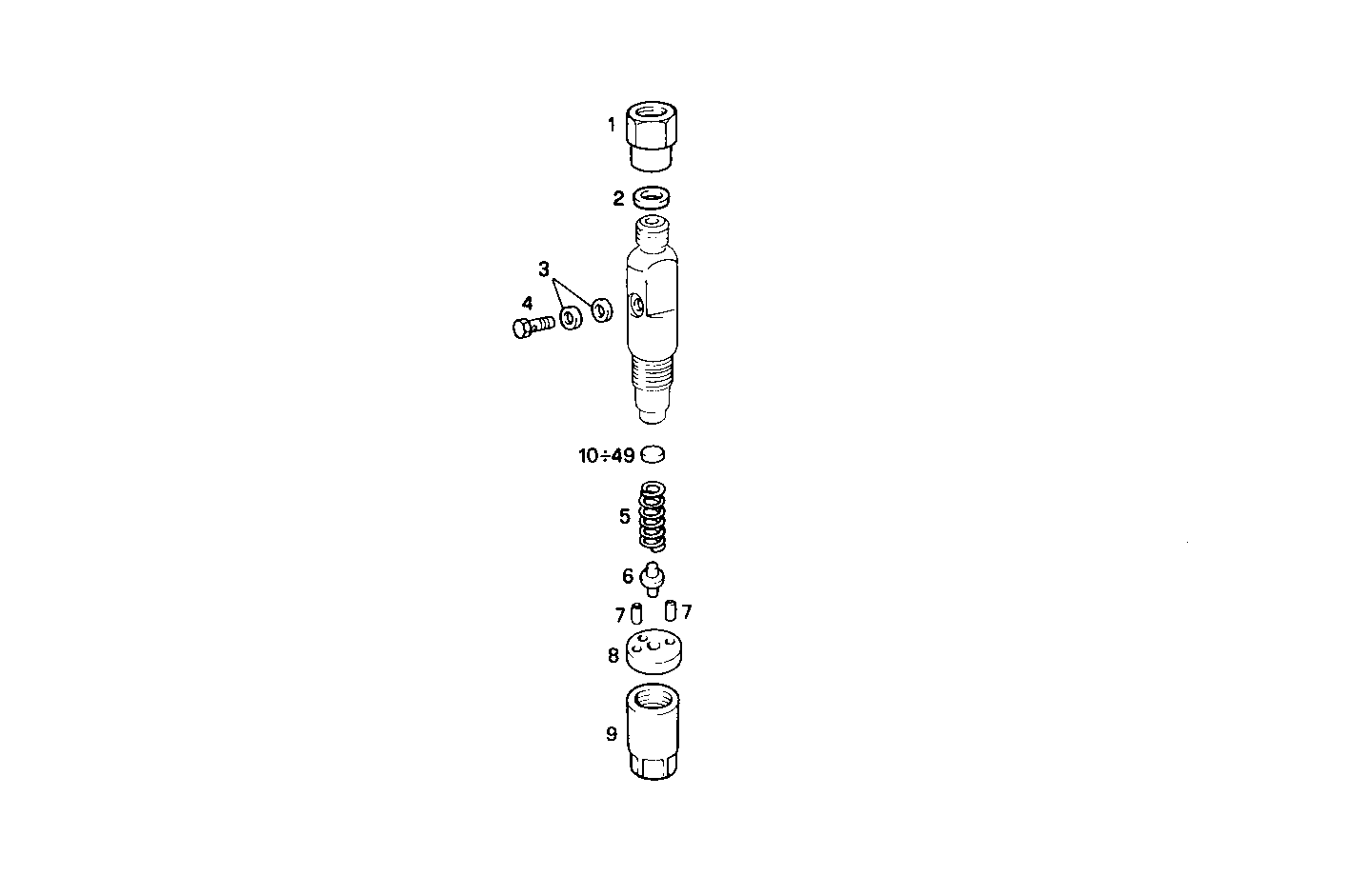

1430.027 NOZZLE HOLDER (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
9935333 |
PIPE SOCKET |
|
2 |
9007822 |
WASHER |
|
3 |
9929742 |
WASHER |
|
4 |
9935335 |
SCREW CONNECTOR |
|
5 |
9935336 |
SPRING |
|
6 |
9935332 |
PIN |
|
7 |
9935331 |
PIN |
|
8 |
9935330 |
RING |
|
9 |
9935334 |
PLUG |
|
10 |
9935920 |
SHIM 1,00 MM |
|
11 |
9935291 |
SHIM 1,05 MM |
|
12 |
9935292 |
SHIM 1,10 MM |
|
13 |
9935293 |
SHIM 1,15 MM |
|
14 |
9935294 |
SHIM 1,20 MM |
|
15 |
9935295 |
SHIM 1,25 MM |
|
16 |
9935296 |
SHIM 1,30 MM |
|
17 |
9935297 |
SHIM 1,35 MM |
|
18 |
9935298 |
SHIM 1,40 MM |
|
19 |
9935299 |
SHIM 1,45 MM |
|
20 |
9935300 |
SHIM 1,50 MM |
|
21 |
9935301 |
SHIM 1,55 MM |
|
22 |
9935302 |
SHIM 1,60 MM |
|
23 |
9935303 |
SHIM 1,65 MM |
|
24 |
9935304 |
SHIM 1,70 MM |
|
25 |
9935305 |
SHIM 1,75 MM |
|
26 |
9935306 |
SHIM 1,80 MM |
|
27 |
9935307 |
SHIM 1,85 MM |
|
28 |
9935308 |
SHIM 1,90 MM |
|
29 |
9935309 |
SHIM 1,95 MM |
|
30 |
9935310 |
SHIM 1,025 MM |
|
31 |
9935311 |
SHIM 1,075 MM |
|
32 |
9935312 |
SHIM 1,125 MM |
|
33 |
9935313 |
SHIM 1,175 MM |
|
34 |
9935314 |
SHIM 1,225 MM |
|
35 |
9935315 |
SHIM 1,275 MM |
|
36 |
9935316 |
SHIM 1,325 MM |
|
37 |
9935317 |
SHIM 1,375 MM |
|
38 |
9935318 |
SHIM 1,425 MM |
|
39 |
9935319 |
SHIM 1,475 MM |
|
40 |
9935320 |
SHIM 1,525 MM |
|
41 |
9935321 |
SHIM 1,575 MM |
|
42 |
9935322 |
SHIM 1,625 MM |
|
43 |
9935323 |
SHIM 1,675 MM |
|
44 |
9935324 |
SHIM 1,725 MM |
|
45 |
9935325 |
SHIM 1,775 MM |
|
46 |
9935326 |
SHIM 1,825 MM |
|
47 |
9935327 |
SHIM 1,875 MM |
|
48 |
9935328 |
SHIM 1,925 MM |
|
49 |
9935329 |
SHIM 1,975 MM |
