8141i67.02A010

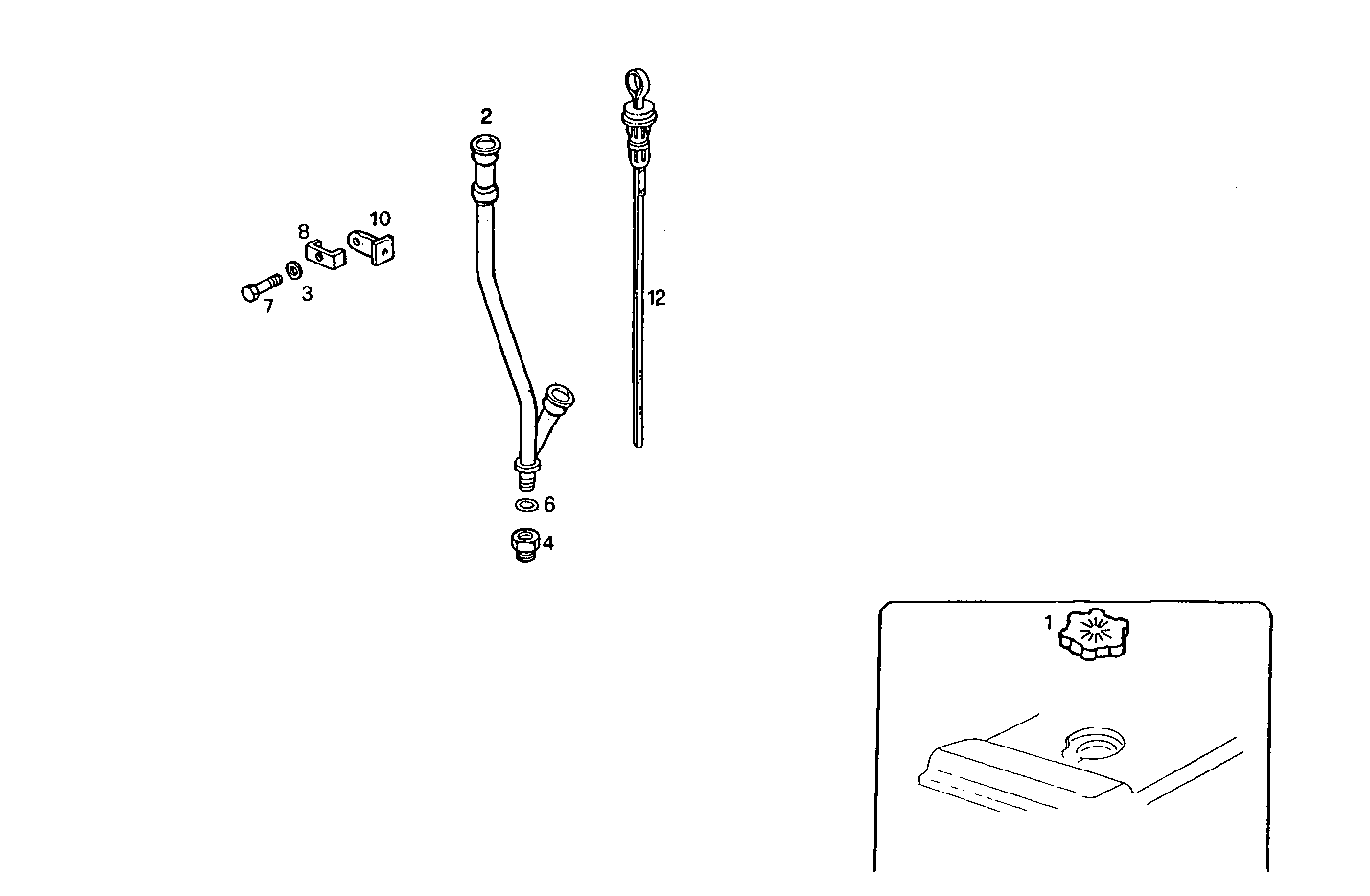

2710.060 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 98442027 | OIL FILLER PLUG ASSY |
| 2 | 500302190 | OIL LEVEL TUBE Ø8X10 MM |
| 3 | 11193874 | WASHER Ø8X16 MM |
| 4 | 99441398 | PIPE SOCKET ASSY |
| 6 | 14452981 | O-RING Ø9,25 MM SP=1,78 MM |
| 7 | 16605524 | HEXAGON BOLT M8X20 MM |
| 8 | 4716870 | RETAINER |
| 10 | 500302199 | RETAINER |
| 12 | 500302197 | OIL DIPSTICK ASSY |
