8141i67.02A010

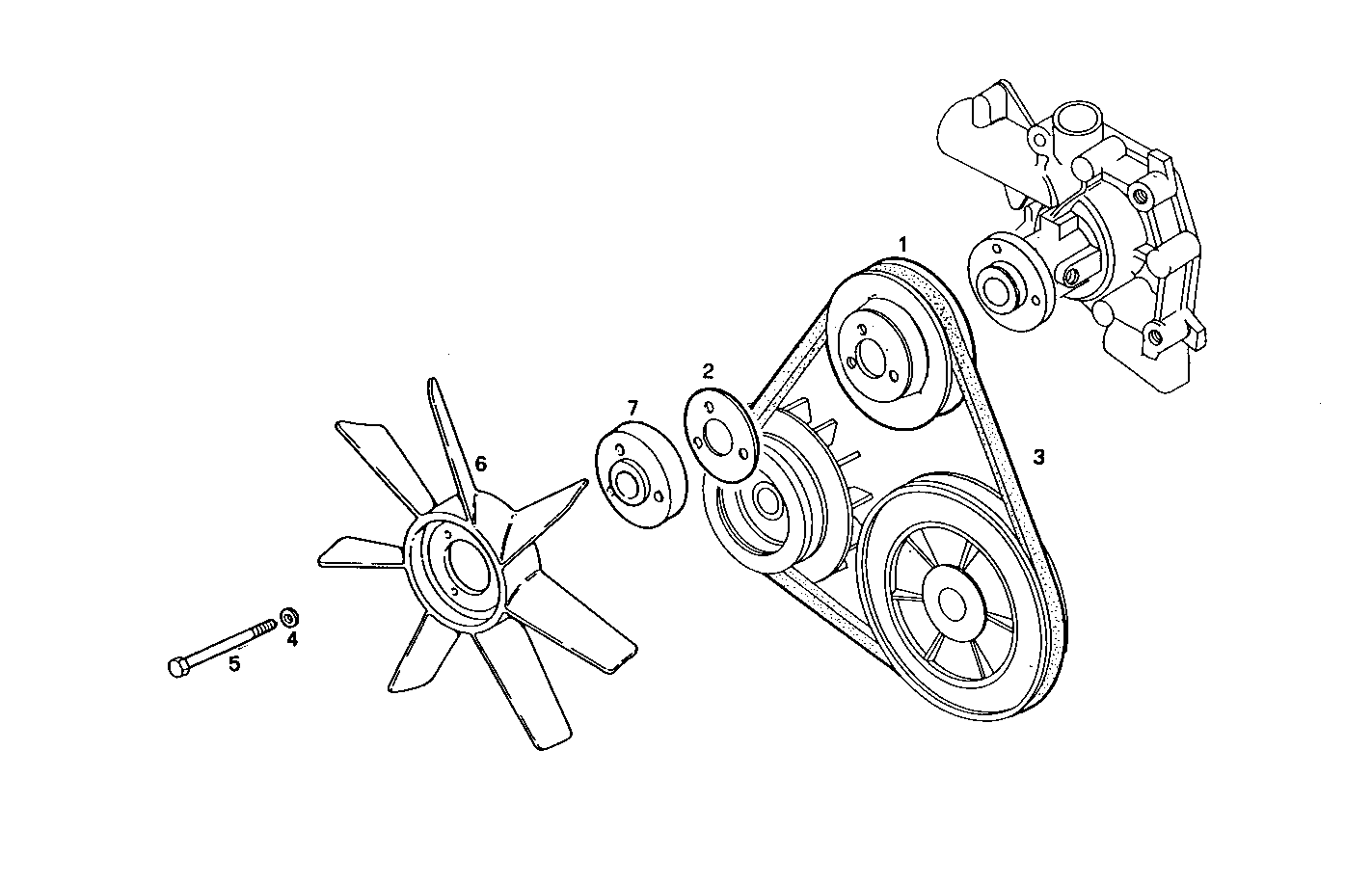

3240.086 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4713941 | WATER PUMP PULLEY |
| 2 | 7300488 | RING |
| 3 | 7301221 | V-BELT |
| 4 | 17094924 | WASHER Ø8X16 MM |
| 5 | 16606524 | HEXAGON BOLT M8X70 MM |
| 6 | 8596706 | FAN |
| 7 | 8100533 | SPACING BAR |
