8141i67.02A010

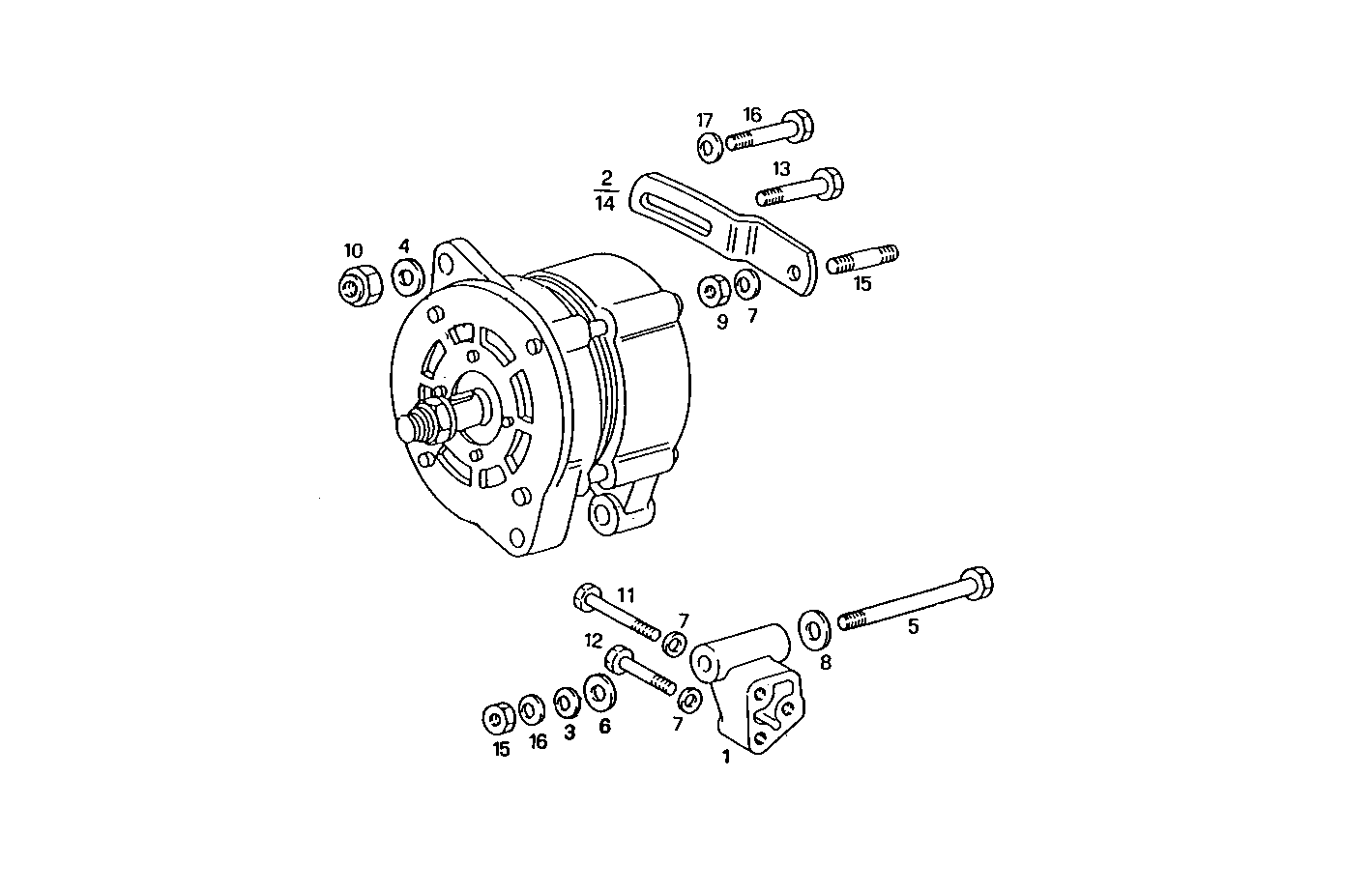

4010.075 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 7303475 GENERATOR SUPPORT
2 4729582 BELT TENSIONER [up to 2182943]
3 4726707 WASHER SP=2 MM
4 7300040 WASHER SP=2,00 MM
5 16611324 HEXAGON BOLT M12X130 MM
6 4857669 SPACING BAR
7 11198374 SPRING WASHER Ø10X20 MM
8 11198674 WASHER Ø13 MM
9 17038221 HEXAGON NUT M10
10 12575411 HEXAGON NUT
11 15971321 HEXAGON BOLT M10X1,25X75 MM
12 15970924 HEXAGON BOLT M10X1,25X35 MM
13 11307024 SCREW M10X1,25X40 MM
14 98416025 BELT TENSIONER [from 1307401]
15 17038421 HEXAGON NUT M12 (8)
16 17091074 WASHER Ø12X24X2,8 MM
