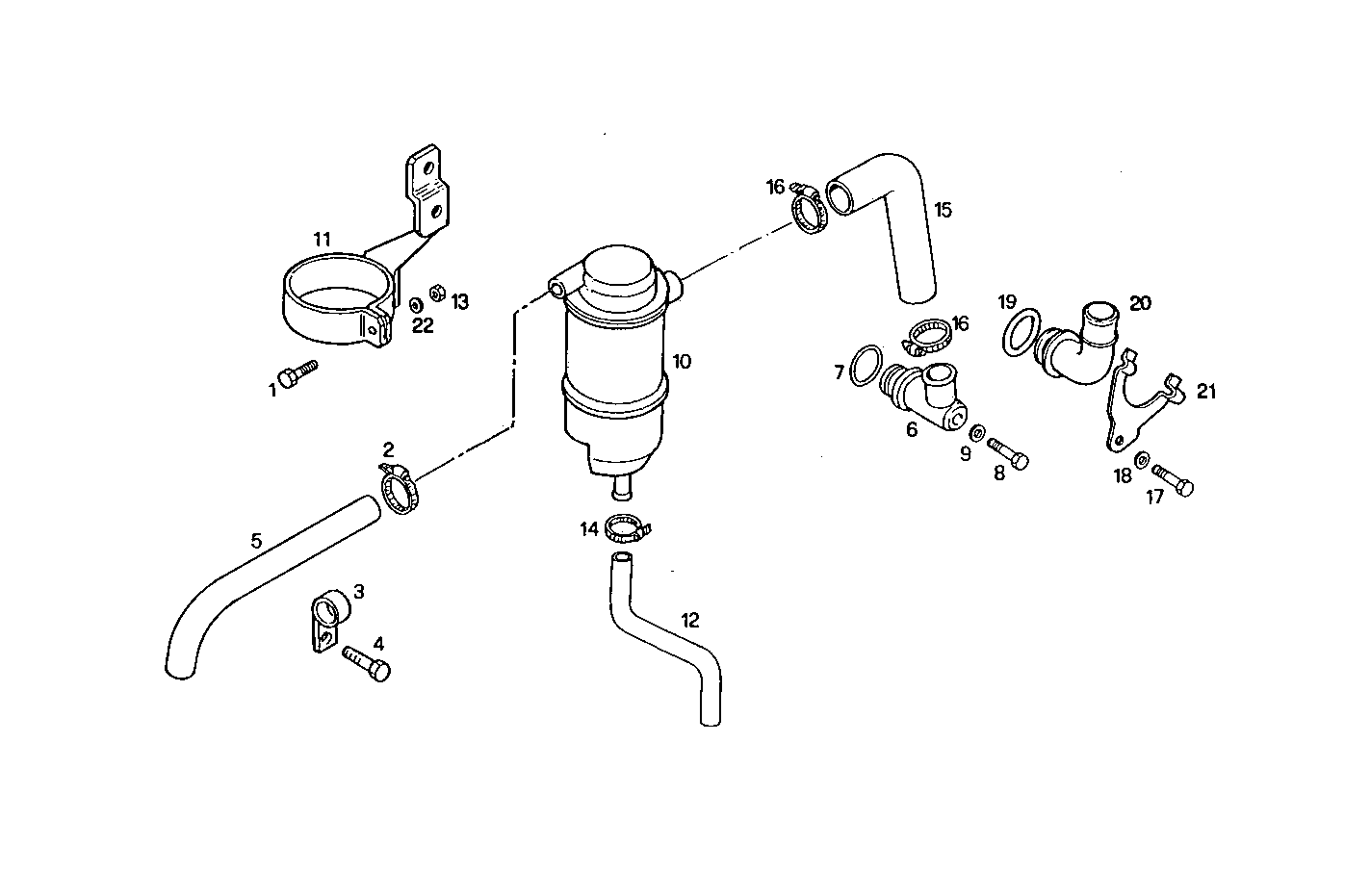

| Item |
Part number |
Description |
|
1 |
16043321 |
HEXAGON BOLT M8X18 MM |
|
2 |
17764592 |
CLIP Ø20/32 MM |
|
3 |
17317190 |
PIPE CLIP Ø24 MM |
|
4 |
15970121 |
HEXAGON BOLT M10X14 MM |
|
5 |
8101429 |
AIR HOSE |
|
6 |
98434019 |
BREATHER PIPE Ø37 MM [up to 1848055] |
|
7 |
17283181 |
O-RING Ø37,77 MM SP=2,62 MM |
|
8 |
16606724 |
HEXAGON BOLT M8X90 MM |
|
9 |
98462384 |
GASKET |
|
10 |
4858569 |
BREATHER |
|
11 |
4860370 |
SUPPORT [up to 03-97] |
|
12 |
4860366 |
AIR HOSE |
|
13 |
17037931 |
HEXAGON NUT M8X1,25 |
|
14 |
17764792 |
HOSE CLIP Ø32-50 MM |
|
15 |
4860367 |
AIR HOSE |
|
16 |
18088392 |
CLIP Ø16/25 MM |
|
17 |
16605424 |
SCREW M8X16 MM (8.8) |
|
18 |
17094914 |
WASHER 8x16 |
|
19 |
17289681 |
O-RING Ø44 MM SP=3,53 MM |
|
20 |
99432377 |
BREATHER PIPE Ø50 MM [from 1848056] |
|
21 |
99433312 |
LOCK/YOKE BUNDY [from 1848056] |
|
22 |
11193874 |
WASHER Ø8X16 MM |
