8141Si27.02

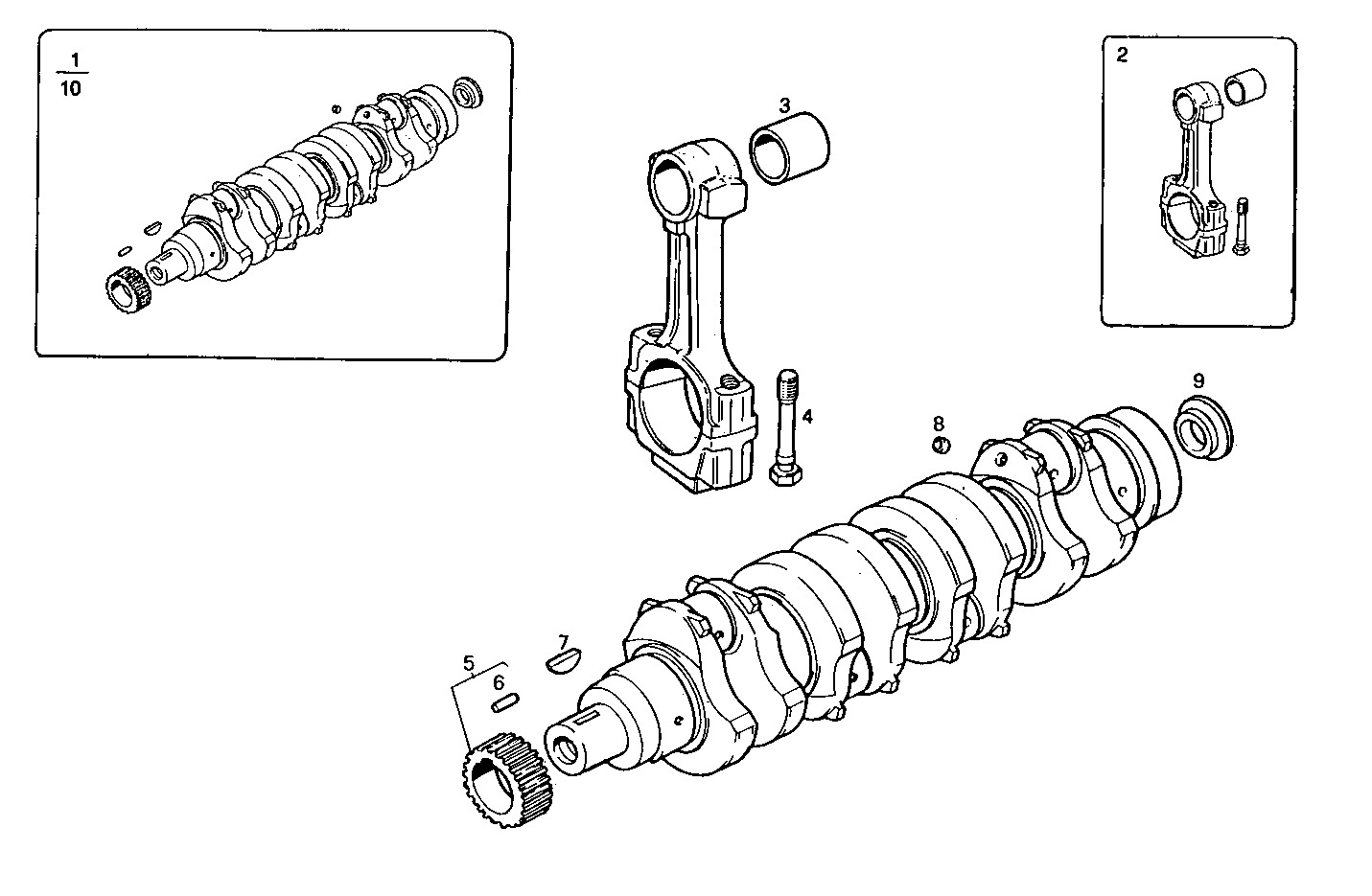

0800.039 CRANK SHAFT - CONNECTING RODS

Iveco/FPT CRANK SHAFT - CONNECTING RODS

Item Part number Description
1 98454453 CRANK SHAFT ASSY [up to 2130305]
2 7473171 CONN.ROD ASSY. ASSY
3 7302028 BIG-END BUSH
4 98460577 BIG-END BOLT
5 98419244 CAMSHAFT PINION ASSY [from 1307401]
6 10332010 PARALLEL PIN
7 4655844 KEY
8 14328101 LOCK PLUG Ø8 MM
9 98426373 CENTERING RING [from 1307401]
10 500314779 CRANK SHAFT ASSY [from 2130306]
