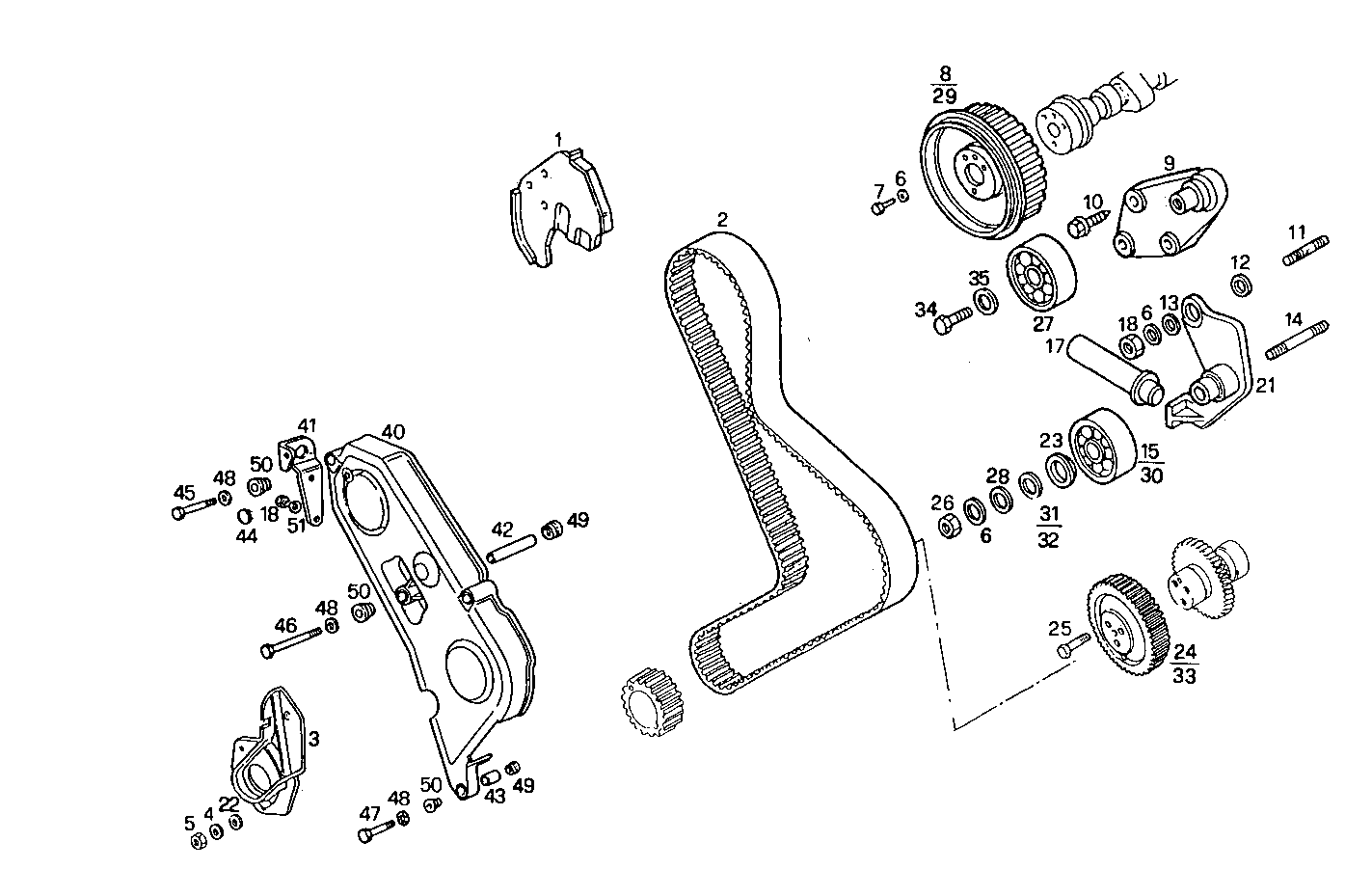

| Item |
Part number |
Description |
|
1 |
98475847 |
PROTECTION [from 1815310] |
|
2 |
98415921 |
TIMING BELT [from 1307401] |
|
3 |
98474997 |
COVER BOTTOM [up to 2263443] |
|
4 |
17088671 |
SPRING WASHER Ø6X15 MM SP=1 MM |
|
5 |
17038221 |
HEXAGON NUT M10 |
|
6 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
7 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
8 |
98415206 |
TIMING INTERM.GEA MIBA |
|
9 |
98490152 |
SUPPORT [from 1815310] |
|
10 |
16586524 |
HEXAGON BOLT M8X30 MM |
|
11 |
13517021 |
STUD M8X25 MM |
|
12 |
4861928 |
SPACER [from 1173278] |
|
13 |
12646721 |
WASHER Ø8X20 MM |
|
14 |
7301674 |
STUD |
|
15 |
99432547 |
ENGINE BEARINGS |
|
17 |
4279745 |
BELT TENSIONER |
|
18 |
17037931 |
HEXAGON NUT M8X1,25 |
|
21 |
4849127 |
SUPPORT [from 1173278] |
|
22 |
17798374 |
SPRING WASHER Ø10,2X18,1 MM |
|
23 |
7300035 |
SPACER RIV-SKF |
|
24 |
98415210 |
INJ.PUMP DRIV.GEA MIBA |
|
25 |
14337521 |
LOCKING SCREW M12X1,25X30 MM |
|
27 |
4740846 |
ENGINE BEARINGS RIV-SKF |
|
28 |
17090574 |
WASHER Ø10X27 MM SP=2,8 |
|
29 |
99434616 |
TIMING INTERM.GEA SINTERTECH |
|
30 |
99461357 |
ENGINE BEARINGS Ø25X67 MM SP=34 MM |
|
31 |
4782498 |
WASHER RIV-SKF [up to 1832165] |
|
32 |
98479895 |
SPACING BAR [from 1832166] |
|
33 |
98434613 |
GEAR |
|
40 |
98414754 |
COVER [up to 1815309] |
|
41 |
4837172 |
HOOK |
|
42 |
4717072 |
SPACER BUSH L=41 MM |
|
43 |
7300085 |
SPACER BUSH |
|
44 |
14407787 |
PLUG |
|
45 |
1111079 |
HEXAGON BOLT M6X50 MM |
|
46 |
10903721 |
SCREW M6X55 |
|
47 |
10902821 |
HEXAGON BOLT M6X30 MM |
|
48 |
17088474 |
WASHER Ø6X12 MM |
|
49 |
7300033 |
INSULATING RING |
|
50 |
7300034 |
WASHER |
|
51 |
12654421 |
WASHER SP=3 MM |
