8141Si27.02

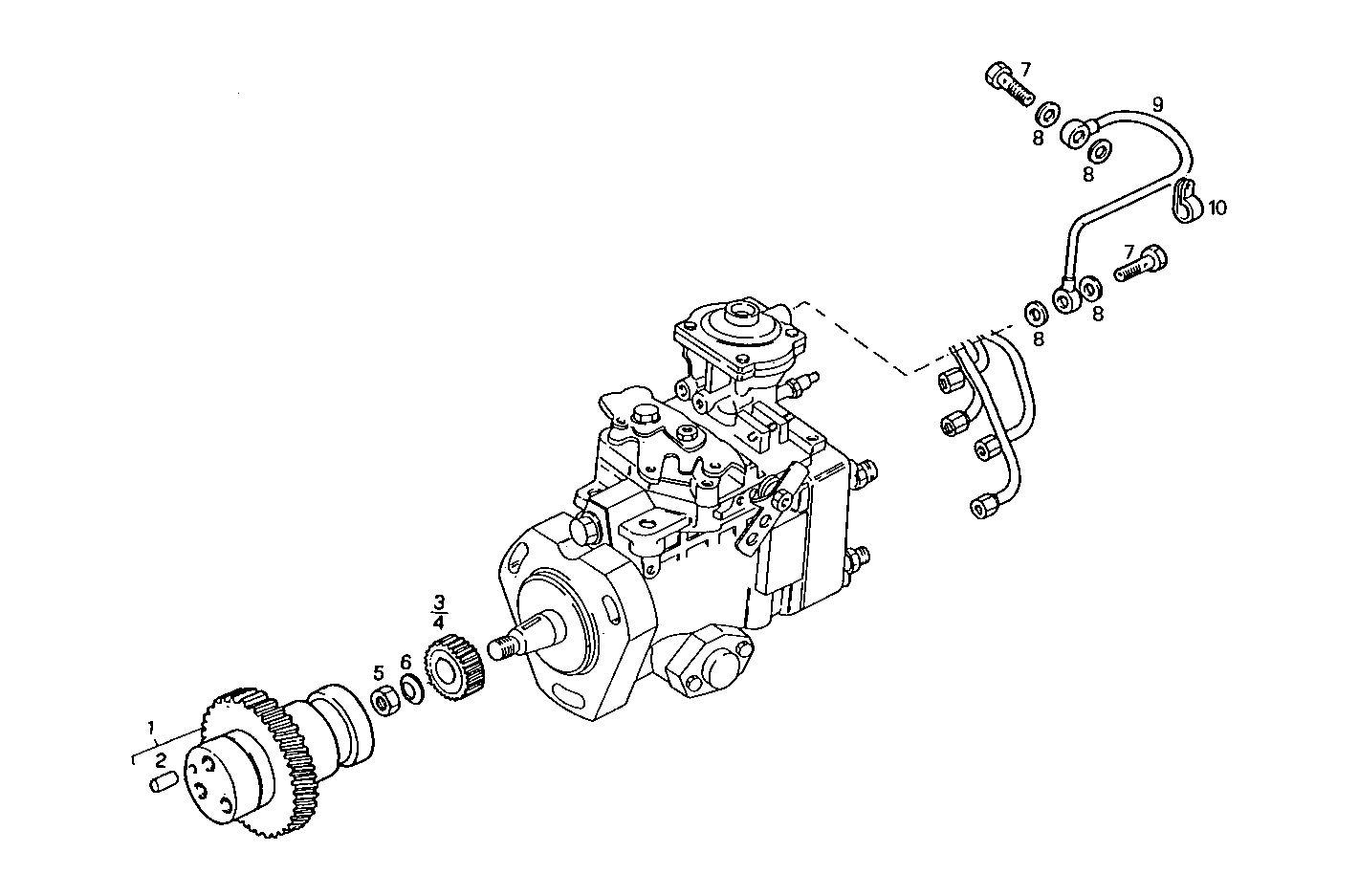

1410.065 INJECTION PUMP DRIVE
Item | Part number | Description |
---|---|---|
1 | 99483385 | SLIDING PROP.SHAFT ASSY GKN |
2 | 10335910 | PARALLEL PIN |
3 | 4772022 | INJECT.PUMP BUSH 197° 30' [from 1992415] |
4 | 4797226 | INJECT.PUMP BUSH 200° 30' [from 1992415] |
5 | 17043231 | NUT M14X1,5 |
6 | 768389 | CIRCLIP |
7 | 11904011 | SCREW CONNECTOR |
8 | 10262760 | SEAL GASKET Ø8,2 MM |
9 | 7302725 | FUEL LINE |
10 | 10449890 | PIPE CLIP Ø53 MM |
