8141Si27.02

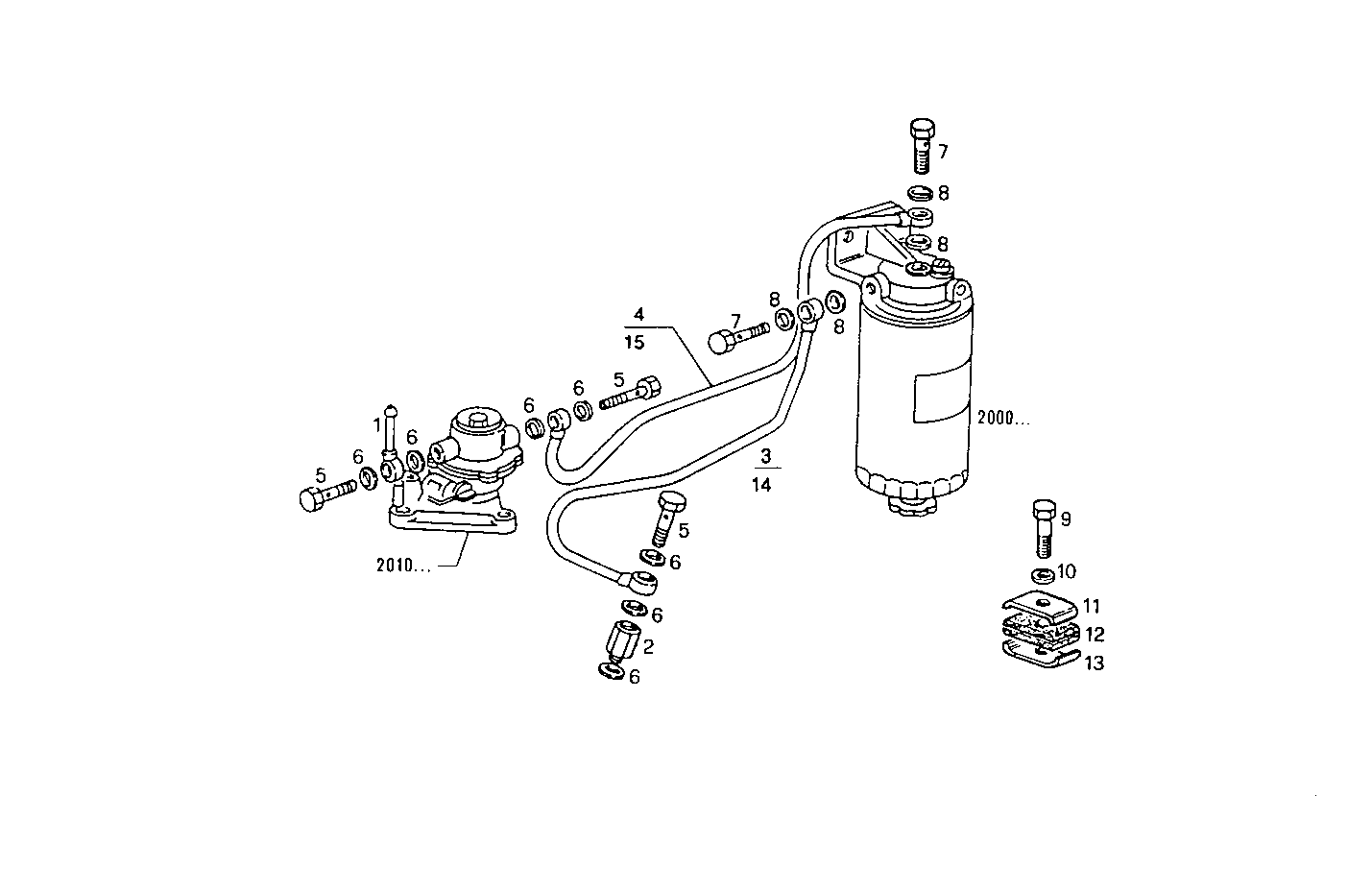

2030.033 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98405514 | PIPE SOCKET |
| 2 | 4934594 | PIPE SOCKET |
| 3 | 8107279 | FUEL LINE [up to 11-91] |
| 4 | 8107278 | FUEL LINE [up to 11-91] |
| 5 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 6 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 7 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 8 | 98474308 | SEAL GASKET Ø14X22 MM |
| 9 | 16602224 | HEXAGON BOLT M5X20 MM |
| 10 | 11199279 | SPRING WASHER Ø5X10X0,5 MM |
| 11 | 4659218 | CLIP |
| 12 | 4659217 | DOWEL |
| 13 | 4659219 | PLATE |
| 14 | 8011761 | FUEL LINE [from 11-91] |
| 15 | 8011760 | FUEL LINE [from 11-91] |
