8141Si27.02

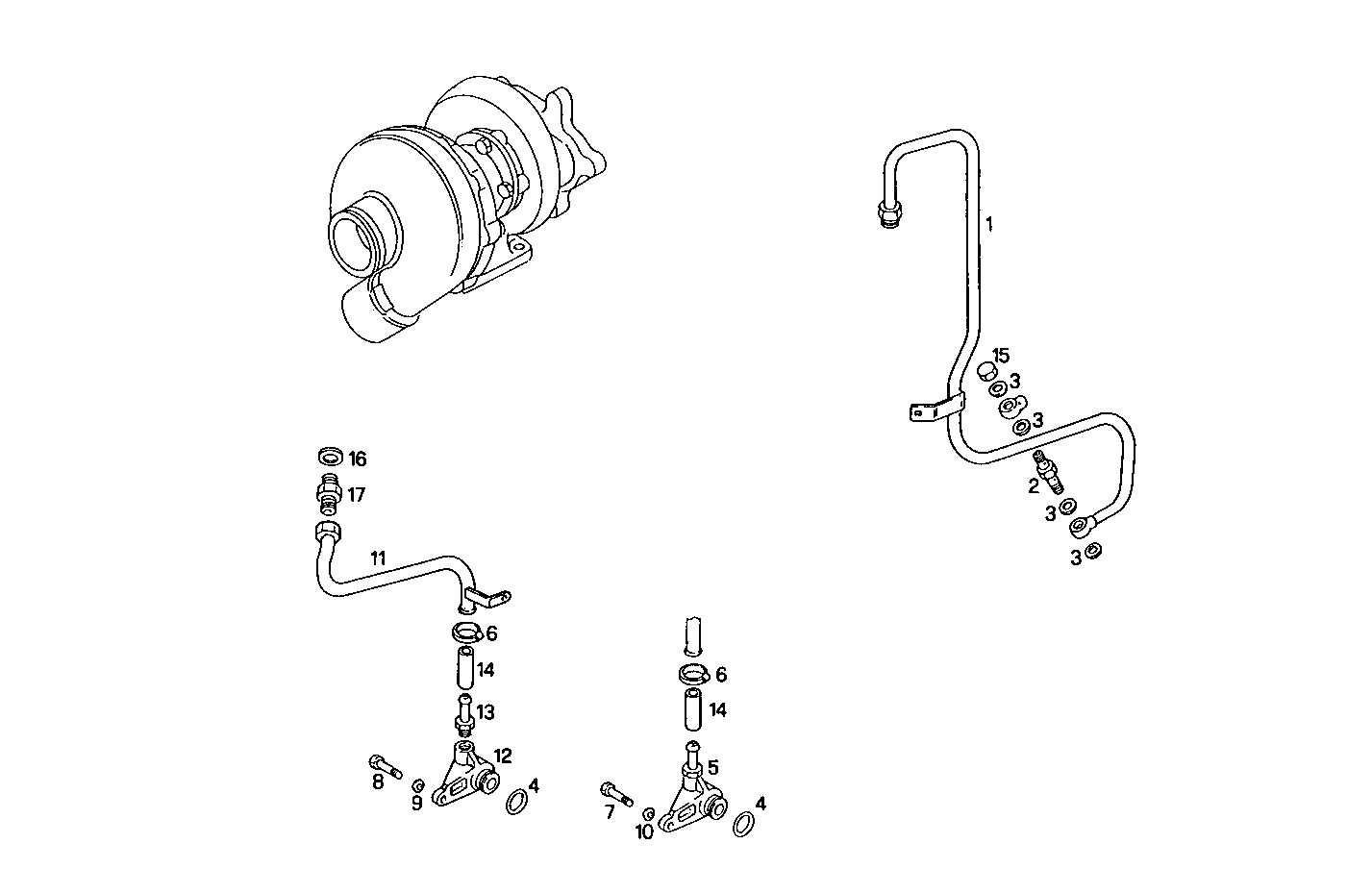

3010.035 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98433852 | OIL LINE |
| 2 | 98420957 | THREADED UNION |
| 3 | 16508160 | WASHER Ø14X18 MM |
| 4 | 14462881 | O-RING SP=3,53 MM |
| 5 | 98499352 | FLANGED SOCKET |
| 6 | 98463364 | CLIP |
| 7 | 16288424 | HEXAGON BOLT M10X1,25X25 MM |
| 8 | 11106311 | HEXAGON BOLT M10X28 MM |
| 9 | 11198374 | SPRING WASHER Ø10X20 MM |
| 10 | 17095104 | WASHER Ø10X21X2 MM |
| 11 | 98492695 | OIL LINE |
| 12 | 4853523 | PIPE SOCKET [up to 2008853] |
| 13 | 4616630 | THREADED UNION |
| 14 | 98492708 | RUBBER SLEEVE |
| 15 | 10182817 | LOCK PLUG |
| 16 | 93158409 | SEAL GASKET FOR KKK |
| 17 | 93158408 | THREADED UNION FOR KKK |
