8141Si27.02

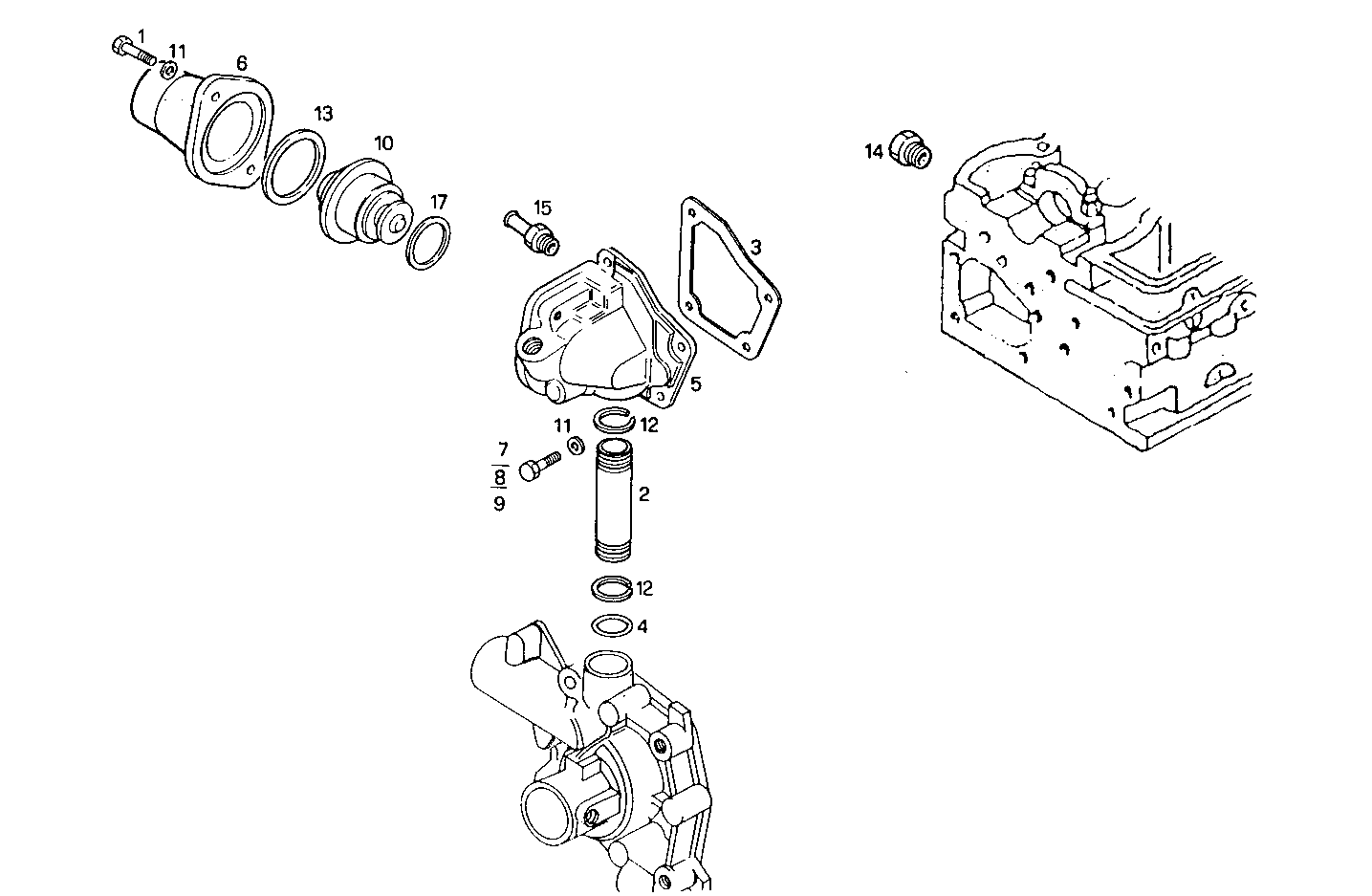

3220.014 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 16605624 HEXAGON BOLT M8X25 MM (8.8)
2 4697947 WATER PIPE
3 98421297 FLAT ENGINE GASKET SP=0,8 MM
4 17278481 O-RING Ø17,17 MM SP=1,78 MM
5 4828059 THERMOSTAT BODY
6 7301254 COVER
7 16605734 HEXAGON BOLT M8X30 MM
8 16605824 HEXAGON BOLT M8X35 MM
9 16044521 HEXAGON BOLT M8X65 MM
10 4826602 THERMOSTAT ASSY
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 16866173 CIRCLIP Ø19,5 MM
13 14455281 O-RING SP=1,78 MM
14 16997411 THREADED PLUG M16X1,5
15 98420965 THREADED UNION
17 7303173 GASKET
