8141Si27.02

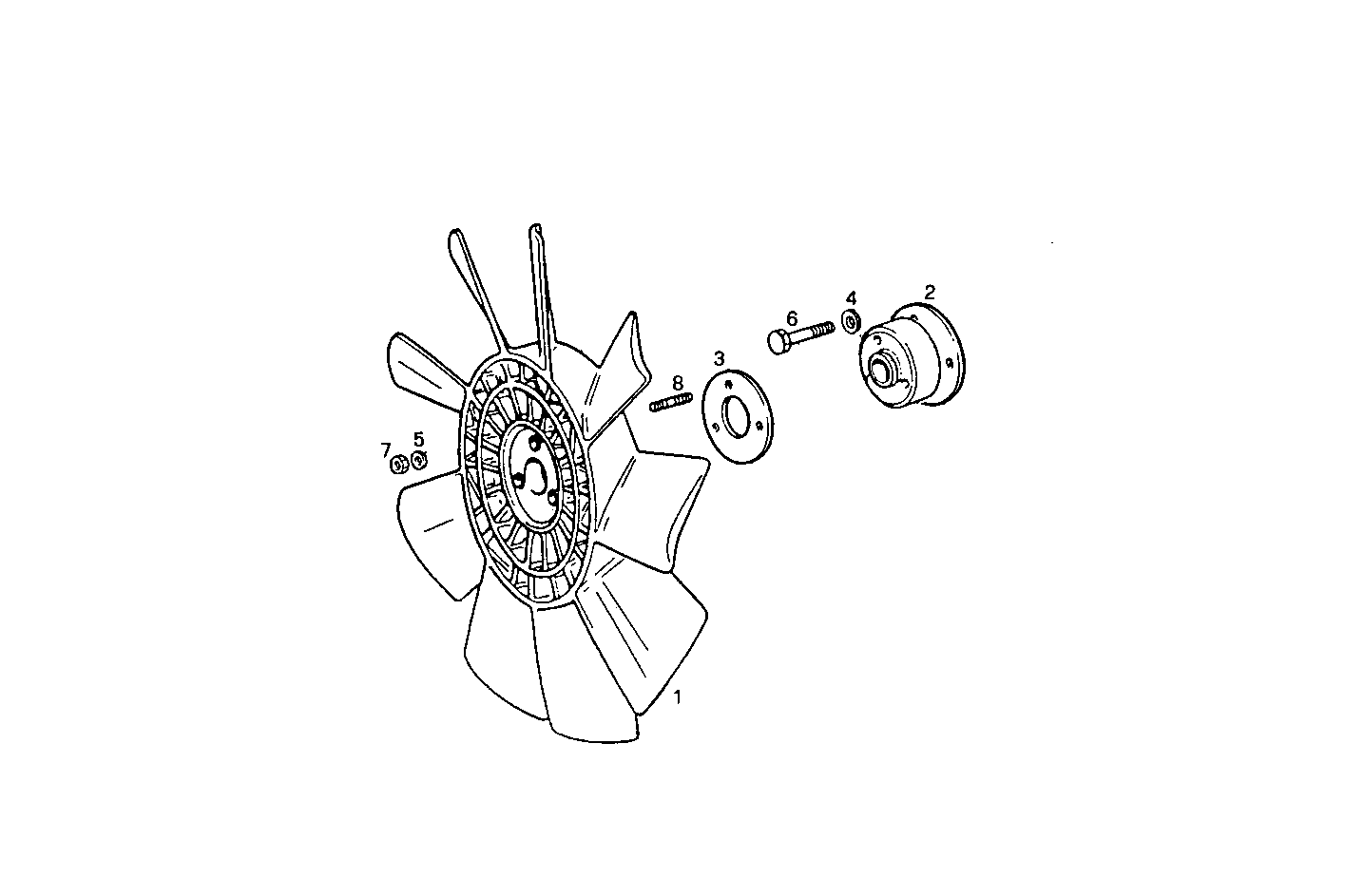

A08000005 PULLER FAN - on water pump
| Item | Part number | Description |
|---|---|---|
| 1 | 4616572 | BLOWER Ø400 MM |
| 2 | 8106837 | HUB |
| 3 | 4584861 | SPACING BAR |
| 4 | 12642701 | WASHER Ø8,15 MM |
| 5 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 6 | 16043421 | HEXAGON BOLT M8X20 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 13543621 | STUD M8X16X30 MM |
