8141Si27.02

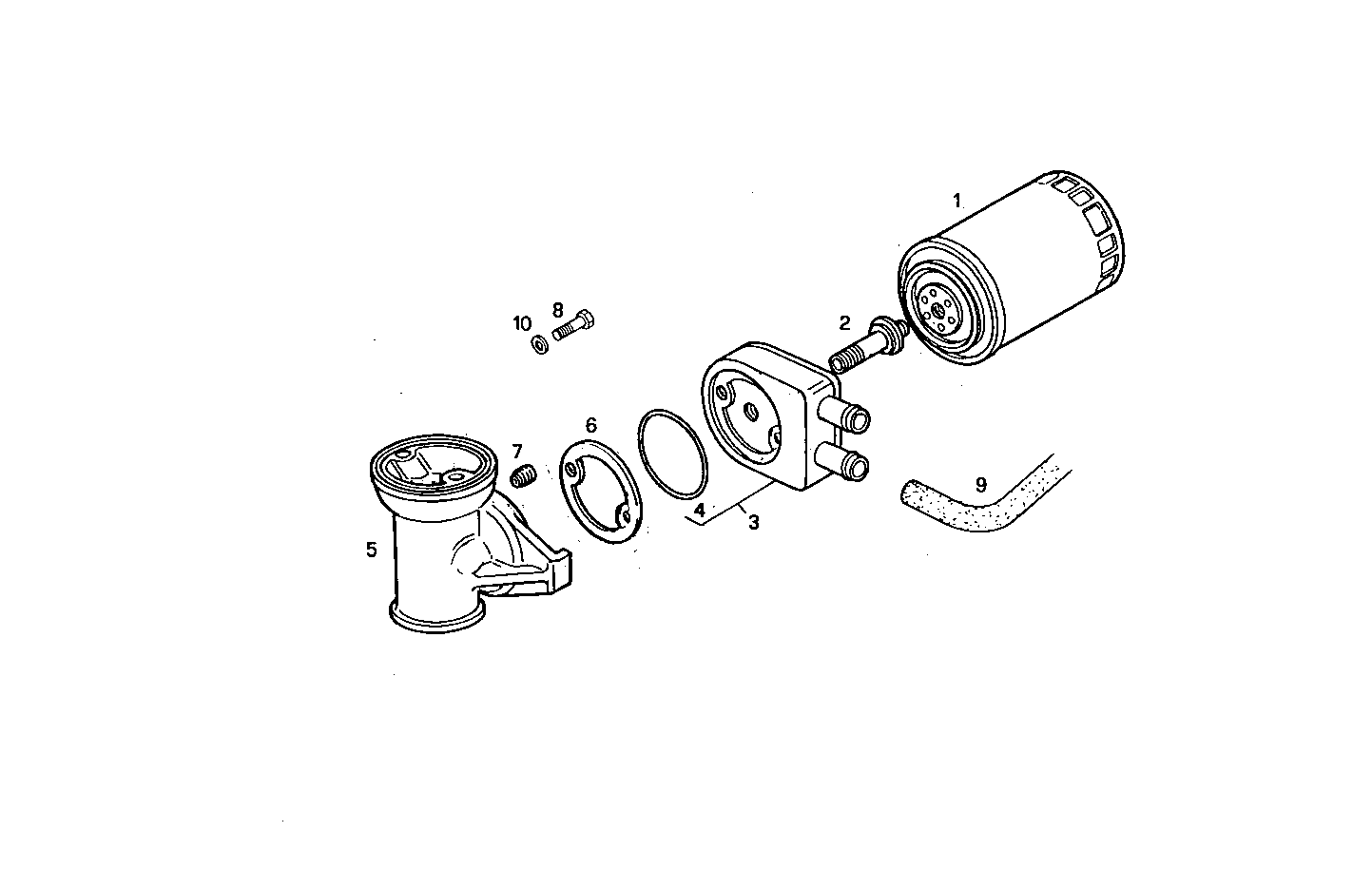

A17010004 HORIZONTAL SIMPLE OIL FILTER
Item | Part number | Description |
---|---|---|
1 | 1903628 | OIL FILTER CARTRIDGE |
2 | 98455068 | PIPE SOCKET |
3 | 4866350 | HEAT EXCHANGER ASSY |
4 | 93160574 | RUBBER RING Ø66 MM SP=5 MM |
5 | 98484239 | SUPPORT ASSY |
6 | 8009900 | GASKET |
7 | 4855259 | DOWEL PIN M8X1,25 |
8 | 98460705 | SCREW |
9 | 8016113 | WATER HOSE |
10 | 17288381 | O-RING Ø20,22X3,53 MM |
