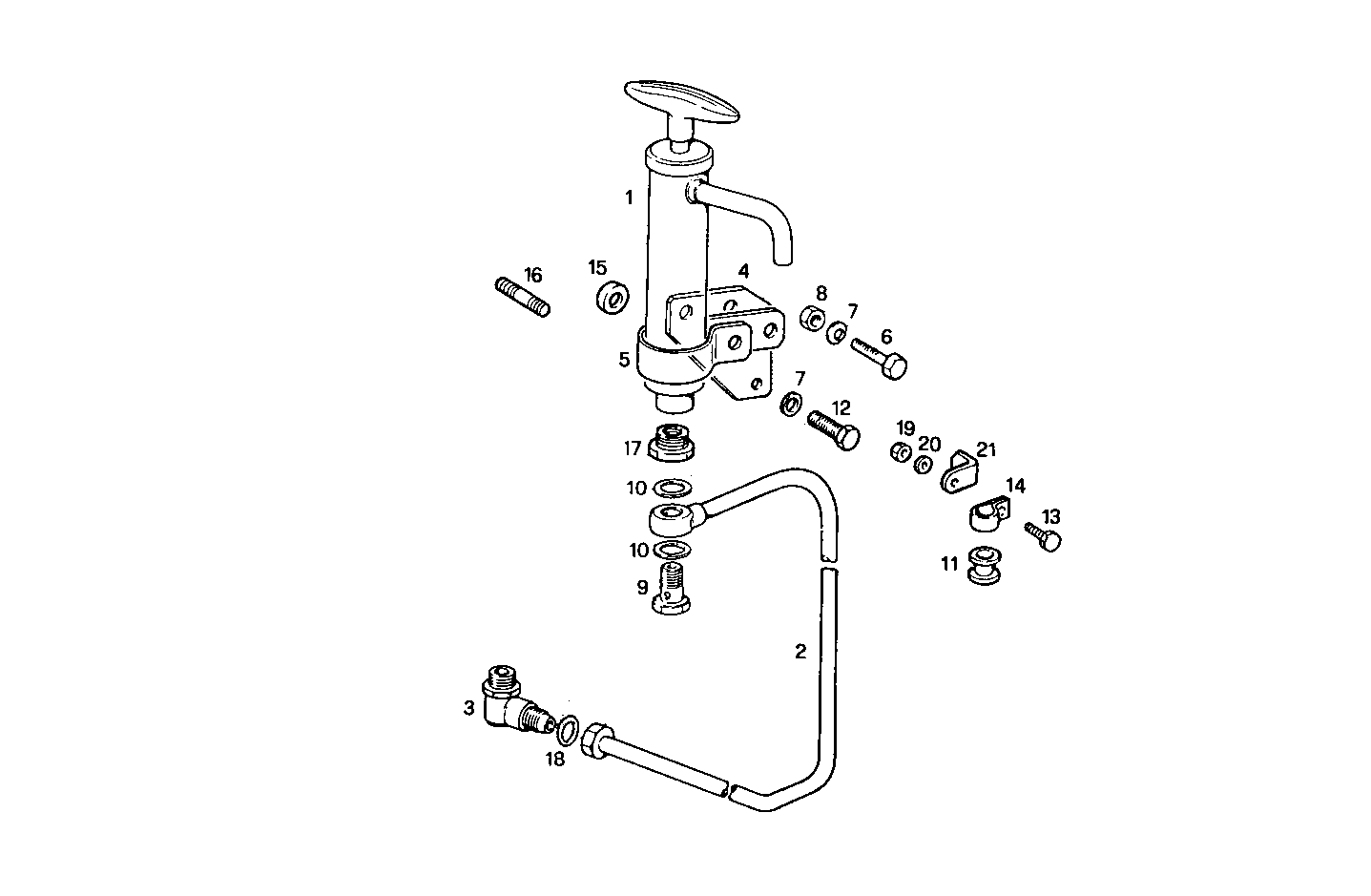

| Item |
Part number |
Description |
|
1 |
8019921 |
HAND PUMP |
|
2 |
8021488 |
OIL LINE |
|
3 |
4927625 |
PIPE SOCKET |
|
4 |
4934629 |
SUPPORT |
|
5 |
4934636 |
CLIP |
|
6 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
7 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
8 |
17038121 |
HEXAGON NUT M10 |
|
9 |
4864084 |
BANJO BOLT M16X1,5 |
|
10 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
11 |
4755964 |
RUBBER PAD |
|
13 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
14 |
4755963 |
FASTENING BRACKET |
|
15 |
8105618 |
SPACING BAR |
|
16 |
16729924 |
STUD M8X50 MM |
|
17 |
16500311 |
PIPE SOCKET M16X1,5/M18X1,5 |
|
18 |
8024647 |
GASKET Ø8 MM |
|
19 |
17037931 |
HEXAGON NUT M8X1,25 |
|
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
21 |
8107409 |
RETAINER |
