8141SRC20.00

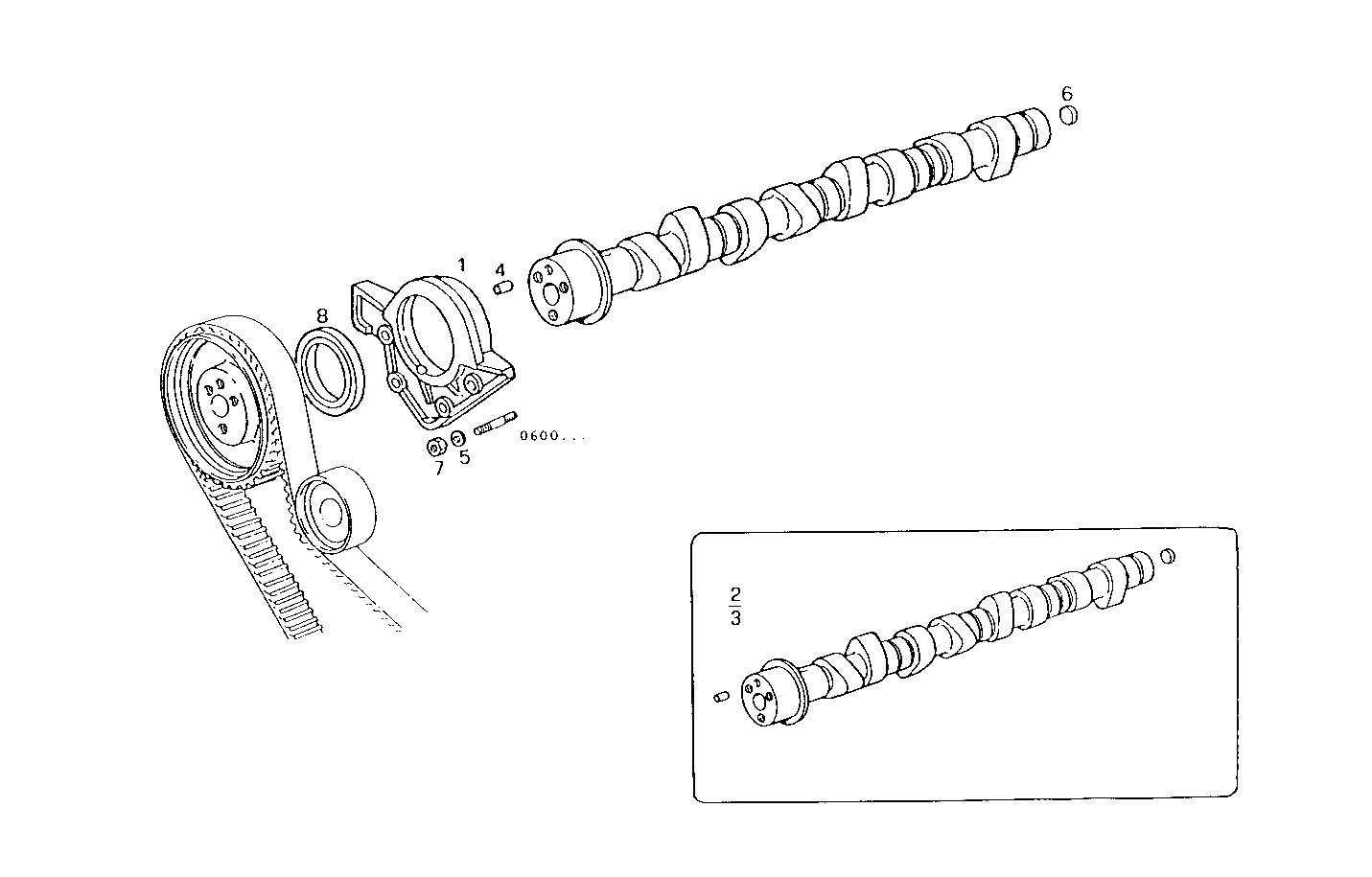

1250.063/01 TIMING PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 98472303 | COVER [from 1815310] |
| 2 | 98466480 | CAMSHAFT ASSY +0,2 MM |
| 3 | 98427674 | CAMSHAFT ASSY |
| 4 | 10839610 | DOWEL PIN Ø8 MM |
| 5 | 11197779 | SPRING WASHER Ø6X12 MM |
| 6 | 14328301 | LOCK PLUG Ø12 MM |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 98454041 | OIL RETAINER |
