8141SRC20.00

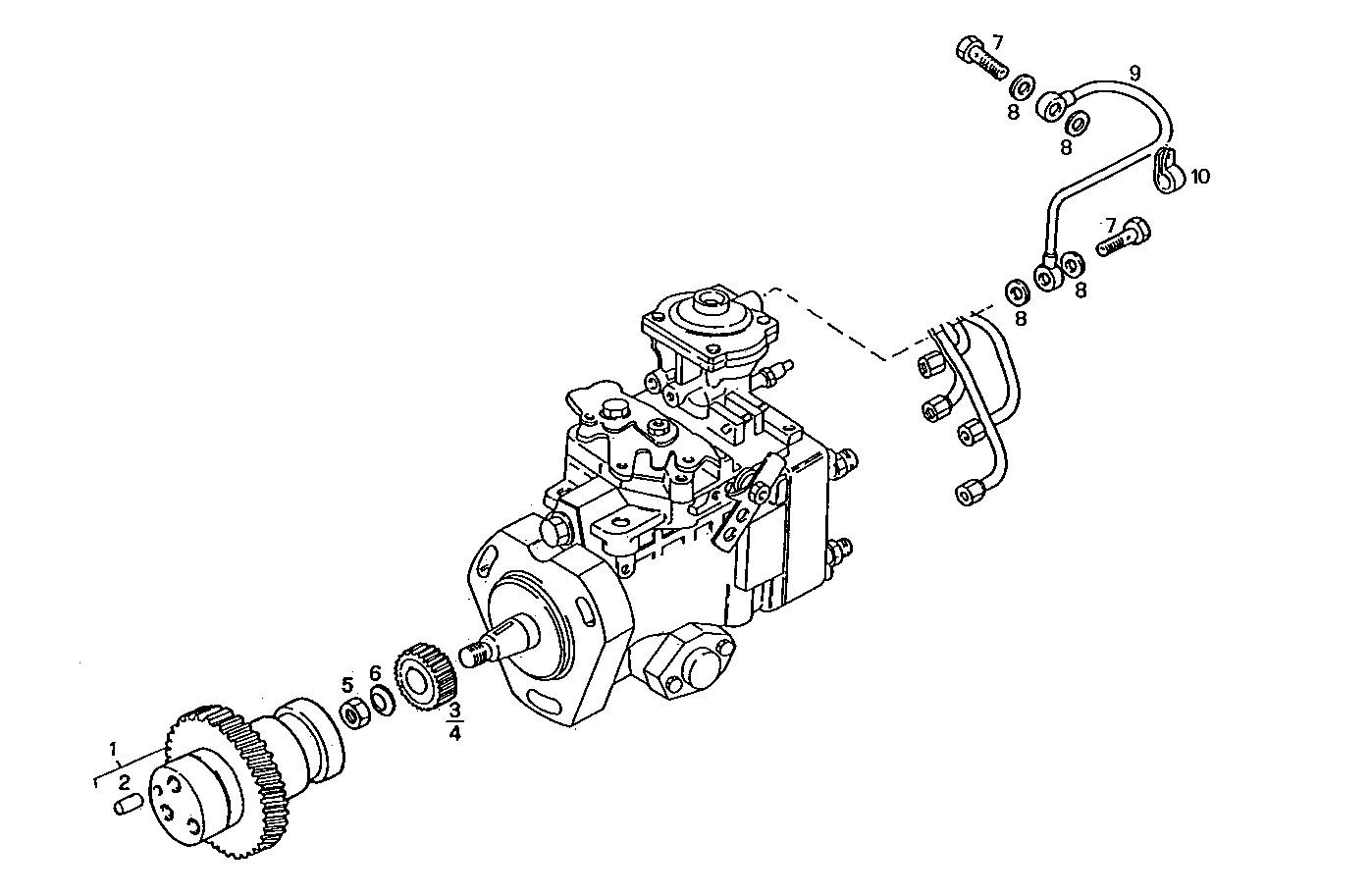

1410.097 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 99483335 INJECT.PUMP SPIND ASSY
2 10335910 PARALLEL PIN
3 4772022 INJECT.PUMP BUSH 197° 30' [from 1992415]
4 4797226 INJECT.PUMP BUSH 200° 30' [from 1992415]
5 17043231 NUT M14X1,5
6 768389 CIRCLIP
7 11904011 SCREW CONNECTOR
8 10262760 SEAL GASKET Ø8,2 MM
9 7302725 FUEL LINE
10 10449890 PIPE CLIP Ø53 MM
