8141SRC20.00

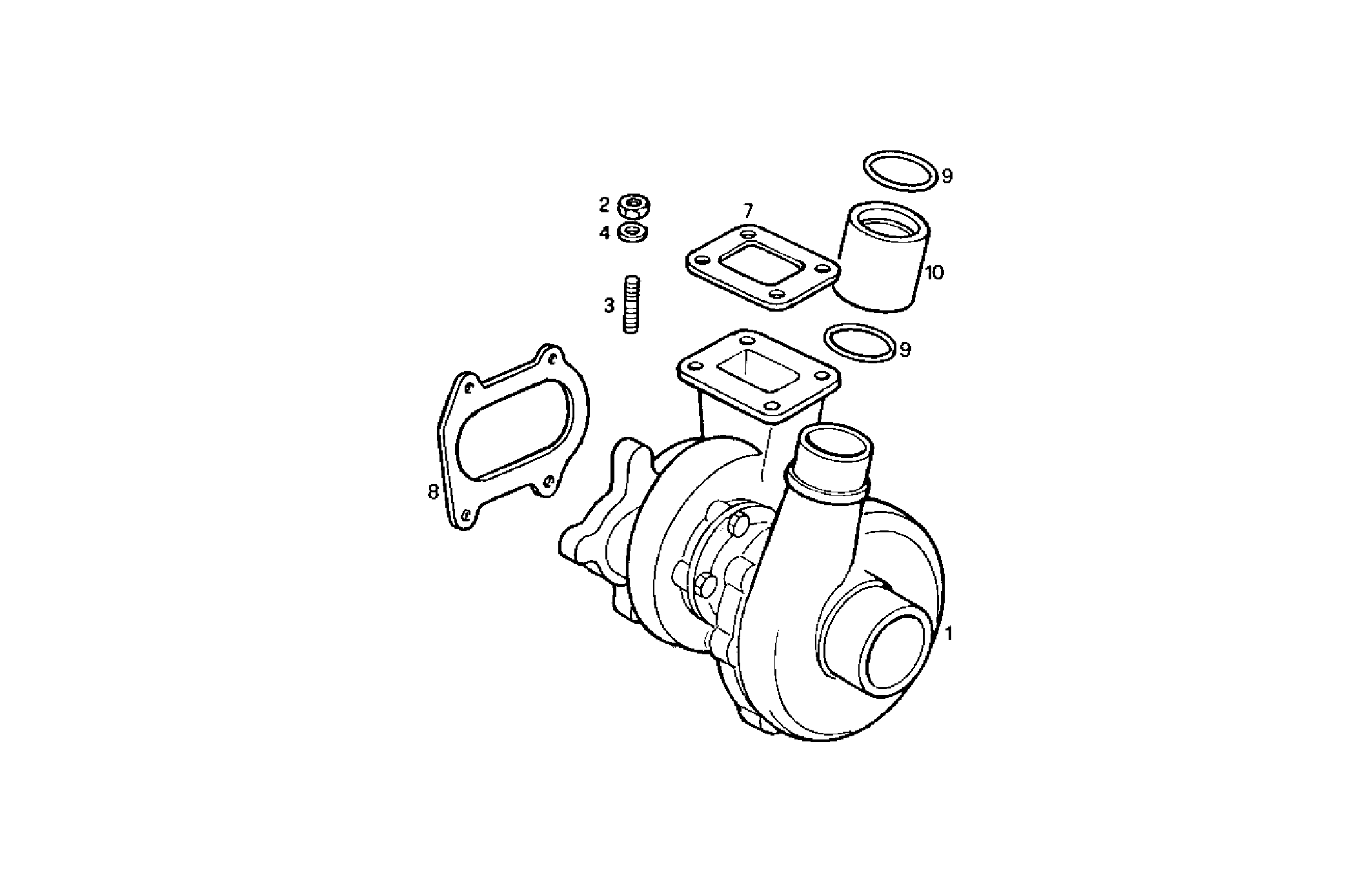

2400.129 TURBOCHARGER
Item | Part number | Description |
---|---|---|
1 | 500339215 | TURBOCHARGER ASSY |
2 | 14061711 | HEXAGON NUT M8 |
3 | 98492637 | STUD M8X12X27 MM |
4 | 17094914 | WASHER 8x16 |
7 | 99436990 | FLAT ENGINE GASKET |
8 | 98484659 | FLAT ENGINE GASKET |
9 | 14464381 | O-RING Ø3,55X47,22 MM |
10 | 7302186 | CONNECTOR SLEEVE |
