8141SRC20.00

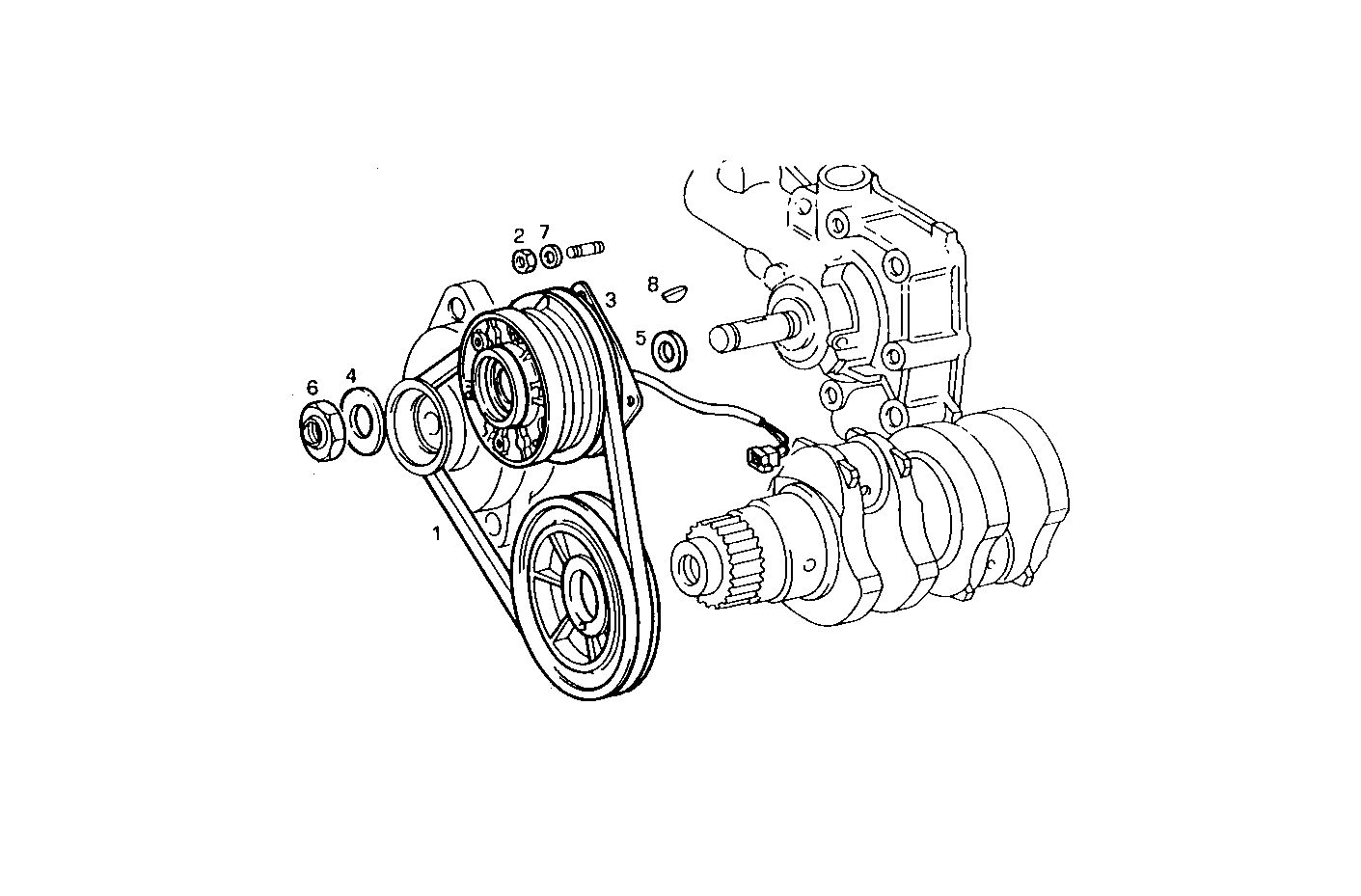

3240.088 PULLEYS AND BELTS

Iveco/FPT PULLEYS AND BELTS

Item Part number Description
1 99454341 V-BELT
2 17037821 HEXAGON NUT M6X1
3 98439413 PULLEY
4 17092074 SPRING WASHER Ø14X32 MM SP=4 MM
5 98437565 WASHER Ø25 MM
6 98446151 HEXAGON NUT
7 11197774 WASHER Ø6 MM
8 10205710 KEY 3X5 MM
