8141SRC20.00

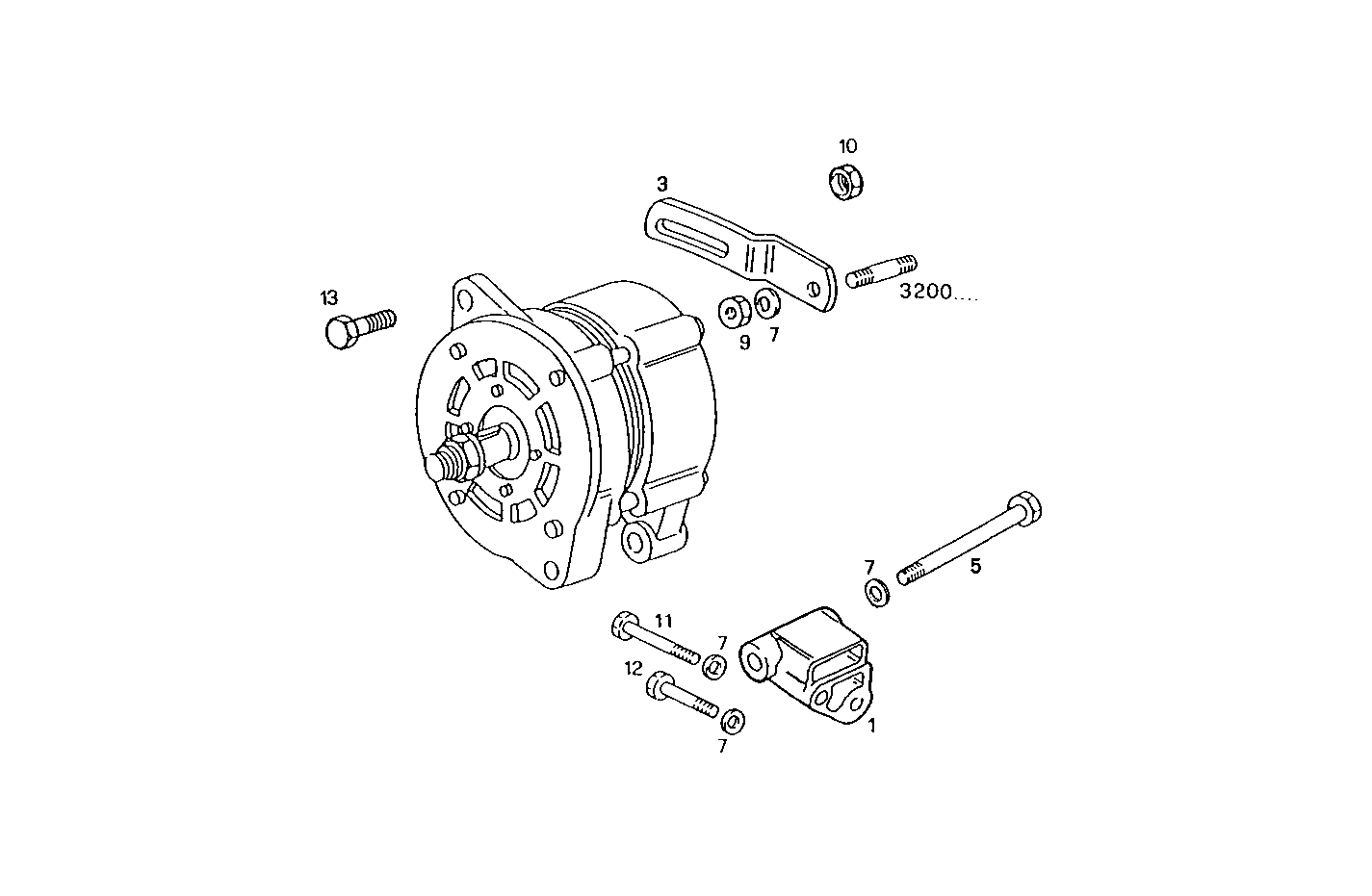

4010.077 MOUNT
Item | Part number | Description |
---|---|---|
1 | 99446227 | GENERATOR SUPPORT BUNDY |
3 | 99449305 | BELT TENSIONER [from 2182944] |
5 | 15541721 | HEXAGON BOLT M12X1,25X110 MM |
7 | 17095104 | WASHER Ø10X21X2 MM |
9 | 17038221 | HEXAGON NUT M10 |
10 | 12574511 | NUT M10X1,25 |
11 | 16608424 | SCREW M10X1,25X65 |
12 | 15970924 | HEXAGON BOLT M10X1,25X35 MM |
13 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
