8149.03.3791

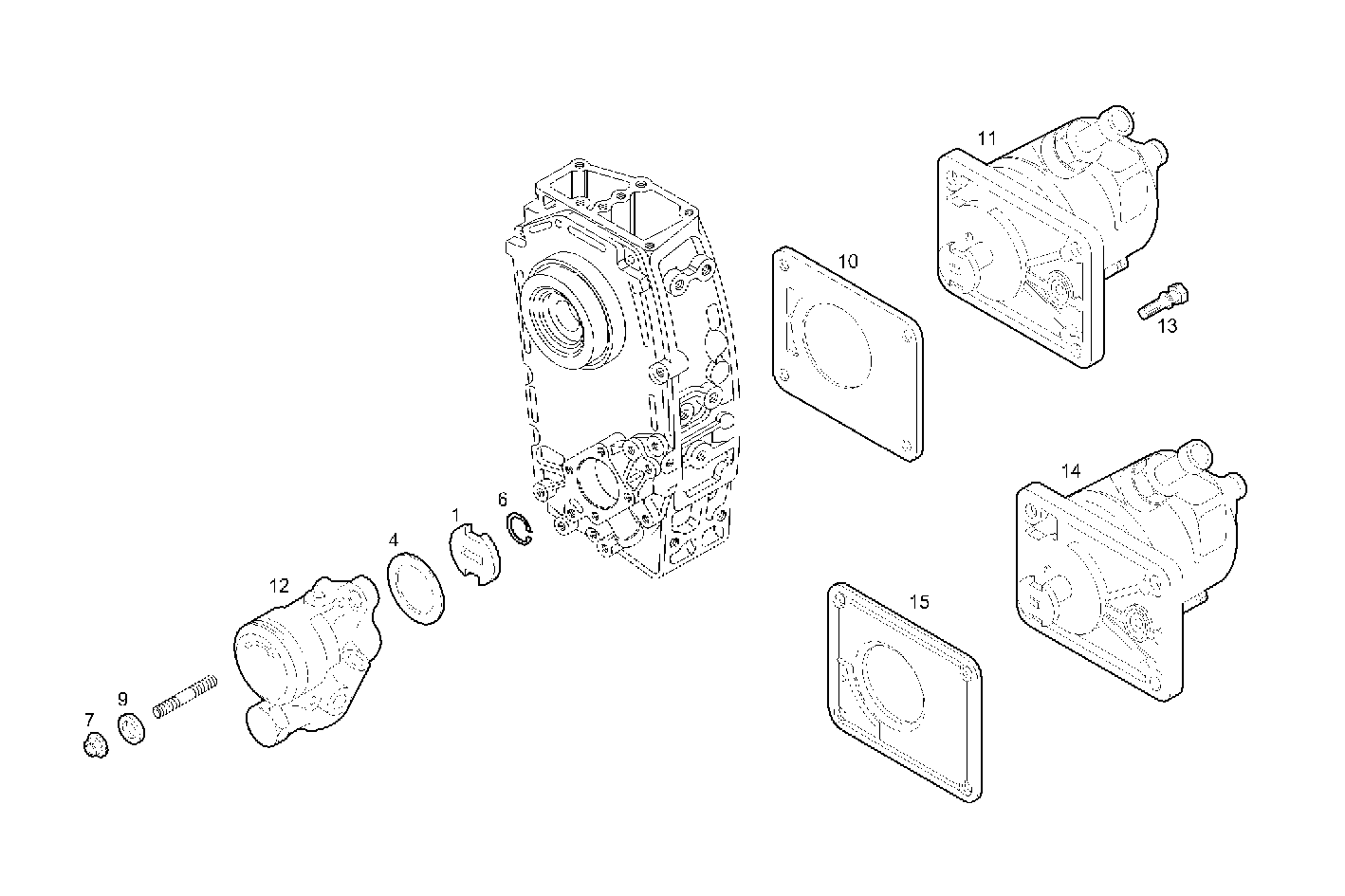

4260.026 VACUUM PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4702044 | NOTCHED PLATE |
| 4 | 17283881 | O-RING Ø48,9 MM |
| 6 | 16865773 | CIRCLIP Ø15,7 MM |
| 7 | 17038221 | HEXAGON NUT M10 |
| 9 | 17090074 | SPRING WASHER Ø10X20X1,9 MM |
| 10 | 500310543 | FLAT ENGINE GASKET |
| 11 | 99487145 | VACUUM PUMP [UP TO # 3268719] |
| 12 | 99447054 | VACUUM PUMP |
| 13 | 11628124 | SCREW [from 1552662] |
| 14 | 504019972 | VACUUM PUMP |
| 15 | 504072342 | FLAT ENGINE GASKET [FROM # 3268720] |
