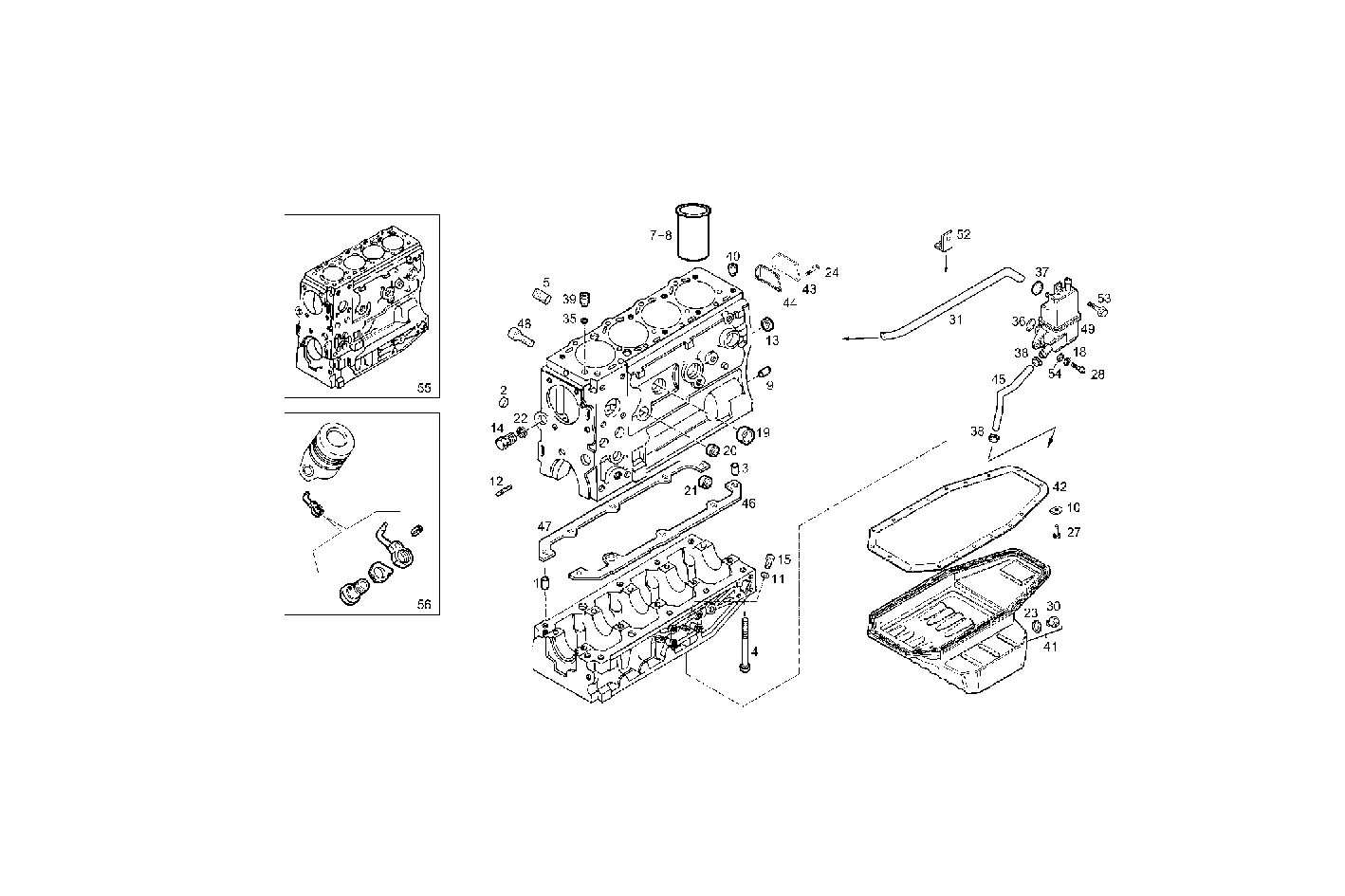

| Item |
Part number |
Description |
|
1 |
4279387 |
CENTERING RING |
|
2 |
98405182 |
DOWEL PIN Ø11 MM |
|
3 |
4724790 |
DOWEL PIN |
|
4 |
4792169 |
SCREW |
|
5 |
10269601 |
THREADED PLUG M16X1,5 |
|
7 |
99435938 |
CYLINDER LINER STD. |
|
8 |
99443784 |
CYLINDERLINER +0.2 |
|
9 |
7300019 |
DOWEL PIN |
|
10 |
7300648 |
LOCKING PLATE |
|
11 |
10261060 |
GASKET Ø12X16 MM SP=1,5 MM |
|
12 |
7301674 |
STUD |
|
13 |
7301976 |
PLUG Ø16 MM |
|
14 |
7303457 |
THREADED PLUG |
|
15 |
11903211 |
LOCK PLUG M12X1,25 |
|
18 |
12646721 |
WASHER Ø8X20 MM |
|
19 |
14282870 |
LOCK PLUG Ø40 MM |
|
20 |
14328901 |
LOCK PLUG Ø25 MM |
|
21 |
14329001 |
LOCK PLUG Ø28 MM |
|
22 |
16508360 |
WASHER 18x22x1,5 |
|
23 |
16508460 |
WASHER 22x27x1,5 |
|
24 |
16586225 |
HEXAGON BOLT M8X1,25X16 MM |
|
27 |
16605424 |
SCREW M8X16 MM (8.8) |
|
28 |
16673635 |
HEXAGON BOLT M8X1.25X20 |
|
30 |
16993411 |
THREADED PLUG M22X1,5 |
|
31 |
500319931 |
RUBBER SLEEVE L=550 MM |
|
35 |
17277981 |
O-RING 1,78x9,25 |
|
36 |
17289681 |
O-RING Ø44 MM SP=3,53 MM |
|
37 |
18088292 |
CLIP Ø12/20 MM |
|
38 |
17764594 |
HOSE CLIP |
|
39 |
98418753 |
DOWEL PIN [from 1533081] |
|
40 |
98418754 |
DOWEL PIN |
|
41 |
98420643 |
OIL SUMP ASSY |
|
42 |
99488483 |
OIL SUMP GASKET |
|
43 |
98471295 |
COVER [from 2122618] |
|
44 |
500329970 |
FLAT ENGINE GASKET SP=0,4 MM |
|
45 |
98493760 |
RUBBER SLEEVE |
|
46 |
99432807 |
FLAT ENGINE GASKET LEFT [from 2122618] |
|
47 |
99432808 |
FLAT ENGINE GASKET RIGHT [from 2122618] |
|
48 |
500324832 |
SOCKET-HEAD SCREW |
|
49 |
98478412 |
BREATHER |
|
52 |
7301026 |
FASTENING BRACKET |
|
53 |
16585624 |
HEXAGON BOLT M6X12 MM |
|
54 |
1107283 |
SPRING WASHER Ø8,4X15 MM |
|
55 |
99477104 |
CRANKCASE ASSY |
|
56 |
500369466 |
OIL NOZZLE |
