8149.03.3795

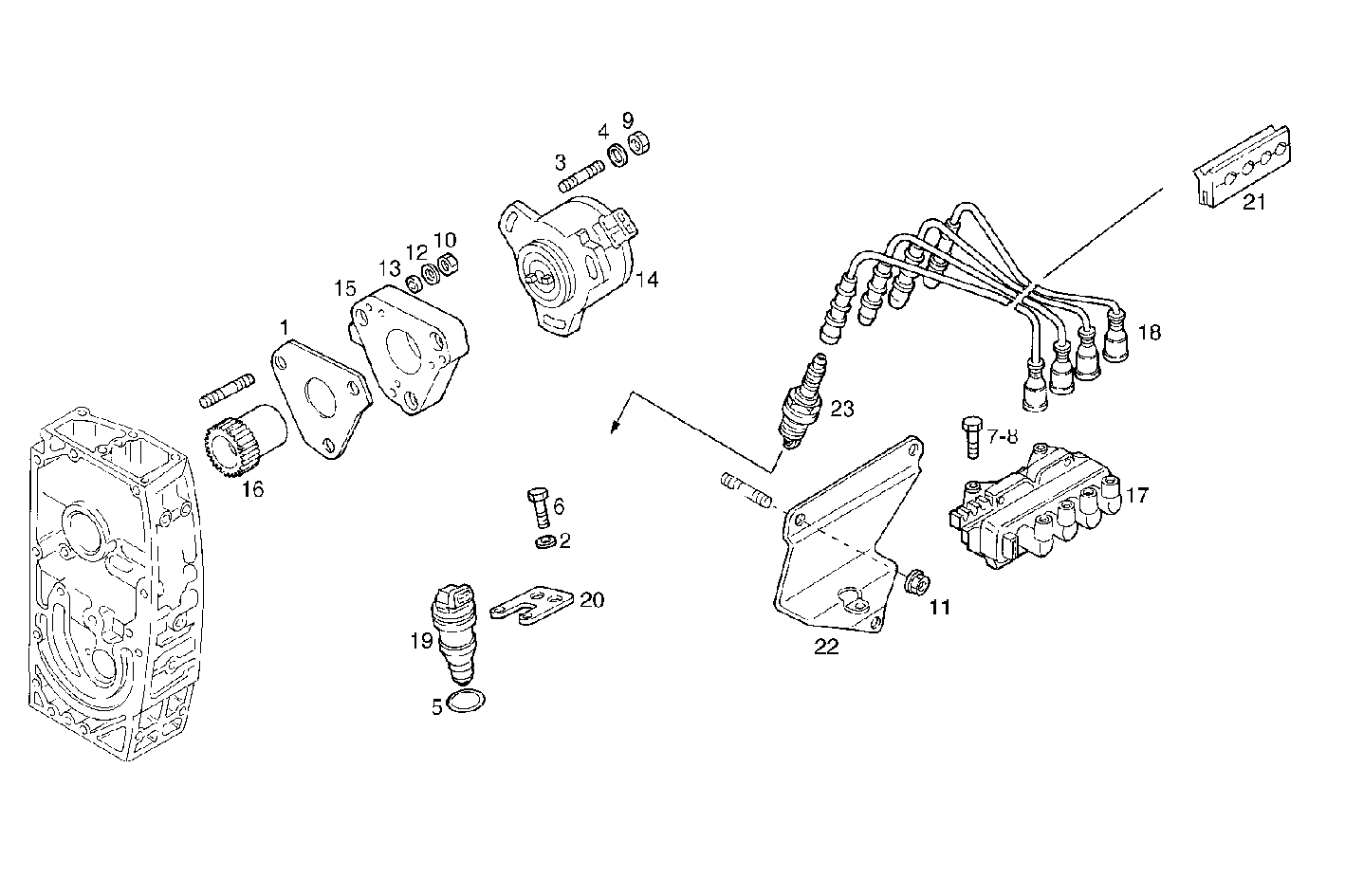

2800.013 IGNITION CONTROL - SPARK PLUGS
| Item | Part number | Description |
|---|---|---|
| 1 | 4851923 | FLAT ENGINE GASKET |
| 2 | 11181574 | WASHER Ø5X11 MM SP=0,9 MM |
| 3 | 11500221 | STUD M6X9X16 MM |
| 4 | 12646624 | WASHER |
| 5 | 14453180 | O-RING |
| 6 | 16602024 | SCREW M5X12 MM (8.8) |
| 7 | 16604421 | HEXAGON BOLT M6X55 MM |
| 8 | 16604824 | HEXAGON BOLT M6X80 MM |
| 9 | 17037821 | HEXAGON NUT M6X1 |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
| 11 | 17044735 | NUT M8 |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 17094914 | WASHER 8x16 |
| 14 | 500309810 | SENSOR |
| 15 | 500309811 | SUPPORT |
| 16 | 500309812 | BUSH-TOOTHED |
| 17 | 500309816 | IGNITION COIL |
| 18 | 500309828 | SET OF WIRING |
| 19 | 504086183 | GAS MOTOR ELECT.INJ. |
| 20 | 500364329 | RETAINER |
| 21 | 500330037 | DOWEL |
| 22 | 500330301 | FASTENING BRACKET |
| 23 | 500334642 | SPARK PLUG |
