8149.03.4000

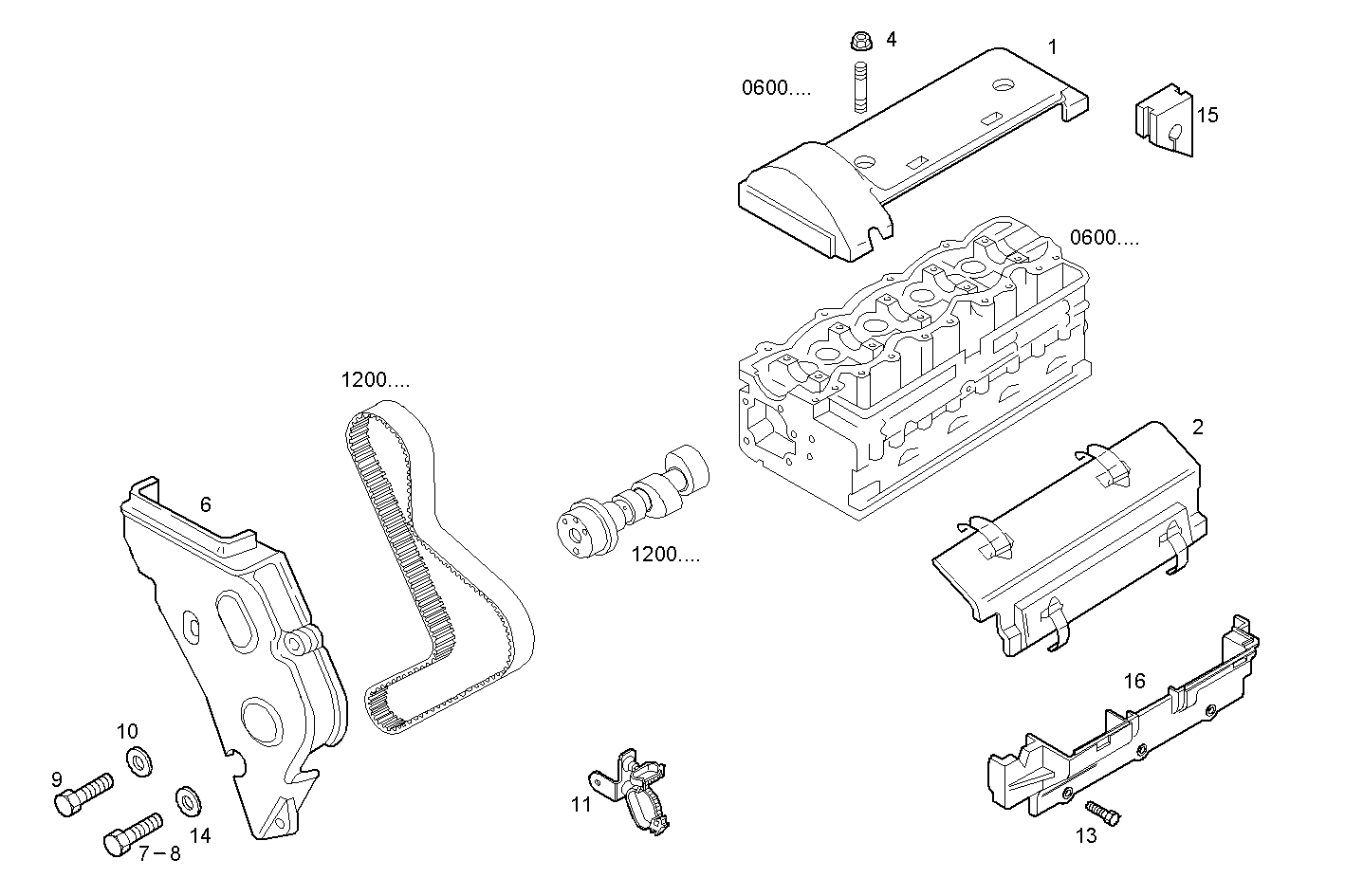

4620.014 ASSY SOUND PROOFING
Item | Part number | Description |
---|---|---|
1 | 99471017 | CYL. HEAD COVER |
2 | 99471006 | SIDE COVER |
4 | 98439382 | NUT |
6 | 504022580 | COVER |
7 | 16296924 | HEXAGON BOLT |
8 | 16585925 | HEXAGON BOLT M6X25 MM |
9 | 99485223 | HEXAGON BOLT M6X70 MM |
10 | 12647724 | WASHER Ø6X21 MM SP=1 MM |
11 | 500349212 | FASTENING BRACKET |
13 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
14 | 12646624 | WASHER |
15 | 500326627 | CHOCK |
16 | 500316894 | SIDE COVER |
