8149.03.4030

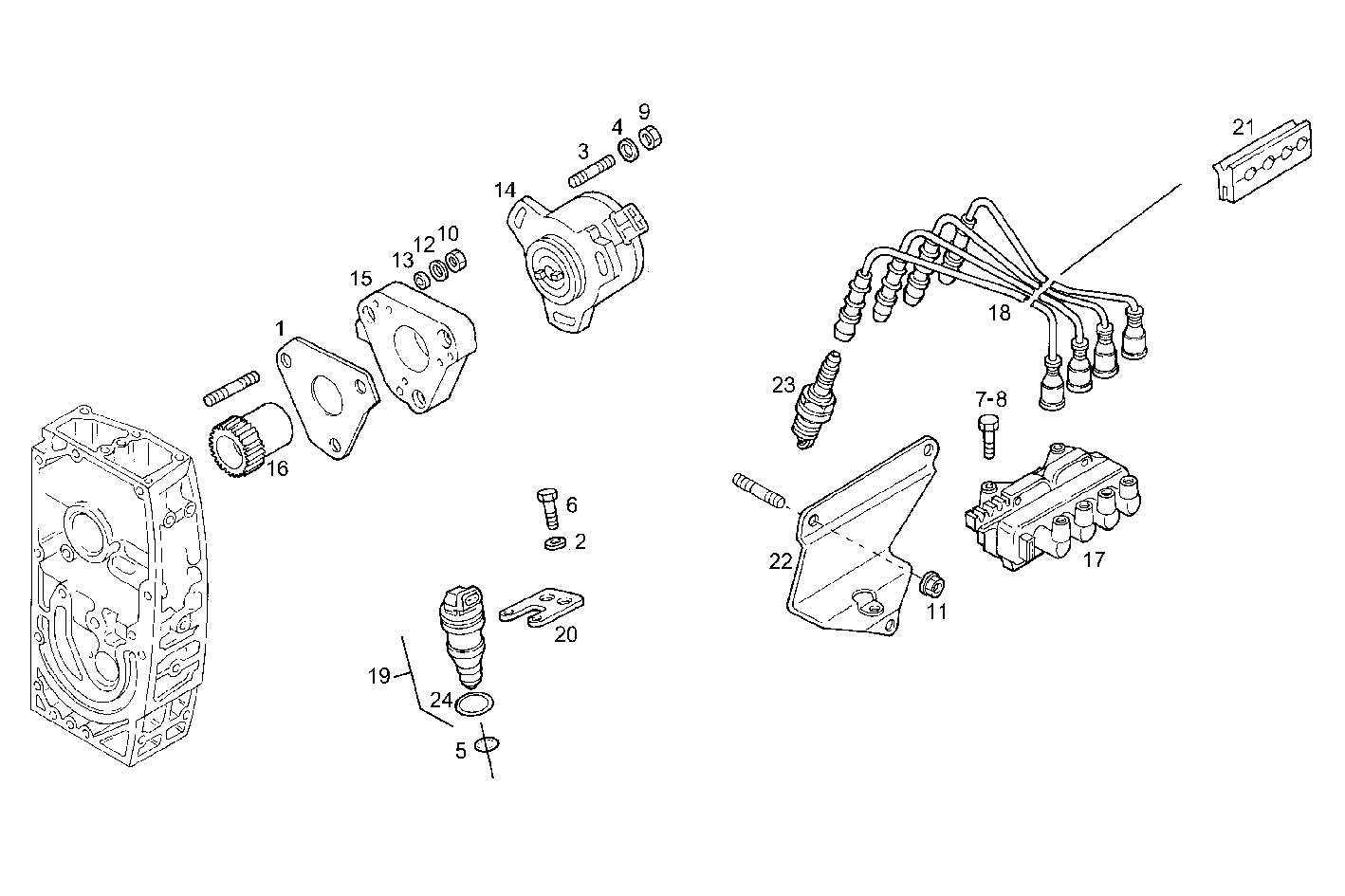

2800.012 IGNITION CONTROL - SPARK PLUGS

Iveco/FPT IGNITION CONTROL - SPARK PLUGS

Item Part number Description
1 4851923 FLAT ENGINE GASKET
2 11181574 WASHER Ø5X11 MM SP=0,9 MM
3 11500221 STUD M6X9X16 MM
4 12646624 WASHER
5 14453180 O-RING
6 16602024 SCREW M5X12 MM (8.8)
7 16604421 HEXAGON BOLT M6X55 MM
8 16604824 HEXAGON BOLT M6X80 MM
9 17037821 HEXAGON NUT M6X1
10 17037931 HEXAGON NUT M8X1,25
11 17044735 NUT M8
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 17094914 WASHER 8x16
14 500309810 SENSOR
15 500309811 SUPPORT
16 500309812 BUSH-TOOTHED
17 500309816 IGNITION COIL
18 500309828 SET OF WIRING
19 504086183 GAS MOTOR ELECT.INJ.
20 500364329 RETAINER
21 500330037 DOWEL
22 500330301 FASTENING BRACKET
23 500334642 SPARK PLUG
24 42550393 O-RING
