8149.03.4030

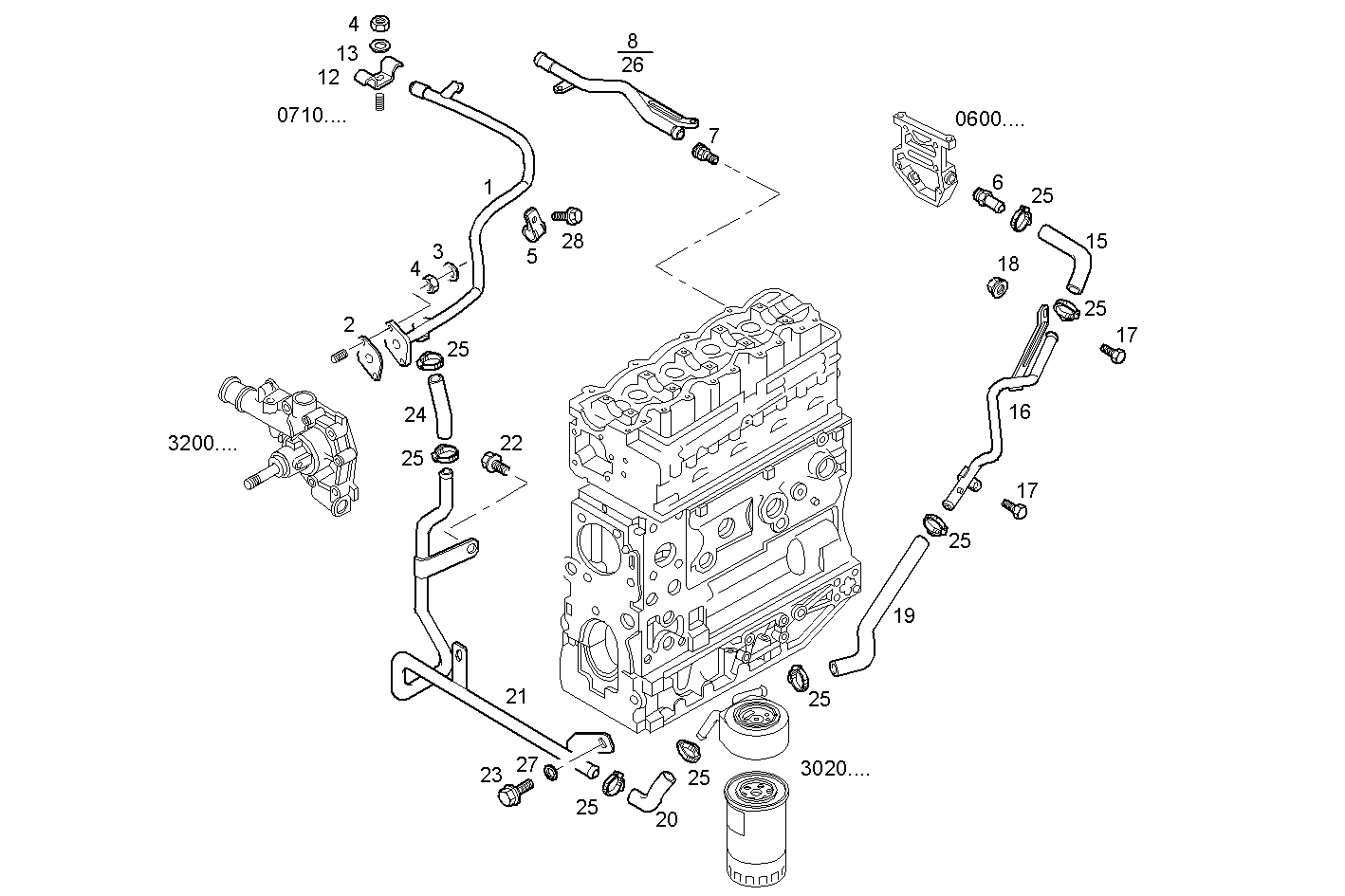

3210.333 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 500316487 WATER PIPE
2 98430478 FLAT ENGINE GASKET SP=1,6 MM
3 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
4 17037931 HEXAGON NUT M8X1,25
5 10450690 PIPE CLIP Ø20 MM
6 99447076 CONNECTION PIPE
7 500328152 THREADED UNION
8 500326889 CONNECTION PIPE
12 500358396 RETAINER
13 17089574 WASHER Ø8X16 MM
15 98433754 RUBBER SLEEVE
16 500363810 WATER PIPE
17 16043024 HEXAGON BOLT M8X12 MM (8.8)
18 17044735 NUT M8
19 99463357 WATER HOSE
20 99463358 HEATEXCHANG.HOSE
21 500387199 WATER PIPE
22 16288424 HEXAGON BOLT M10X1,25X25 MM
23 14331424 SCREW
24 1904633 WATER HOSE Ø16 MM
25 18088392 CLIP Ø16/25 MM
26 504039217 CONNECTION PIPE [FROM # 3487099]
27 500340665 SPACER
28 16673835 HEXAGON BOLT M8X30 MM
