8149G00.10A027

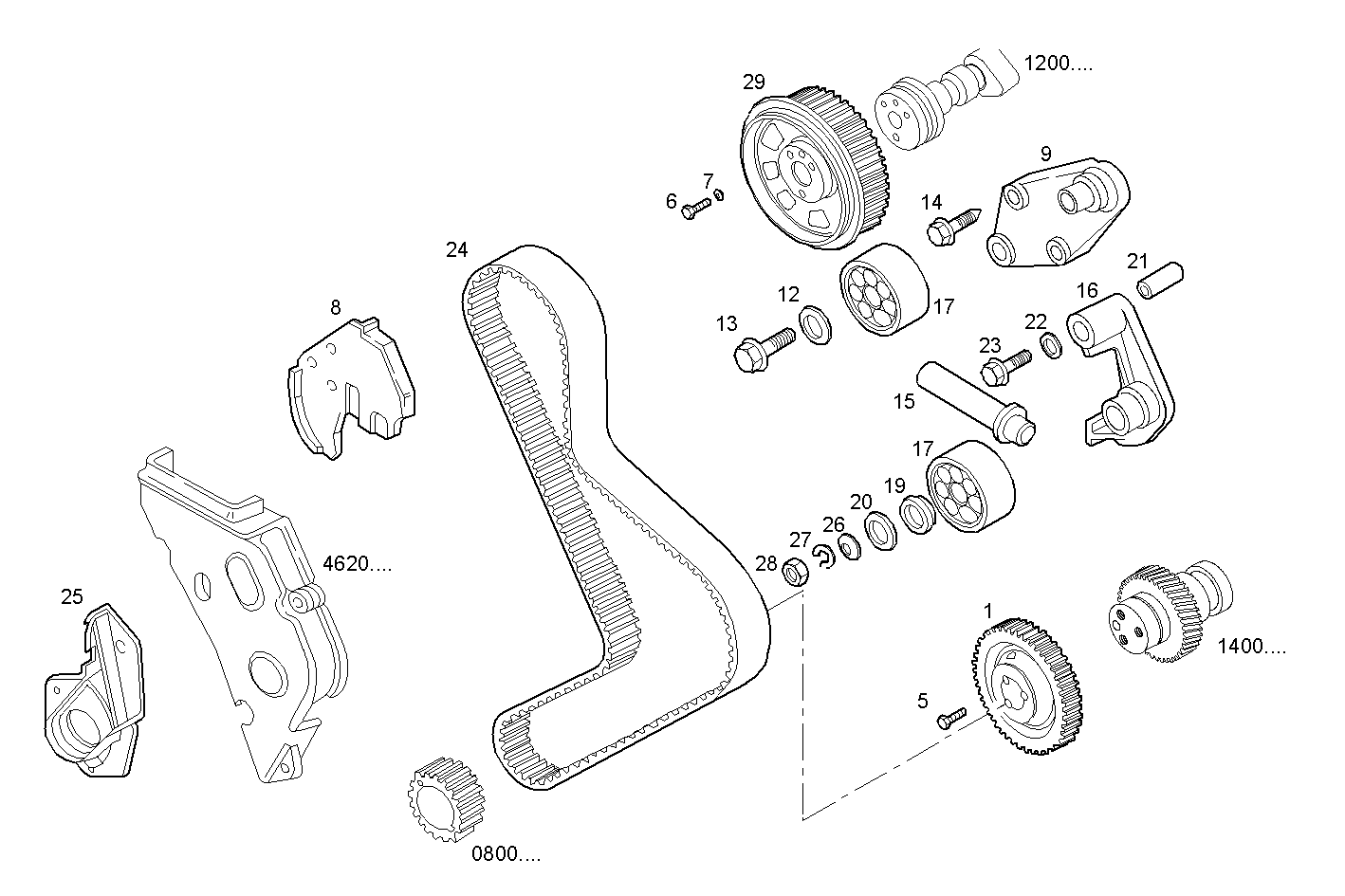

1000.105 GEAR DRIVE

Iveco/FPT GEAR DRIVE

Item Part number Description
1 98415210 INJ.PUMP DRIV.GEA MIBA
5 500372179 LOCKING SCREW M12X1,25X30 MM
6 16605534 HEXAGON BOLT M8X20 MM (10.9)
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 504020088 PROTECTION
9 500358441 SUPPORT
12 99447327 SPACER SP=5 MM [from 1832166]
13 16288424 HEXAGON BOLT M10X1,25X25 MM
14 500342834 HEXAGON BOLT M8X30 MM
15 4279745 BELT TENSIONER
16 500326852 SUPPORT
17 2992484 ENGINE BEARINGS
19 7300035 SPACER RIV-SKF
20 98479895 SPACING BAR [from 1832166]
21 500326919 SPACER SP=8,3 MM
22 12646721 WASHER Ø8X20 MM
23 16592225 HEXAGON BOLT M8X55 MM
24 99456477 TIMING BELT
25 504010962 COVER BOTTOM
26 17097124 WASHER 10x21
27 17798374 SPRING WASHER Ø10,2X18,1 MM
28 17038221 HEXAGON NUT M10
29 504090595 CAMSHAFT PINION
