8149G00.10A027

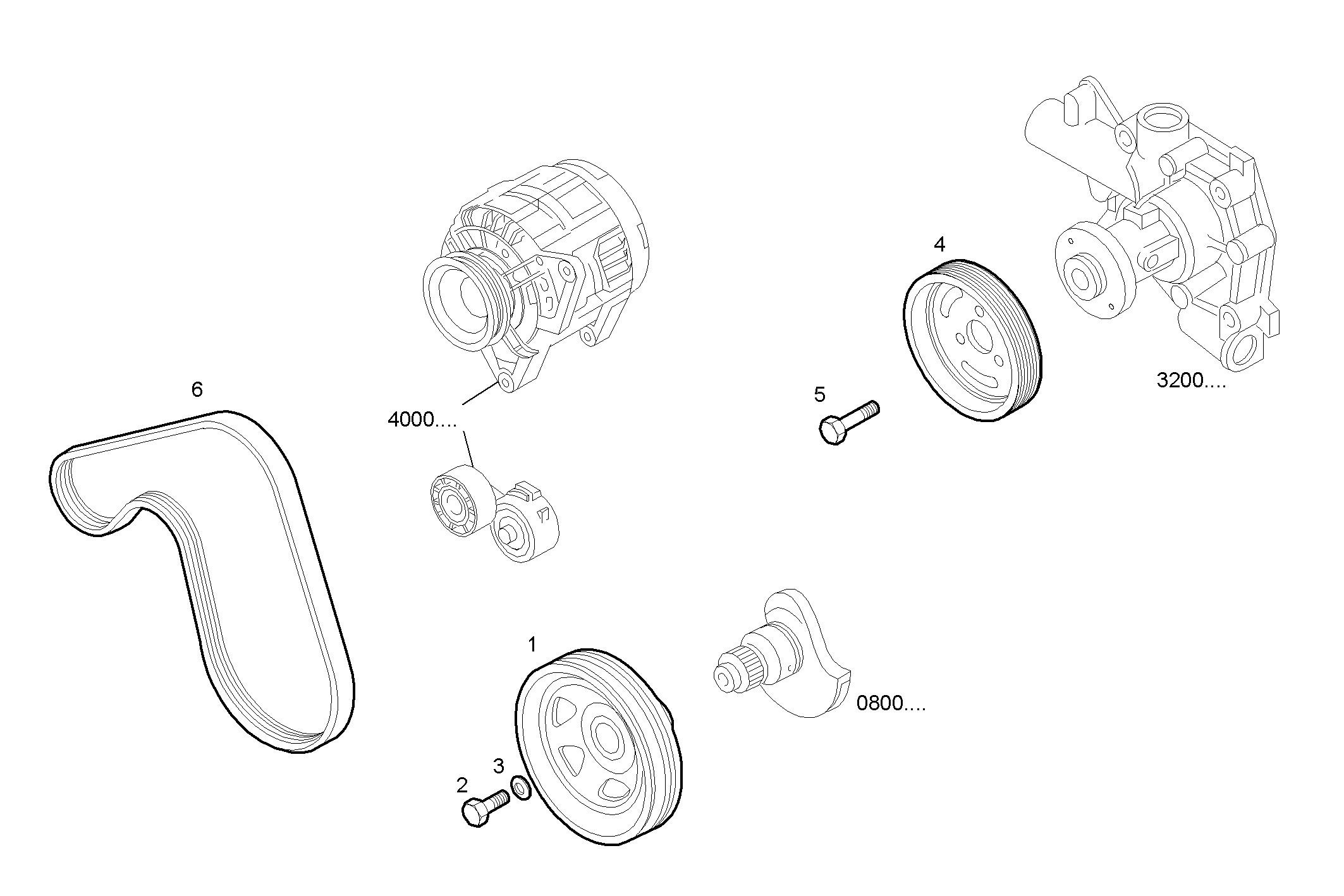

3400.041 WATER PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 500332830 | CRANKSHAFT PULLEY |
| 2 | 98419203 | SCREW M20X1,5X58 MM |
| 3 | 500346011 | SPACING BAR |
| 4 | 504011402 | PULLEY |
| 5 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 6 | 500368902 | WATER PUMP BELT |
