8210G85.00

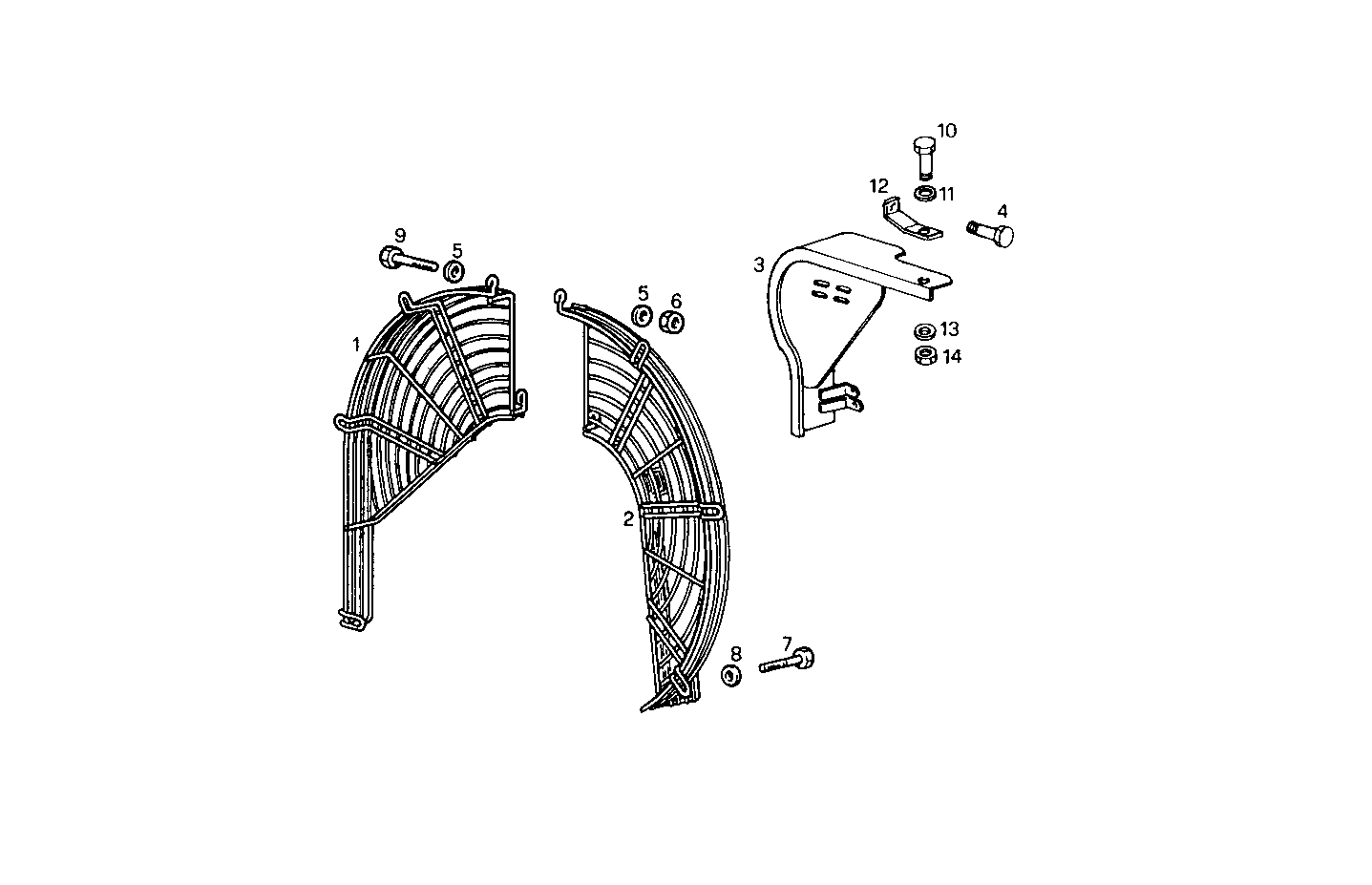

A48010015 GUARD - for fan and belts
Item | Part number | Description |
---|---|---|
1 | 8008669 | PROTECTION RIGHT |
2 | 8027468 | PROTECTION |
3 | 8027458 | PROTECTION FOR GENERATOR |
4 | 16606124 | HEXAGON BOLT M8X50 MM |
5 | 17089771 | WASHER Ø8X22X1,5 MM |
6 | 17037931 | HEXAGON NUT M8X1,25 |
7 | 15970621 | SCREW M10X1,25X22 |
8 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
9 | 16043621 | HEXAGON BOLT M8X25 MM |
10 | 16605734 | HEXAGON BOLT M8X30 MM |
11 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
12 | 8018396 | RETAINER |
13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
