8210i03.00

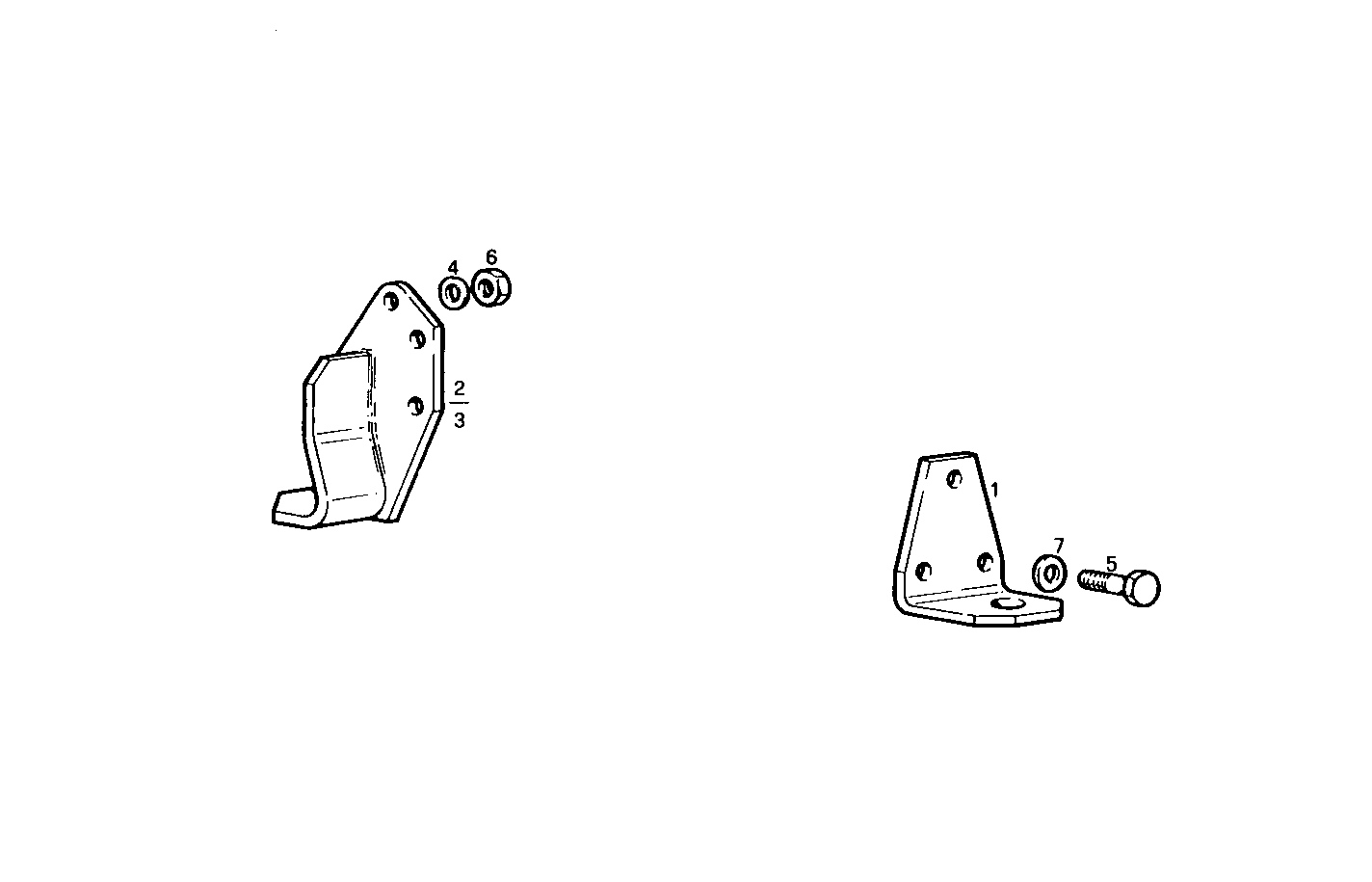

A04000010 RIGID MOUNTING - without radiator
Item | Part number | Description |
---|---|---|
1 | 4930953 | ENGINE SUSPENSION |
2 | 4931157 | ENGINE SUSPENSION RIGHT |
3 | 4931158 | ENGINE SUSPENSION LEFT |
4 | 11200179 | SPRING WASHER Ø14X32 MM |
5 | 11391521 | HEXAGON BOLT M16X45 MM |
6 | 12164011 | HEXAGON NUT M14X1,5 [up to…] |
7 | 11200279 | SPRING WASHER Ø17 MM |
