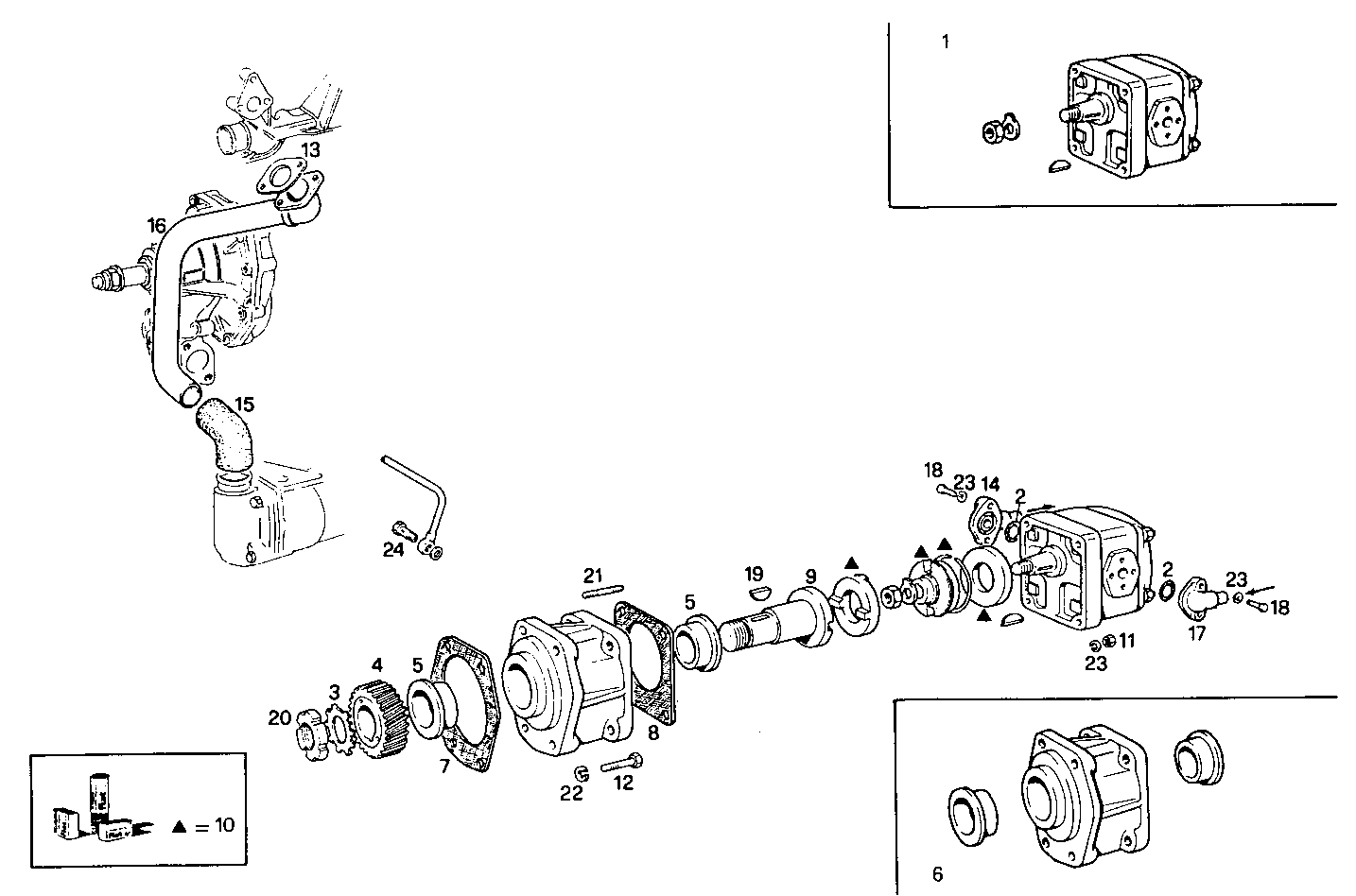

| Item |
Part number |
Description |
|
1 |
5130127 |
LUBE OIL PUMP ASSY PLESSEY A18 |
|
2 |
568170 |
O-RING |
|
3 |
4513025 |
LOCKING PLATE |
|
4 |
4542440 |
OIL PUMP DRIV.GEA |
|
5 |
4542444 |
BUSH |
|
6 |
4551423 |
SUPPORT ASSY |
|
7 |
4863975 |
FLAT ENGINE GASKET |
|
8 |
4538832 |
FLAT ENGINE GASKET |
|
9 |
4673408 |
SHAFT |
|
10 |
8090978 |
KIT-HYDRAULIC PUMP |
|
11 |
15896211 |
HEXAGON NUT M6 |
|
12 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
13 |
4547637 |
FLAT ENGINE GASKET |
|
14 |
4557971 |
PIPE SOCKET |
|
15 |
4928715 |
RUBBER SLEEVE |
|
16 |
4928716 |
WATER PIPE |
|
17 |
4928899 |
OIL LINE |
|
18 |
14305521 |
SCREW M6X30 |
|
19 |
10205920 |
KEY Ø9 MM |
|
20 |
10214110 |
GROOVED NUT |
|
21 |
10980821 |
STUD M6X15X30 MM |
|
22 |
11198379 |
SPRING WASHER Ø10X20 MM SP=2,6 |
|
23 |
11197779 |
SPRING WASHER Ø6X12 MM |
|
24 |
4864078 |
BANJO BOLT M8X1,25 |
