8210i03.00

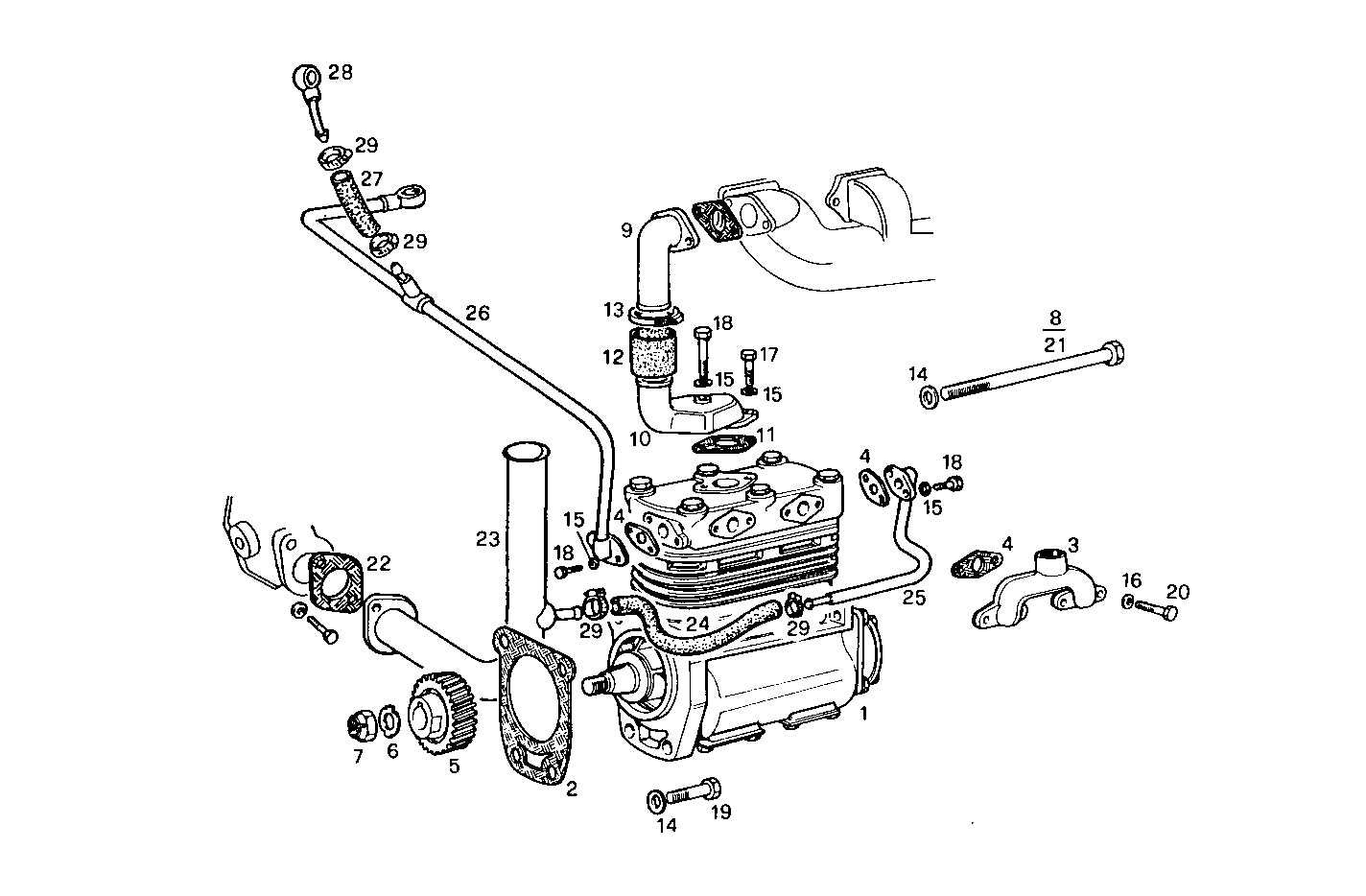

A18060001 AIR COMPRESSOR - 400cc MARELLI
| Item | Part number | Description |
|---|---|---|
| 1 | 99440236 | AIR COMPRESSOR ASSY |
| 2 | 4864032 | FLAT ENGINE GASKET |
| 3 | 4717885 | CONNECTING PIPE |
| 4 | 4644451 | FLAT ENGINE GASKET |
| 5 | 4710274 | COMP. DRIVE GEAR |
| 6 | 4709364 | LOCKING PLATE |
| 7 | 99471892 | HEXAGON NUT |
| 8 | 4649239 | SCREW |
| 9 | 4705842 | PIPE |
| 10 | 4705843 | INTAKE ELBOW |
| 11 | 4527400 | FLAT ENGINE GASKET |
| 12 | 10130785 | RUBBER SLEEVE |
| 13 | 12174090 | HOSE CLIP Ø32-52 MM |
| 14 | 17090274 | WASHER Ø10X20 MM |
| 15 | 11198071 | SPRING WASHER Ø8X15 SP=1,4 MM |
| 16 | 14496501 | WASHER Ø8,5 MM |
| 17 | 16044224 | SCREW M8X50 MM |
| 18 | 16605524 | HEXAGON BOLT M8X20 MM |
| 19 | 15888734 | HEXAGON BOLT M10X1,25X55 MM |
| 20 | 16043621 | HEXAGON BOLT M8X25 MM |
| 21 | 98434329 | HEXAGON BOLT |
| 22 | 4606094 | FLAT ENGINE GASKET |
| 23 | 4653603 | WATER PIPE |
| 24 | 4787287 | WATER HOSE |
| 25 | 4936411 | WATER PIPE |
| 26 | 8012781 | WATER PIPE |
| 27 | 19056587 | RUBBER HOSE Ø6 MM |
| 28 | 8012780 | PIPE SOCKET |
| 29 | 12179190 | CLIP Ø11 MM |
