8210i03.00

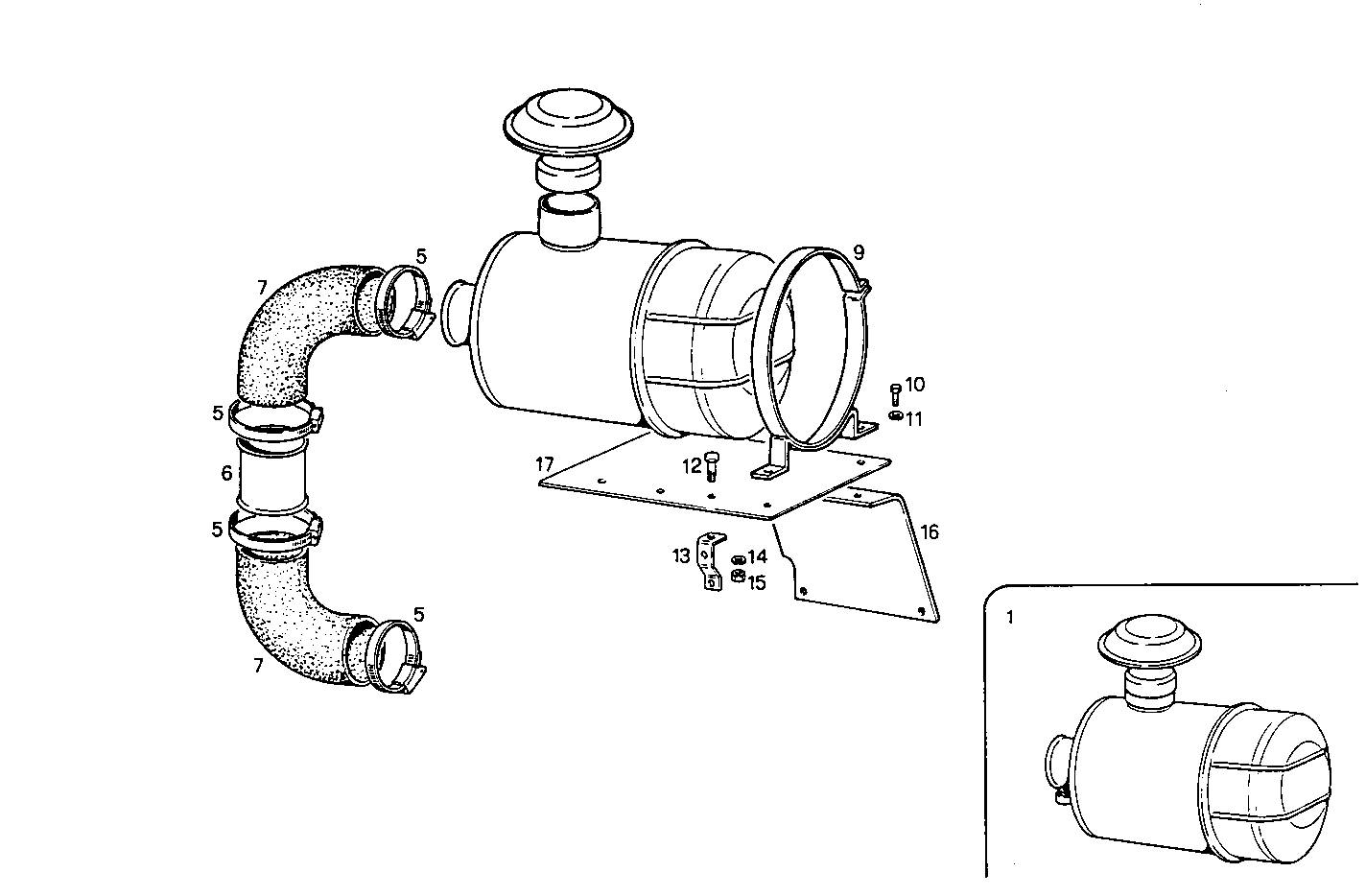

A21170047 DRY AIR CLEANER - with mechanical clogging gauge - manual genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8106913 | AIR CLEANER ASSY |
| 5 | 17765692 | CLIP Ø120/140 MM |
| 6 | 8006313 | AIR PIPE/DUCT |
| 7 | 8006312 | FILTER HOSE |
| 9 | 8106400 | CLIP |
| 10 | 15540321 | HEXAGON BOLT M12X1,25X25 MM |
| 11 | 11190879 | SPRING WASHER Ø12X30X3,0 MM |
| 12 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 13 | 8107871 | RETAINER |
| 14 | 11198479 | SPRING WASHER Ø10X27 MM SP=2,8 |
| 15 | 12164711 | HEXAGON NUT M10X1,25 |
| 16 | 8006311 | RETAINER |
| 17 | 8006310 | SUPPORT |
