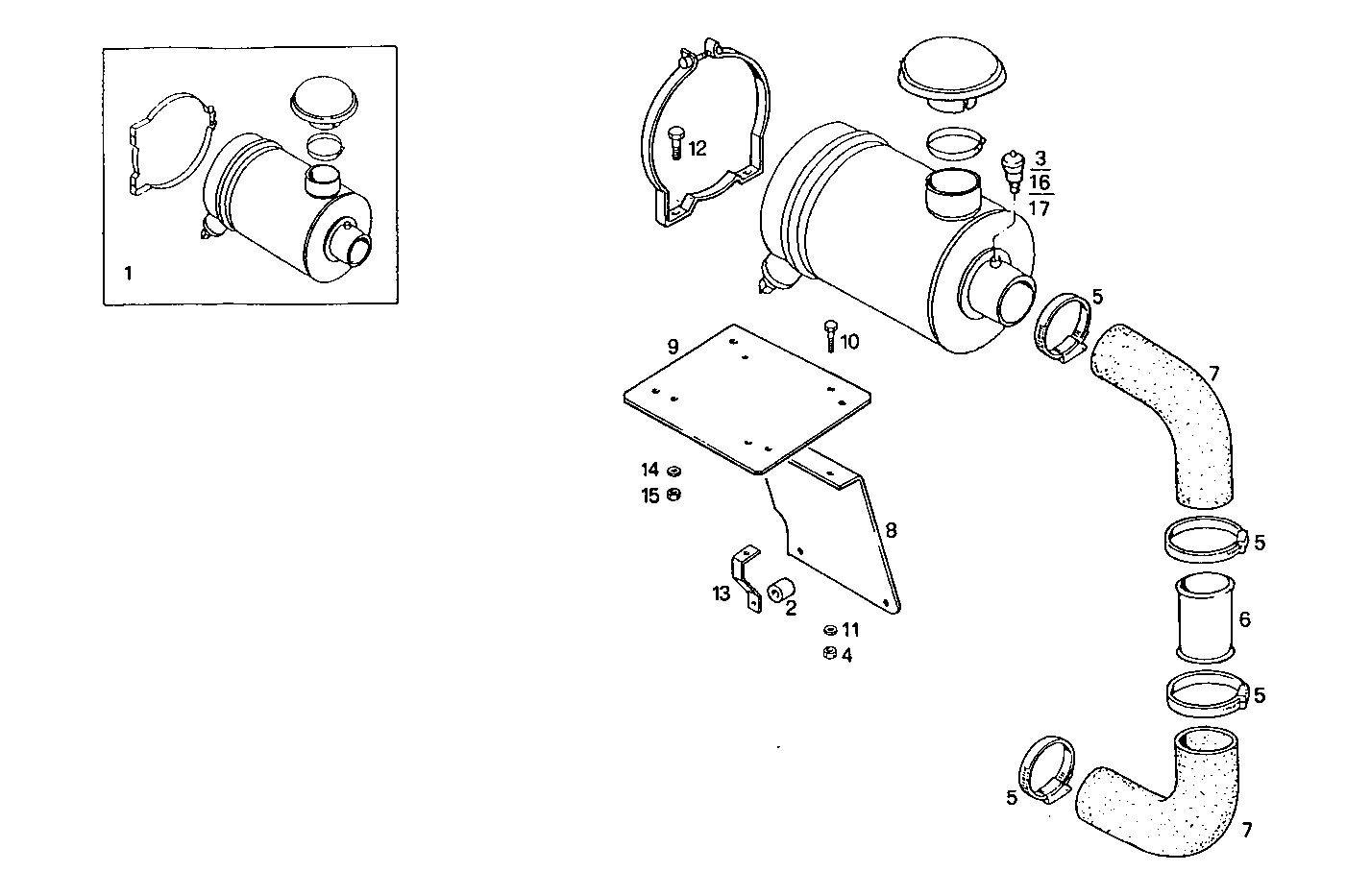

Item |
Part number |
Description |
1 |
8016663 |
AIR CLEANER ASSY |
2 |
4930712 |
SPACING BAR |
3 |
4936137 |
CHOCKED FILTER INDIC. MECHANICAL |
4 |
17038121 |
HEXAGON NUT M10 |
5 |
17765691 |
CLIP Ø120/140 MM |
6 |
8006313 |
AIR PIPE/DUCT |
7 |
8006312 |
FILTER HOSE |
8 |
8006311 |
RETAINER |
9 |
8018681 |
SUPPORT |
10 |
16607624 |
SCREW M10X25 |
11 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
12 |
16609824 |
HEXAGON BOLT M12X1,75X25 MM |
13 |
8107871 |
RETAINER |
14 |
17091374 |
SPRING WASHER Ø12X30X3,0 MM |
15 |
17038421 |
HEXAGON NUT M12 (8) |
16 |
8022540 |
CHOCKED FILTER INDIC. MECHANICAL |
17 |
8027294 |
CHOCKED FILTER INDIC. MECHANICAL |
