8210i03.00

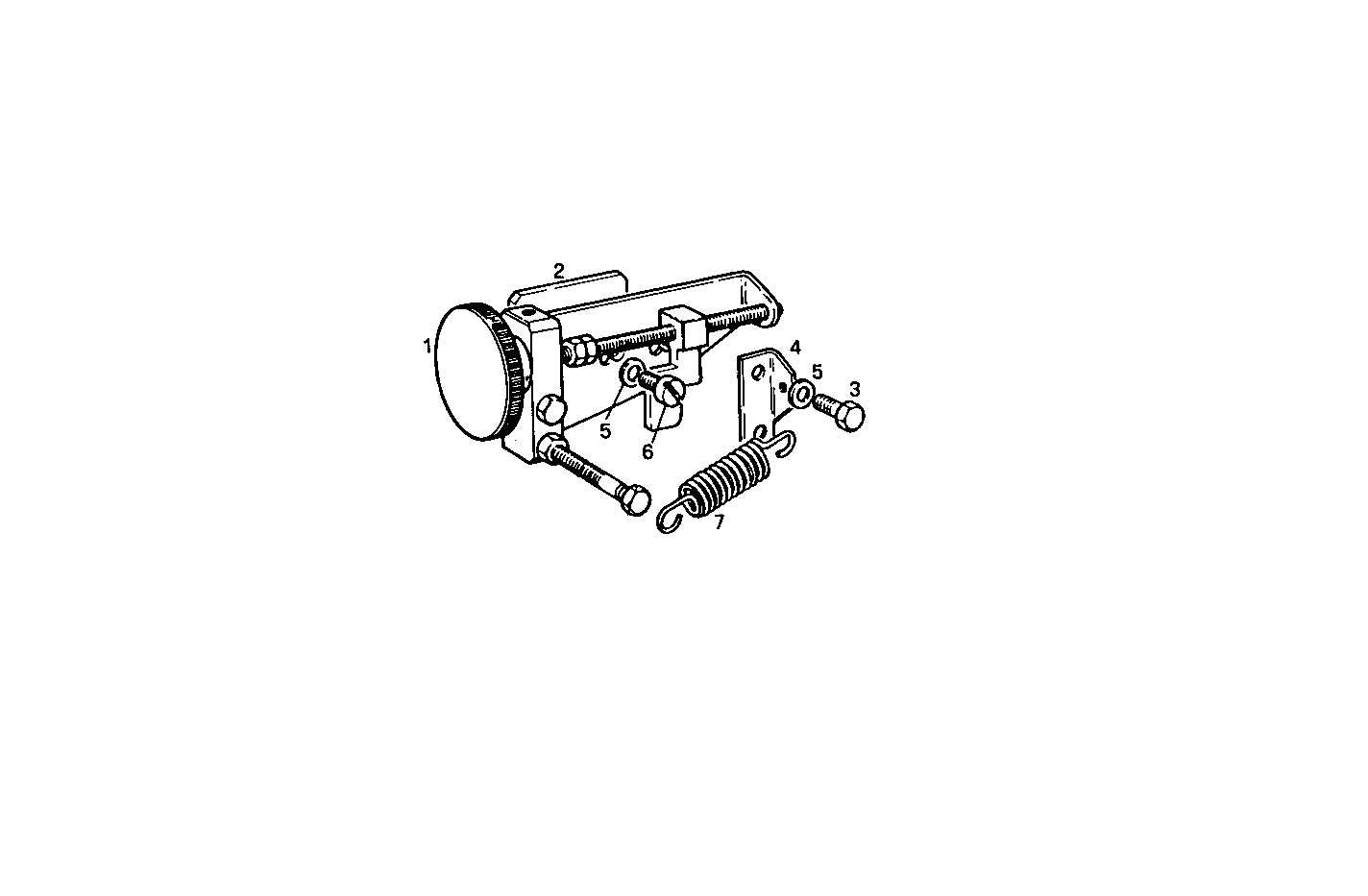

A24060005 PRECISION ADJUSTMENT ACCELERATOR - genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8108373 | HAND ACCELERATOR |
| 2 | 8108374 | SPACING BAR |
| 3 | 10902121 | HEXAGON BOLT M6X14 MM |
| 4 | 8105825 | RETAINER |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 10376711 | CYLIND-HEAD SCREW M6X16 MM (4.8) |
| 7 | 8104855 | SPRING |
