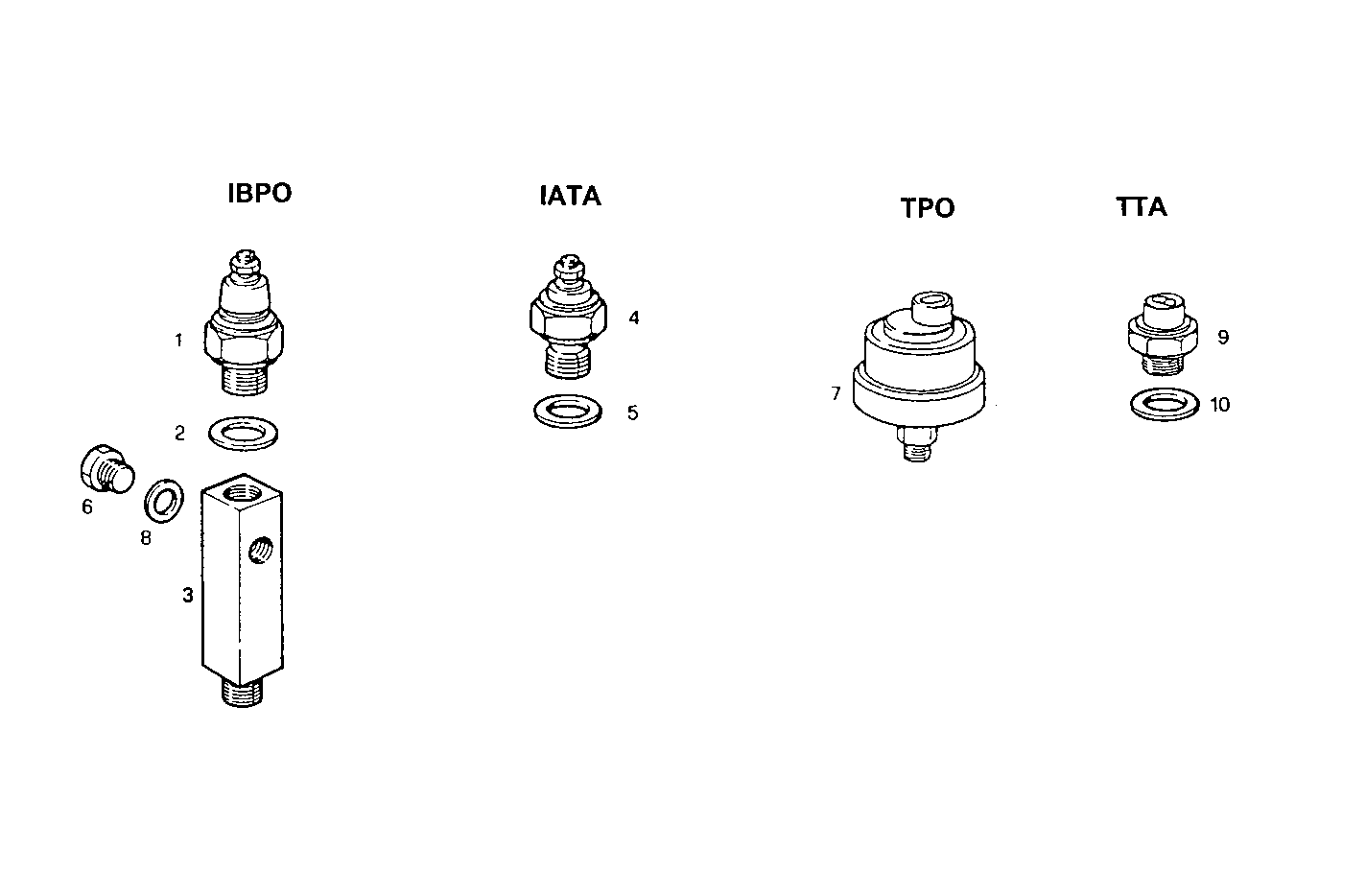

A38570004 SENDER UNITS ALARMS INSTRUMENT - 12/24V
Item | Part number | Description |
---|---|---|
1 | 8104140 | TRANSMITTER IBPO |
2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
3 | 4929576 | PIPE SOCKET |
4 | 8104141 | TRANSMITTER IATA |
5 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
6 | 16992111 | THREADED PLUG M10X1 |
7 | 8100563 | TRANSMITTER TPO |
8 | 4858606 | GASKET Ø10X14X1 MM |
9 | 4933019 | TRANSMITTER TTA - TTO |
10 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
