8210i03.00

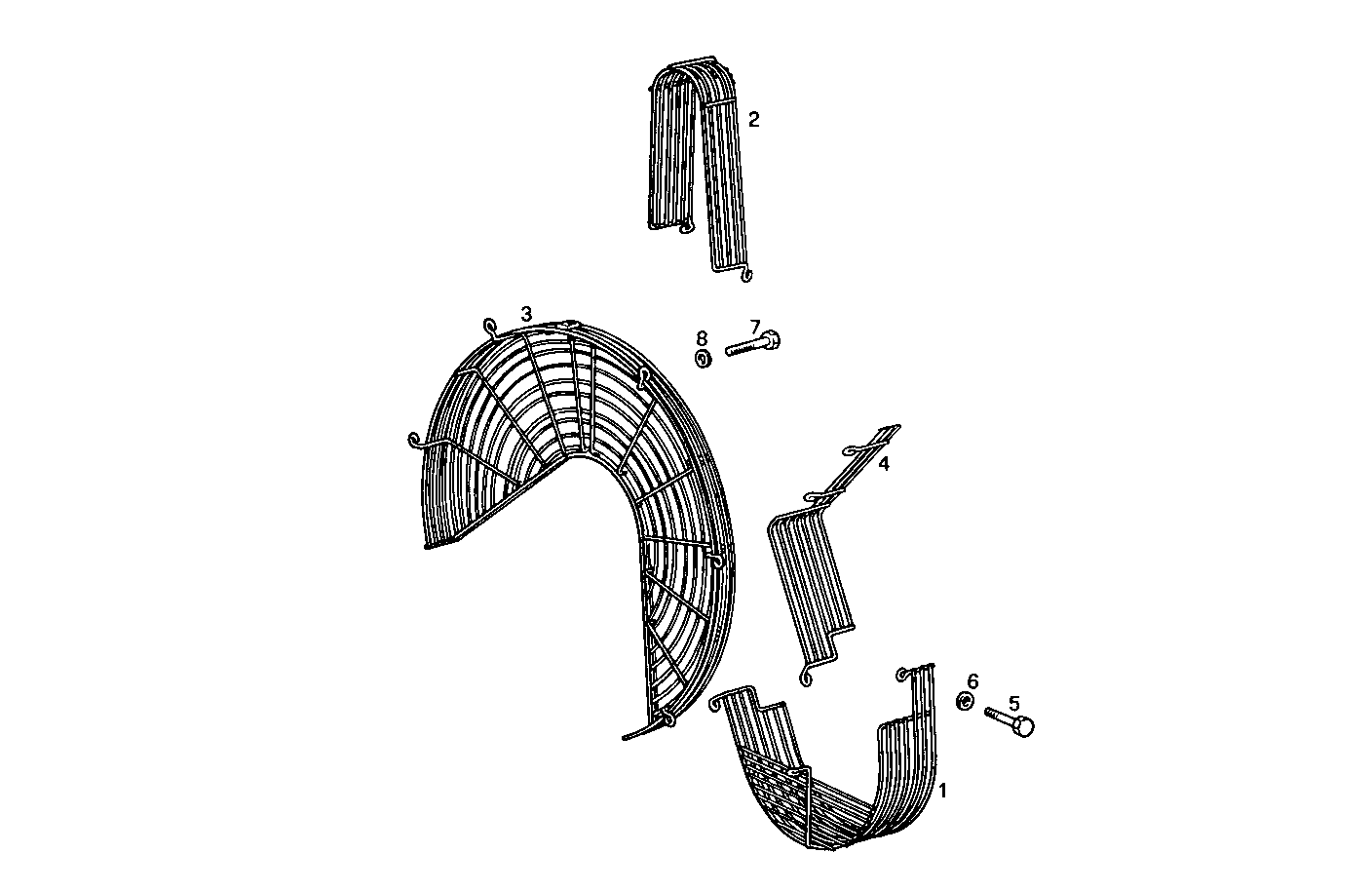

A48010004 GUARD - for fan and belts

Iveco/FPT GUARD

Item Part number Description
1 8102956 PROTECTION
2 8102957 PROTECTION
3 8102958 PROTECTION
4 8102959 PROTECTION
5 15970621 SCREW M10X1,25X22
6 11190679 SPRING WASHER Ø10X27 MM SP=2,5
7 10902221 HEXAGON BOLT M6X16 MM
8 11194779 WASHER Ø6X18X1,4 MM
