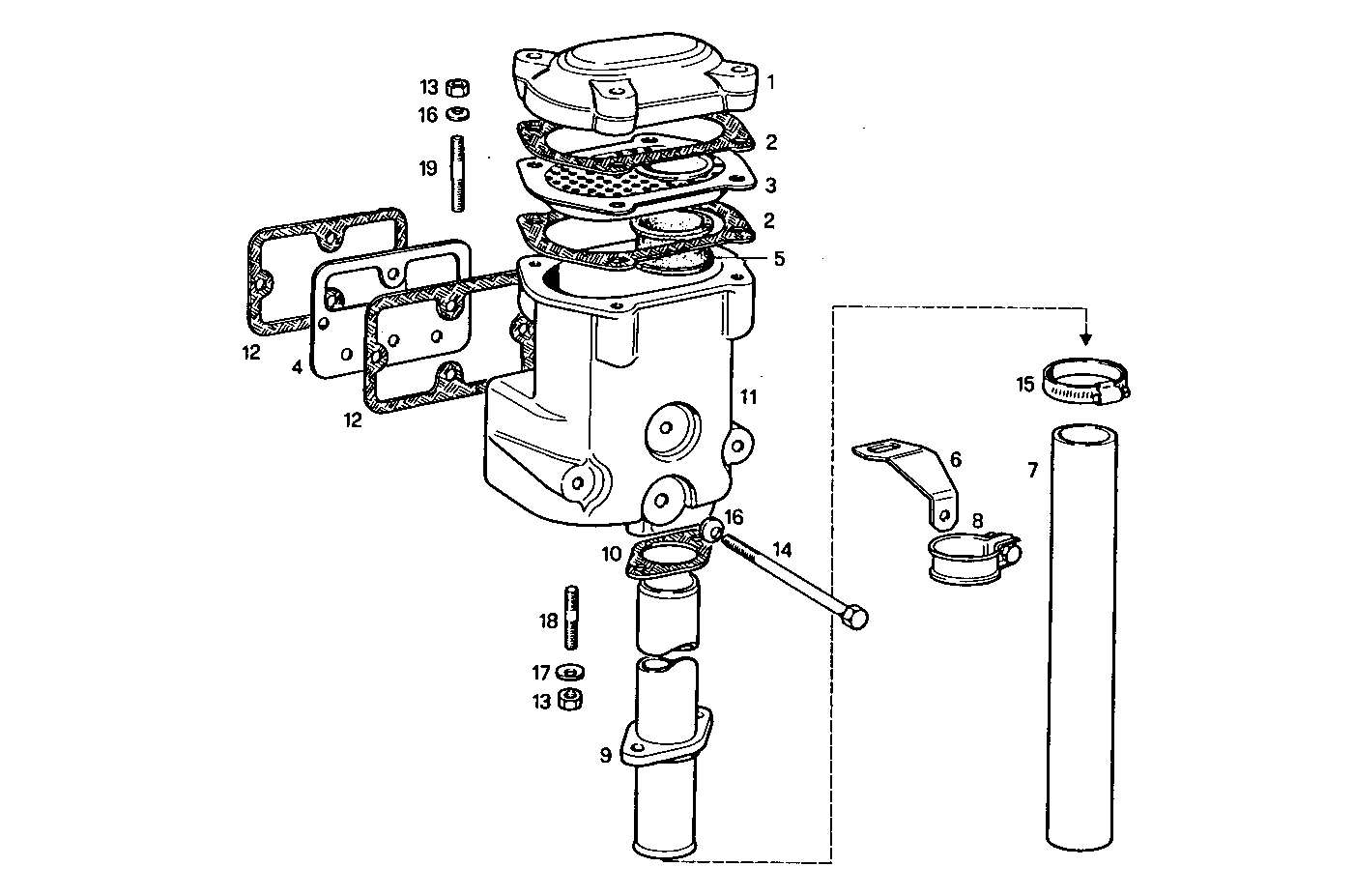

0450.010 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 4638337 | COVER |
2 | 98424044 | FLAT ENGINE GASKET |
3 | 4638635 | FILTER |
4 | 4643288 | SIDE COVER |
5 | 4638675 | RUBBER BUSH |
6 | 4668861 | FASTENING BRACKET |
7 | 98462074 | RUBBER SLEEVE |
8 | 4668862 | CLIP |
9 | 4638619 | BREATHER PIPE |
10 | 4863527 | FLAT ENGINE GASKET |
11 | 4638335 | BREATHER |
12 | 4863957 | FLAT ENGINE GASKET [up to 438825] |
13 | 17037931 | HEXAGON NUT M8X1,25 |
14 | 16045230 | HEXAGON BOLT |
15 | 17764792 | HOSE CLIP Ø32-50 MM |
16 | 17089874 | WASHER Ø8X22 MM |
17 | 17089574 | WASHER Ø8X16 MM |
18 | 12354521 | STUD M8X16X22 |
19 | 13543821 | STUD M8X16X40 |
