8210i03.00A500

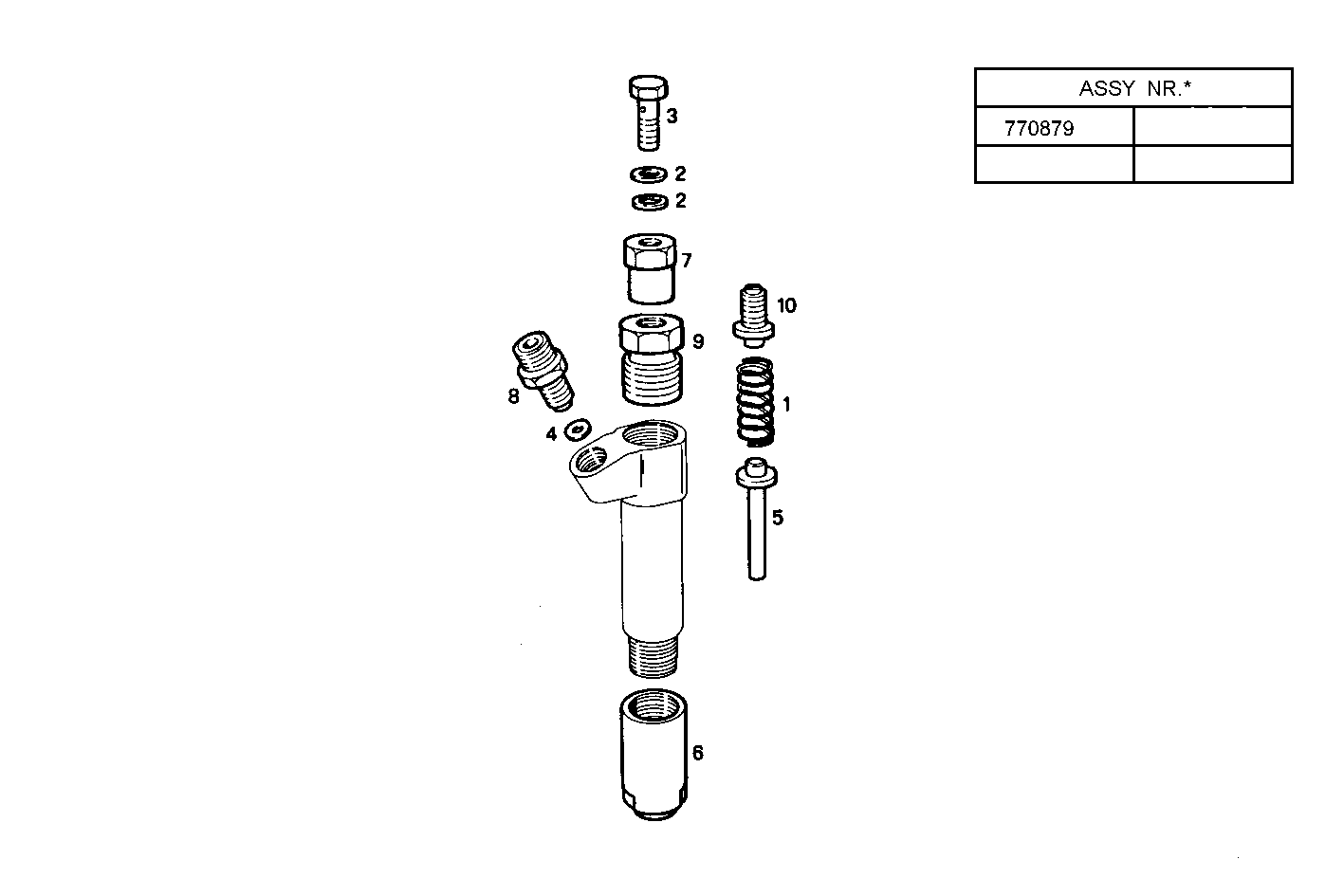

1430.009 NOZZLE HOLDER (COMPONENTS)
Item | Part number | Description |
---|---|---|
1 | 772038 | SPRING |
2 | 9982656 | WASHER |
3 | 9009403 | SCREW CONNECTOR |
4 | 1290474 | GASKET |
5 | 9930866 | ROD |
6 | 9930867 | CONNECTOR SLEEVE |
7 | 9930868 | THREADED UNION |
8 | 9930869 | THREADED UNION |
9 | 9930870 | ADJUSTING SCREW |
10 | 9930871 | DRAIN SCREW |
