8210i03.00A500

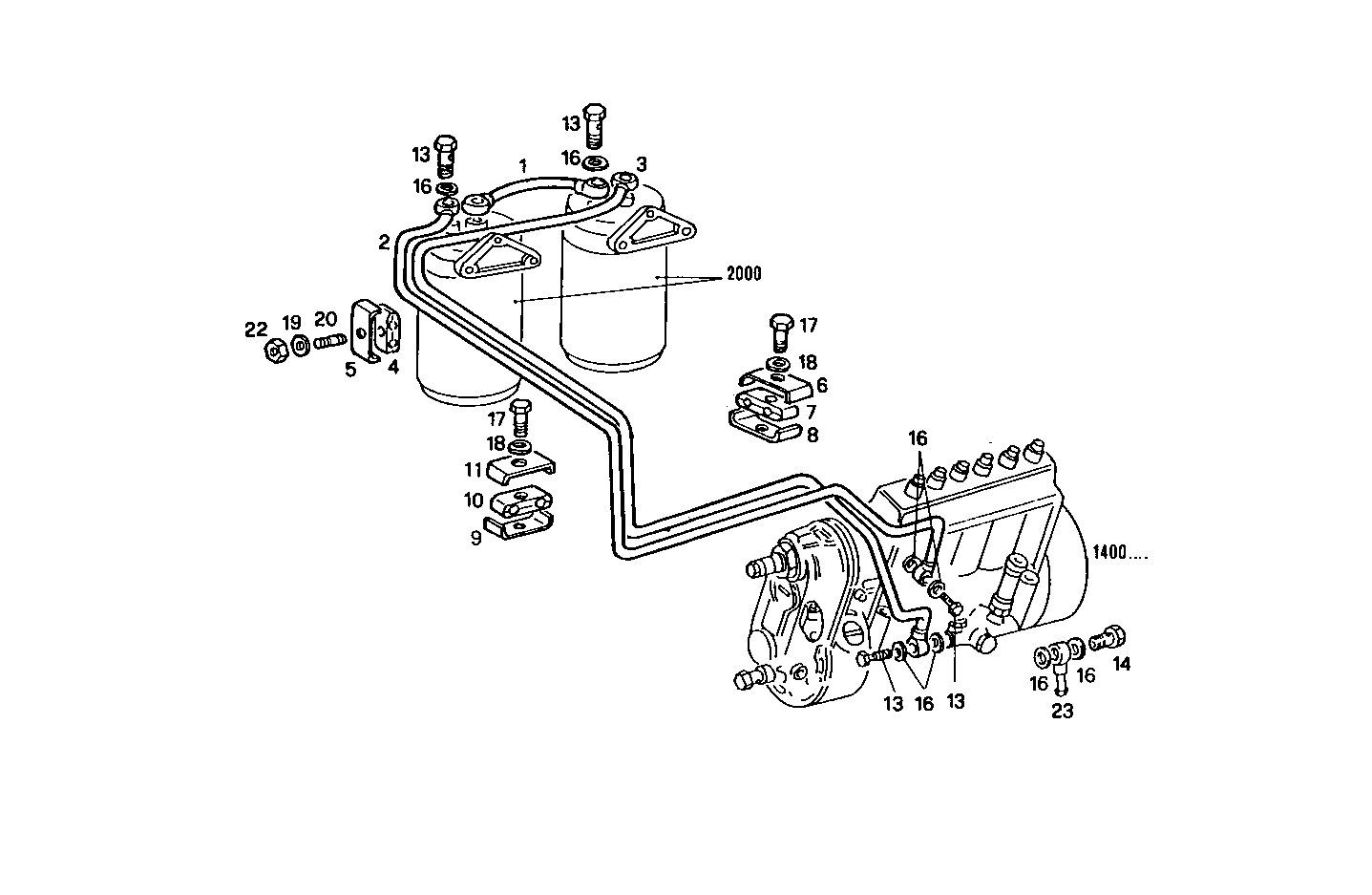

2030.013 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 98479434 FUEL LINE
2 98479423 FUEL LINE
3 98479424 FUEL LINE
4 4651774 RUBBER PAD
5 4651773 FASTENING BRACKET
6 4644288 CLIP
7 4871771 RUBBER LUG
8 4644289 CLIP
9 4649540 RETAINER
10 4761451 RUBBER PAD
11 4641551 CLAMP
13 10184311 SCREW CONNECTOR M14X1,5
14 4864083 SCREW CONNECTOR M14X1,5X30 MM
16 98474308 SEAL GASKET Ø14X22 MM
17 16603824 SCREW M6X25
18 17088474 WASHER Ø6X12 MM
19 17089574 WASHER Ø8X16 MM
20 13517221 STUD M8X12X30 MM
22 17037931 HEXAGON NUT M8X1,25
23 8030222 PIPE SOCKET D [from 01-09-02]
